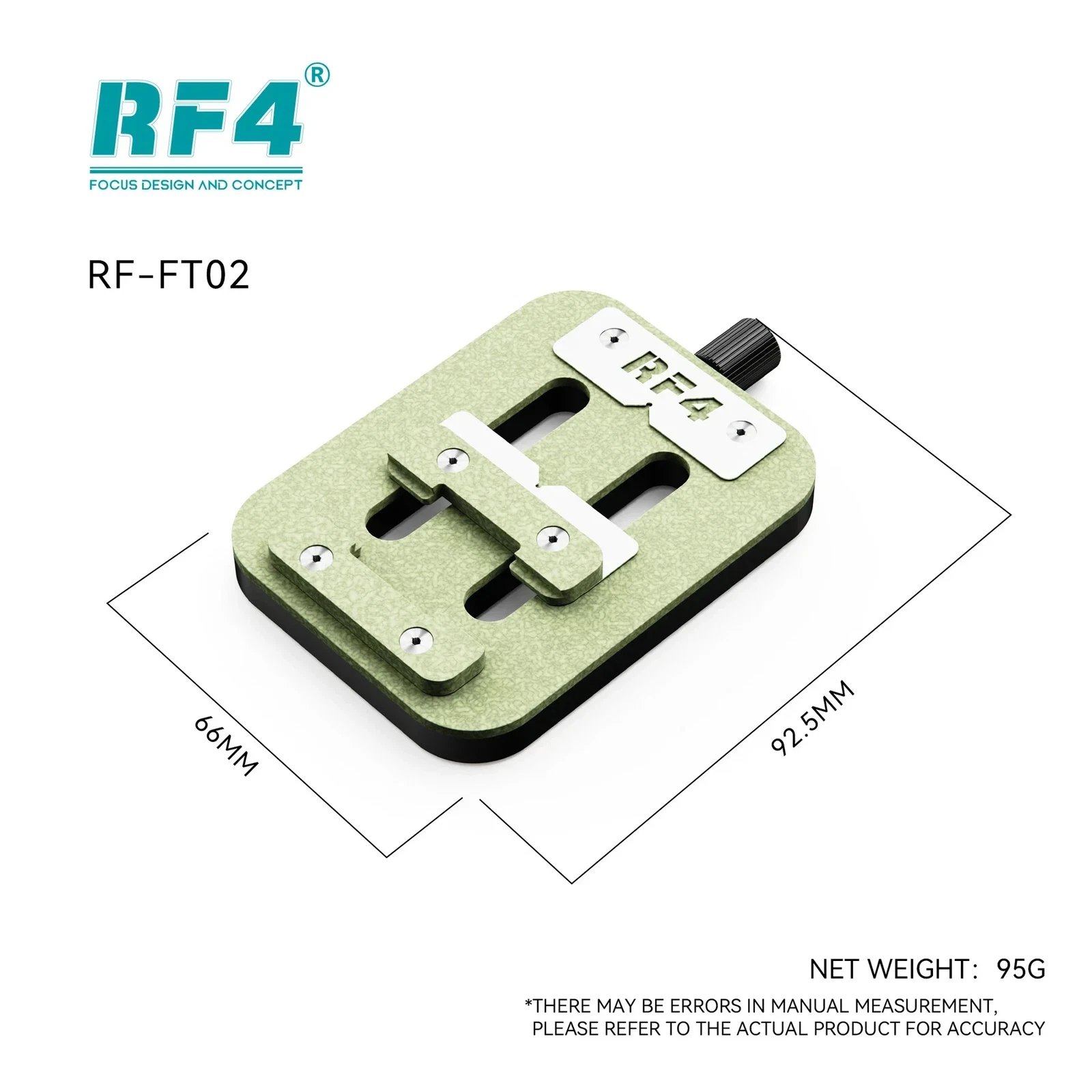

RF4 RF-FT02 Mobile Chip Motherboard Fixture
The RF4 RF-FT02 Mobile Chip Motherboard Fixture is a multi-functional mini motherboard chip repair fixture engineered for precision and stability in mobile phone repair tasks. Its compact and practical design incorporates bidirectional movement, making it highly suitable for securely holding chip CPU motherboards during soldering, desoldering, and other repair operations. The fixture features a motherboard suspension function that enhances the stability and durability of the motherboard by preventing heat loss caused by thermal conduction, thereby offering fast welding protection to safeguard delicate components. This tool is particularly valuable for ECU, and PCB repair applications.
Features:
- Compact and Delicate Design Small form factor with two-way mobile functionality, allowing flexible positioning during repair tasks.
- Motherboard Suspension Function Ensures enhanced stability and durability by suspending the motherboard, reducing the risk of damage during soldering.
- Internal Bevel Design Provides a stronger grip on the motherboard, ensuring secure placement and minimizing slippage.
- Heat Loss Prevention The suspension mechanism effectively prevents heat loss caused by thermal conduction, offering fast welding protection for the motherboard.
Specifications:
| Brand | RF4 |
|---|---|
| Model | RF-FT02 |
| Material | High-temperature resistant alloy |
| Movement Type | Bidirectional sliding |
| Suspension Height | Adjustable (~5–10 mm lift) |
| Board Thickness Supported | Up to 2.0 mm |
Applications:
- Smartphone & Tablet Logic Boards: Ideal for IC rework on Android/iOS motherboards.
- Automotive ECU Repair: Clamps ECU PCBs for soldering of microcontrollers and power ICs.
- BGA Soldering/Desoldering: Stabilizes boards during hot‑air or IR BGA reflow processes.
- General PCB Rework: Suitable for various small‑format PCBs in consumer electronics.
Package Include:
- 1 x RF4 RF-FT02 Mobile Chip Motherboard Fixture.
