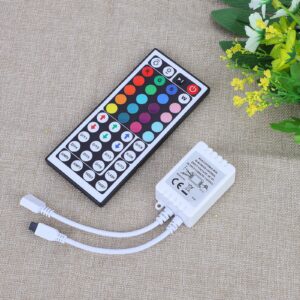

RGB LED Controller 12V with 44 Key IR Remote Controller V2

RGB LED Controller 12V with 44 Key IR Remote Controller

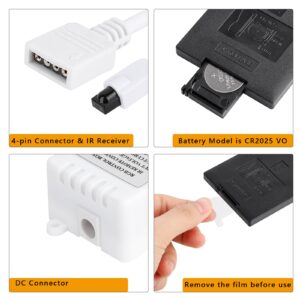

A module that allows you to control the brightness of a monochrome panel with LED backlight and brightness and LED RGB color panel. It has lots of preset functions. Equipped with a 4-pin screw terminal power connector Jack DC IN. The controller is supplied with an IR remote control.

Functions of remote control

• ON / OFF – switching on and off
• PAUSE / PLAY – start and stop sequence
• SPEED – / SPEED + – speed management sequence
• 20 buttons with fixed colors:
  • Red
  • Green
  • Blue
  • White
  • + After the 4 shades of each of these colors
• Buttons to control the degree of illumination
• AUTO – display mode automatic change
• FLASH – strobe function for white color
• JUMP3 – activator RGB color
• JUMP7 – activator colors: white, blue, yellow, green, purple, blue, red
• FADE3 – activator of RGB colors with a smooth transition
• FLASH – strobe function for the following colors: white, red, green, yellow, blue, purple, turquoise
• FADE7 – launching crossfading the following colors: red, yellow, green, cyan, blue, purple, white
• 6 DIY buttons for defining custom colors and storing them in memory
• 6 buttons to change the intensity of RGB colors

Features:

• 16 colors, 5 light patterns: Static/Flash/Strobe/Fade-change/RGB Smooth-change.
• 16-classes Static Mode Dim Control
• 16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change.
• Connecting mode: common anode
• Material: Plastic
• Output: Three CMOS Drain-open Output

Specifications

• Input voltage: 12 V DC
• Output: 3 channels
• Connecting mode: Common Anode
• the maximum drive current of 2 A for each channel
• Operating temperature: -20 °C to 60 °C
• Dimensions of RGB Control Box: 50 x 35 x 22 mm
• Dimensions of Remote: 125 x 55 x 8 mm

Package Includes:

1 x Remote controller
1 x Control box

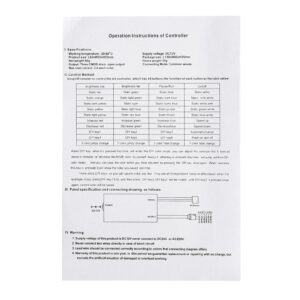

1 x Instruction manual
