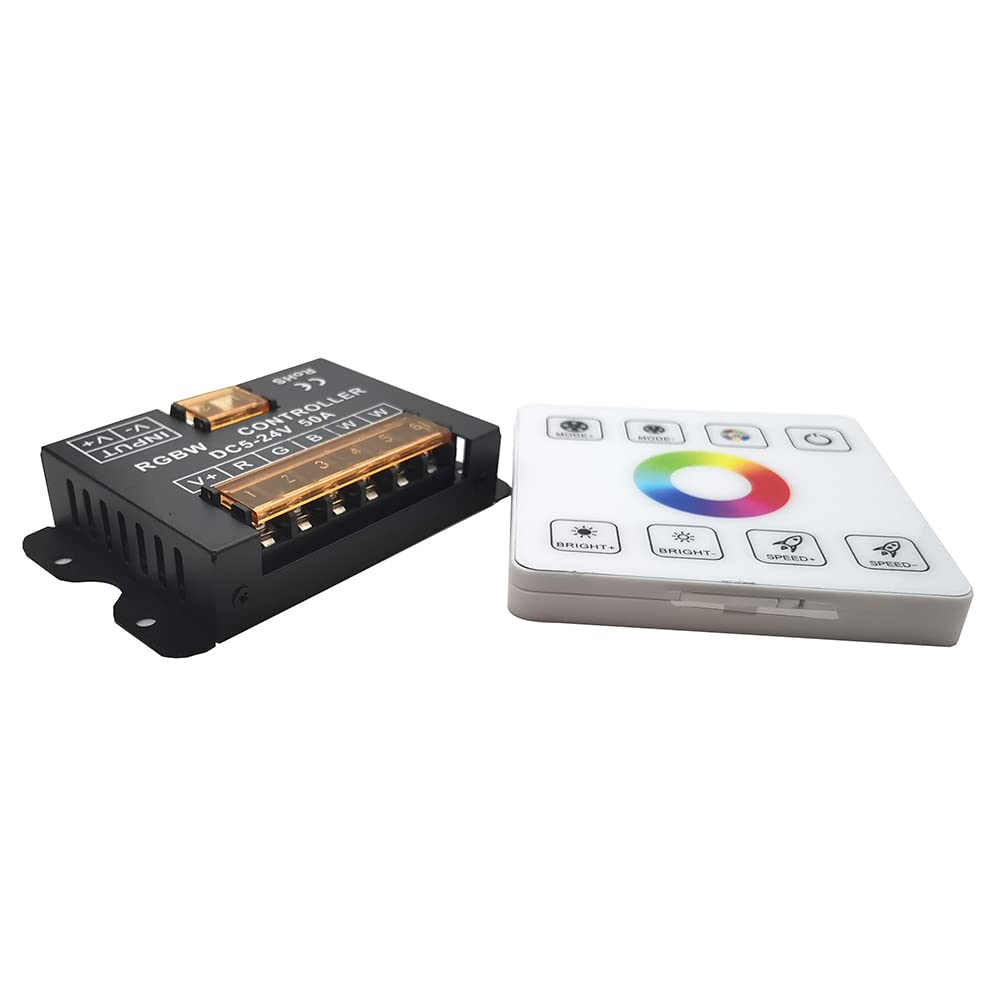

RGBWC LED Controller DC 5-24V 50A with Touch Switch Remote Control
The RGBWC LED Controller is a high-power lighting control unit designed to manage it (Red, Green, Blue, White, Cool White) LED strips operating from DC 5V to 24V. With a high 50A output capacity, it is suitable for large or high-density LED installations.
This controller supports smooth color transitions, adjustable brightness levels, and multiple dynamic lighting effects. The included touch switch remote control provides intuitive and responsive operation, making it easy to select colors, adjust modes, and control lighting scenes. Ideal for decorative, architectural, and commercial lighting applications, this controller ensures stable performance and flexible LED control.
Features:
- Supports RGBWC LED strip control.
- Touch switch remote with sensitive touch interface.
- Smooth color mixing and dimming control.
- Multiple lighting modes and effects.
- Stable and reliable output performance.
- Suitable for long LED strip installations.
- Easy installation and user-friendly operation.
Specifications:
| Parameter | Value |
|---|---|
| Input Voltage: | DC 5–24V |
| Maximum Output Current: | 50A |
| Control Method: | Touch Switch Remote Control |
| Output Channels: | 5 Channels |
| Signal Type: | PWM |
| Mounting Type: | Inline Controller |
| Application Type: | LED Strip Lighting Control |

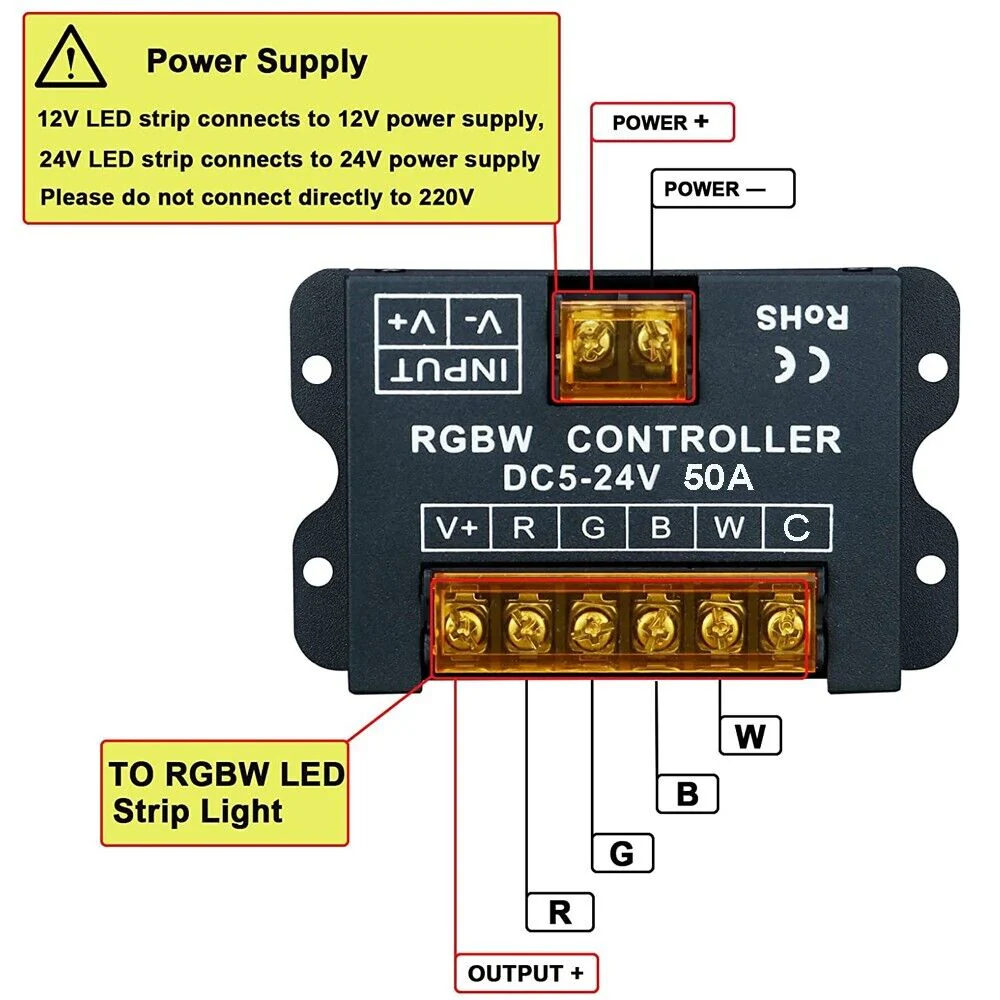

Pinout:
| Terminal | Function |
|---|---|
| V+ | Power Positive |
| R | Red Channel |
| G | Green Channel |
| B | Blue Channel |
| W | Warm White |
| C | Cool White |
| V- | Power Negative |
Applications:
- RGBWC LED strip lighting.
- Architectural and decorative lighting.
- Home and commercial lighting systems.
- Shop displays and signage.
- Stage and ambient lighting.
- Smart lighting installations.
Packages:
- 1x RGBWC LED Controller.
- 1x Touch Switch Remote Control.
- 1x User Manual.
