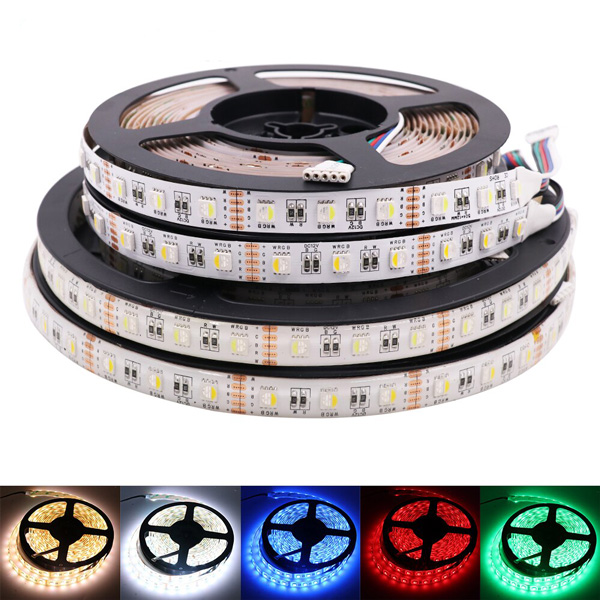

The new forms of and RGBWW-LED-stripes comes with 4in1-LEDs. These LEDs combine all needed LED-chips RGB and white in a single LED-housing. In constrast to conventional versions with alternating RGB and White LEDs, these 4in1-versions with 60 LED/m offer an uniform mixed light even in very short distances and much more brightness for color effects.
TECHNICAL DATA
Color Available | RGBWW |
Cutting | Every 6pcs LED chip can be cutted |
Input Voltage | 24V DC |
LED Brand | Epistar |
LED power | 4 in one 5050SMD |
LED QTY | 60pcs LED per meter |
LED Type | 5050SMD |
Lens angle | 120° |
Lifespan | >50,000 hours |
LM / LED | 18-20LM each LED |
LM/W | 80-90LM/W |
Lumen per meter | 1000-1100LM/meter |
Operating temperature | -15℃ to +40℃ |
Packing | 5 meters per roll |
PCB Width | Double side, white color 8MM PCB |
Power factory | >0.9 |
Power per meter | 14.4W Per meter |
Size | 10*5000MM |
Warranty | 1 to 3 years |
Waterproof rate | Non-waterproof Bare plate IP20 with 3M adhesive paper |
