SMD PCB Solder Right Angle Female Type-A USB Connector

SMD PCB Solder Right Angle Female Type-A USB Connector

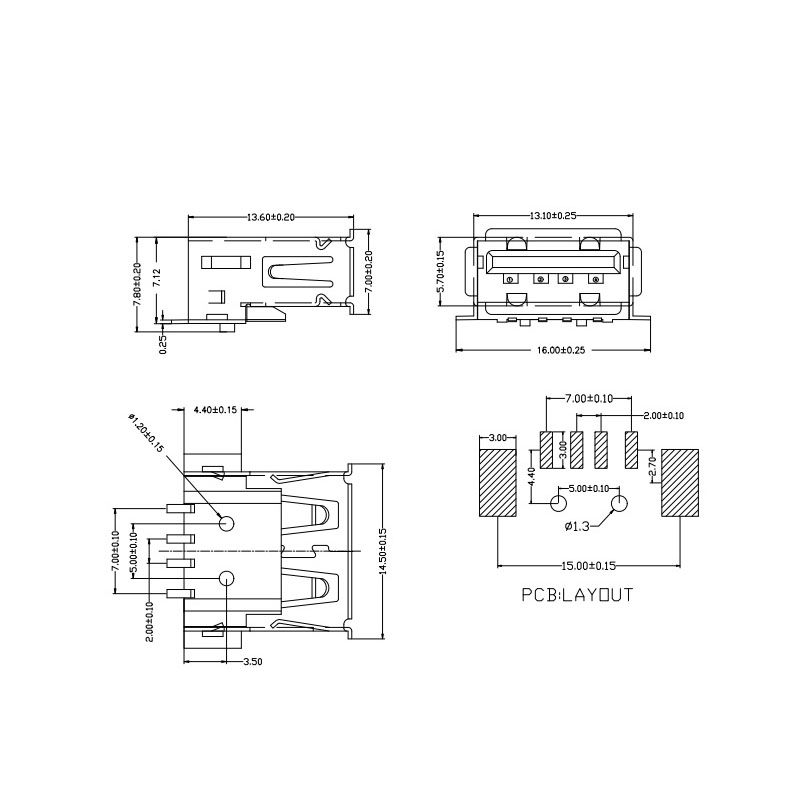

The SMD PCB Solder Right Angle Female Type-A USB Connector is a compact, surface-mount USB port designed for printed circuit boards (PCBs). Its right-angle design allows for space-efficient placement, making it ideal for applications requiring horizontal USB connections. It provides reliable power and data transfer for embedded systems, consumer electronics, and custom PCB designs.

Features:

• Compact & Space-Saving where Designed for surface mounting, reducing PCB footprint.
• Reliable Connectivity where Ensures stable power and data transmission.
• Durable Metal Housing where Provides protection and EMI shielding for stable performance.
• Right-Angle Design where Saves space and enables low-profile mounting on PCBs.
• Wide Compatibility where Supports USB 2.0 for various applications.
• Strong Soldering Pads where Ensures secure attachment to PCB for a firm connection.
• Versatile Use where Ideal for embedded systems, charging circuits, and custom electronic projects.

Specifications:

• Connector Mounting: Surface Mount
• Connector Type: USB 2.0 Type A
• Contact Material: Phosphor Bronze
• Contact Plating: Silver
• Contact Orientation: Right Angle
• Gender: Female
• Pin Configuration: Standard USB pinout (VCC, D-, D+, GND)
• Operating Voltage:  5V (USB standard)
• Current Rating: 1A – 1.5A
• Temperature Range: -25°C to 85°C
• USB Version: USB 2.0
• Voltage Rating: 30V AC/DC
• Withstanding Voltage: 500V AC/ Minute
• Contact Resistance: 30mQ Max.

Applications:

• Embedded Systems & IoT Devices.
• Consumer Electronics.
• PCB Prototyping & Development Boards.
• USB Hubs & Power Modules.
• Computer Peripherals.
• Medical & Industrial Equipment.
• Automotive Electronics.
