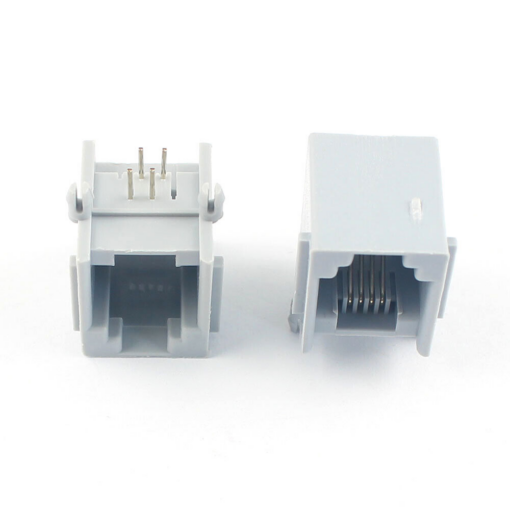

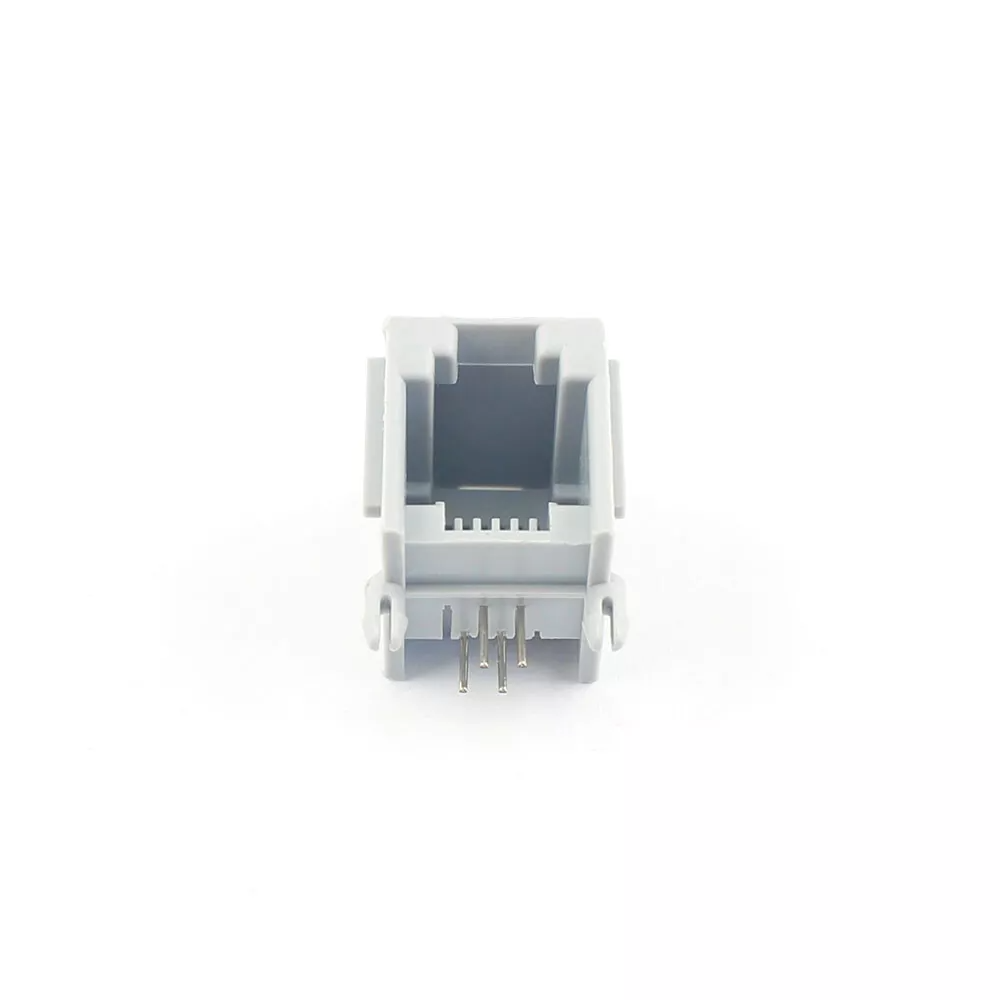

RJ11 Female PCB Socket 4 Pin

RJ11 Female PCB Socket 4 Pin

The RJ11 Female PCB Socket (4 Pin) is a compact telecommunication connector designed for mounting on a Printed Circuit Board (PCB). It allows for the easy connection of RJ11 plugs, commonly used in telephone and modem applications. The 4-pin configuration is used for basic telephony and low-speed data transmission.

Features:

• Standard RJ11 Interface where Ensures stable and secure connections for telephone and data transmission.
• 4-Pin Configuration where Supports up to two telephone lines.
• Compact Design where Small footprint, ideal for space-constrained PCBs.
• Easy PCB Mounting where Through-hole or surface-mount options for seamless integration.
• Multiple Applications where Suitable for analog/digital signals and low-power communication.
• High-quality materials provide long-lasting performance.

Specifications:

• Connector Type: RJ11 Female PCB Socket
• Pin Configuration: 4-Pin
• Contact Material: Copper
• Insulation Material: High-Quality Thermoplastic
• Mounting Type: Through-Hole
• Voltage Rating: 125V AC/DC
• Current Rating: 1A /contact
• Contact Resistance: ≤ 30mΩ
• Insulation Resistance: ≥ 100MΩ @ 500V DC
• Operating Temperature: -40°C to +85°C

Applications:

• Landline Telephones.
• Modems and Routers.
• POS Systems.
• Home Automation.
• Intercom Systems.
• Alarm Systems.
• Fax Machines.
