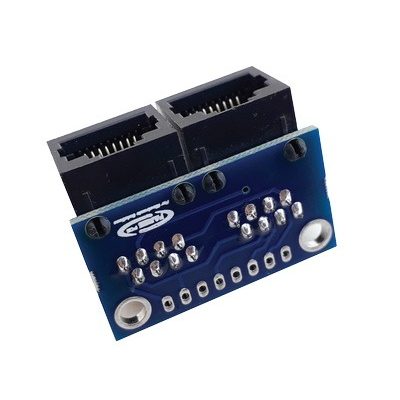

RJ45 Horizontal Side by Side 8 Pin Panel Mountable Board
The RJ45 Horizontal Side by Side 8 Pin Panel Mountable Board is a compact and versatile networking component designed for seamless integration into various electronic systems. Featuring an RJ45 (Registered Jack-45) connector, this board is specifically engineered for Ethernet networking and other data communication applications. The “horizontal side by side” configuration allows multiple ports to be mounted adjacent to each other on a panel, optimizing space while maintaining accessibility.
Features
- Horizontal Side by Side Configuration: Allows multiple RJ45 connectors to be mounted adjacent to each other.
- 8-Pin RJ45 Connector: Standard 8P8C (8 positions, 8 contacts) design, compatible with Cat5e, Cat6, and other Ethernet cables.
- Panel Mountable: Designed for easy installation in panels, device housings, or custom enclosures.
- Compact Design: Optimized for space-constrained applications.
Specifications
| Specification | Details |
|---|---|
| Connector Type | RJ45 (8P8C) |
| Mounting Type | Panel mountable |
| Orientation | Horizontal (side by side) |
| Pin Configuration | 8 pins (8 positions, 8 contacts) |
| Supported Cable Types | Cat5e, Cat6 |
| Dimensions | 46 mm x 18 mm x 16 mm |
Applications
- Networking Equipment: Ideal for routers, switches, hubs, and modems requiring multiple Ethernet ports.
- Industrial Control Systems: Used in automation and control panels for reliable data communication in harsh environments.
- Telecommunications: Suitable for telecom devices, including VoIP phones and PBX systems.
- Custom Electronics Projects: Perfect for DIY networking solutions, server racks, or embedded systems needing Ethernet connectivity.
