RJ45 to T.Block + Pin Header (Horizontal plugging) Breakout Board
This compact horizontal breakout board routes each of the eight RJ45 (8P8C) socket pins to both a screw‑clamp terminal block and a standard pin header. Designed for solderless breadboard and panel‑mount applications, it provides clearly labeled, tool‑free access to Ethernet or data signals. The PCB’s two Ø 3.5 mm mounting holes and 29 × 29 × 15 mm dimensions make it ideal for clean installation in test rigs, custom enclosures, or prototyping setups.
Features

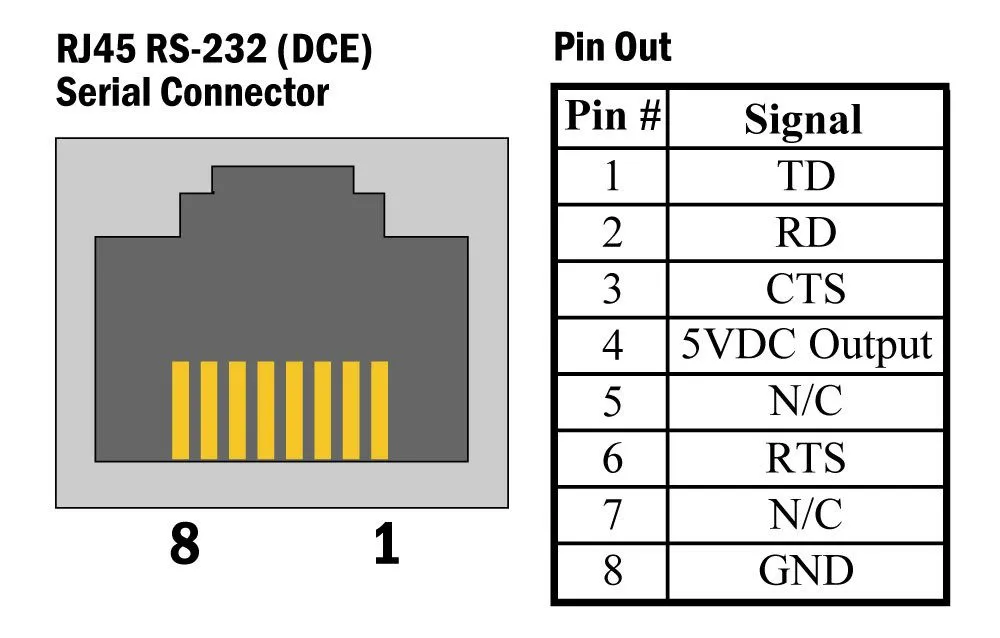

- RJ45 pins routed to both 2.54 mm‑pitch pin headers and 3.5 mm‑pitch screw‑clamp terminals.
- All eight channels labeled 1 through 8 for effortless wiring and verification.
- Pin header pitch: 2.54 mm for breadboard and perfboard compatibility.
- Screw‑clamp terminal pitch: 3.5 mm for secure wire connections.
- Two Ø 3.5 mm mounting holes for robust panel or chassis attachment.
- Compact 29 × 29 × 15 mm footprint that fits tight spaces.
Specifications
| Parameter | Value |
|---|---|
| RJ45 Connector: | 8P8C horizontal socket |
| Pin Header: | 8‑pin, 2.54 mm pitch |
| Screw Terminals: | 8‑position, 3.5 mm pitch |
| Mounting Holes: | 2 × Ø 3.5 mm |
| PCB Dimensions: | 29 mm × 29 mm × 15 mm |
| Labeling: | Pins 1–8 silkscreened |
Applications
- Breadboard‑based Ethernet or data signal prototyping.
- Panel‑mount feed‑through for network or serial lines.
- Test harnesses and lab equipment requiring quick connector swaps.
- Custom enclosures and control panels needing clean RJ45 access.
Package Contents
- 1× RJ45 to T.Block + Pin Header (Horizontal plugging) Breakout Board.
