RM1V Relay Module 1 Channel 5V/12V/24V

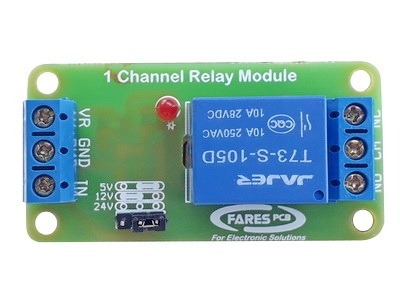

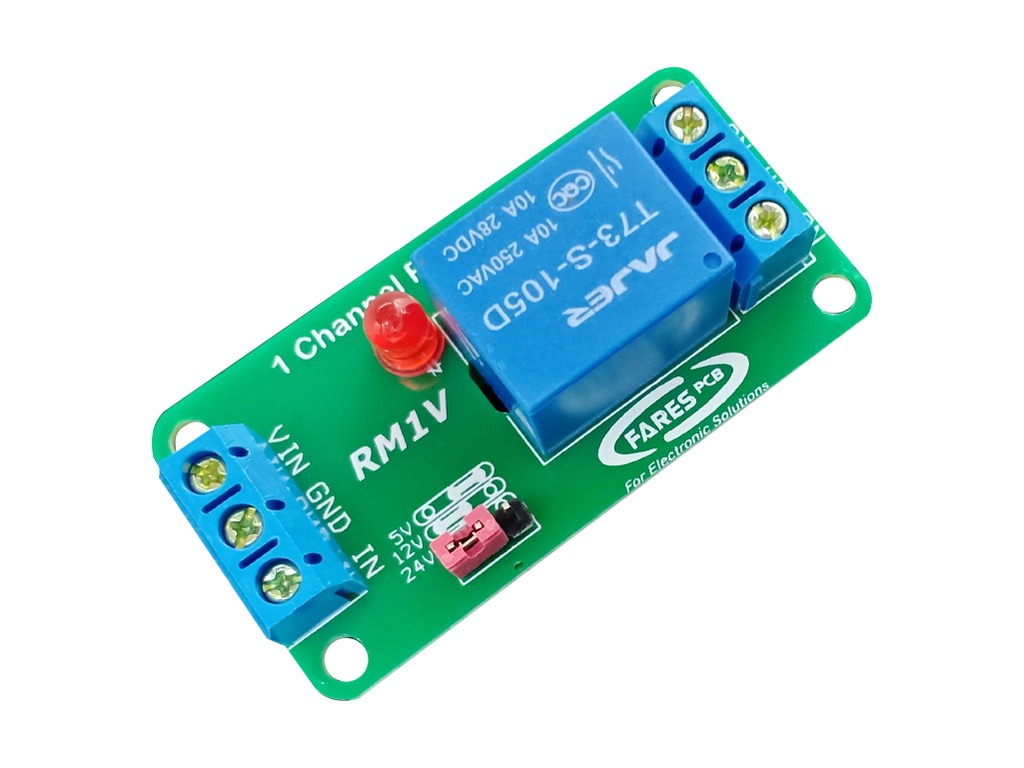

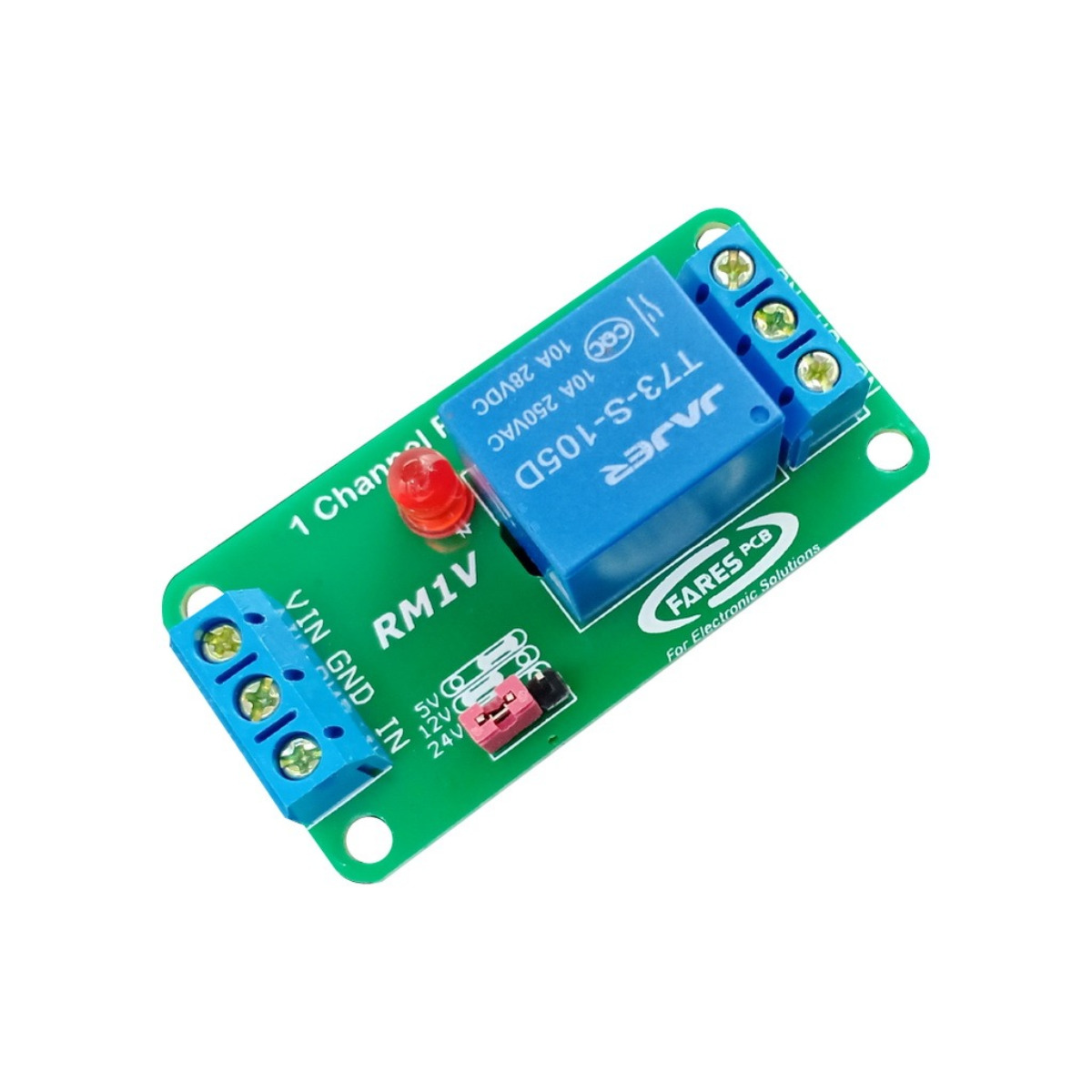

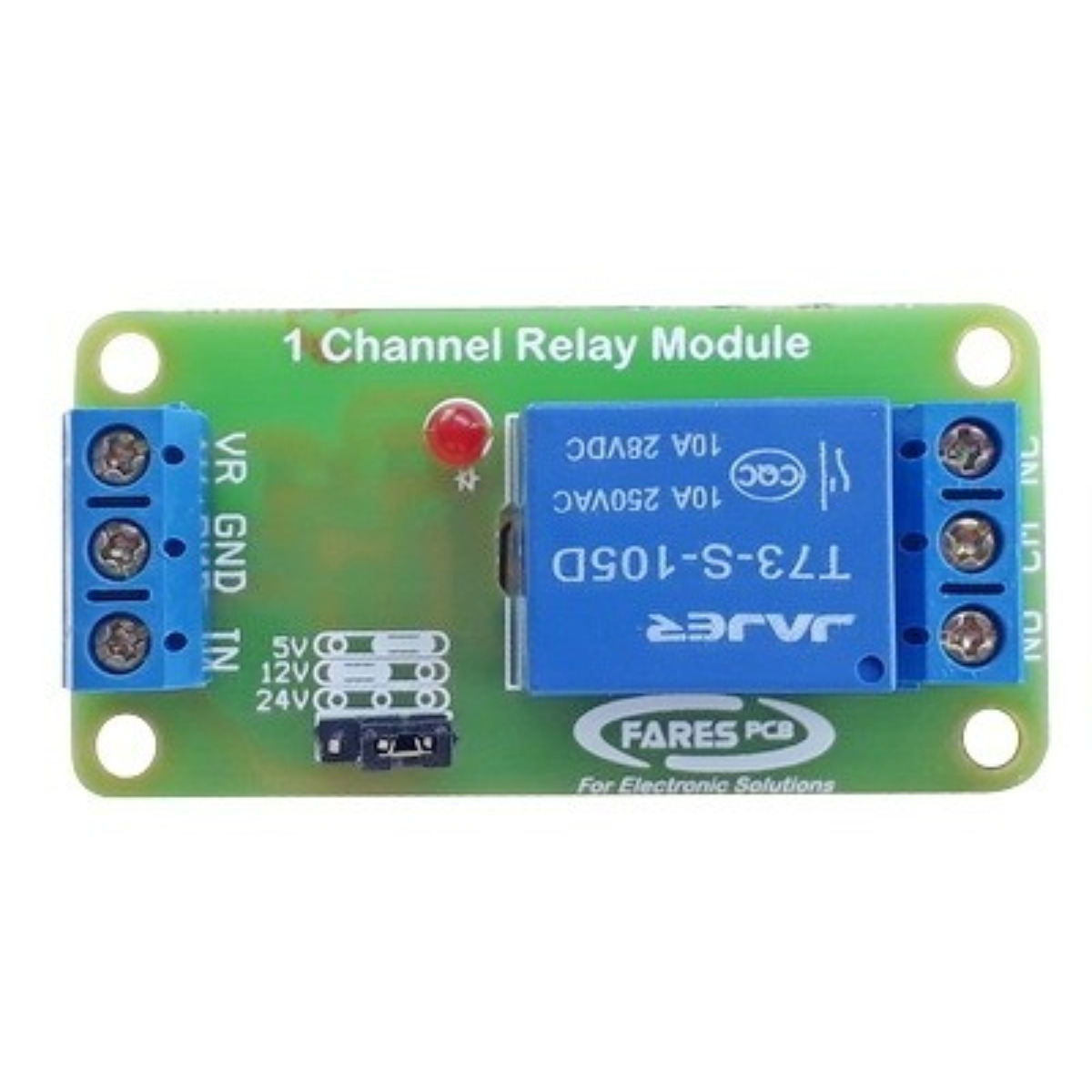

The Relay Module 1 Channel RM1V is a versatile driver board that interfaces directly with microcontrollers or any 5–24 V logic source to control AC or DC loads up to 10 A. It features screw‑clamp terminals for power (VIN, GND) and relay outputs (COM, NO, NC), a jumper‑selectable power rail (5 V, 12 V, or 24 V), and an LED status indicator to show relay activation. Housed on a durable PCB measuring 56 × 29 × 17 mm, it’s perfectly suited for automation, lighting, and motor control applications.
Features
- Single SPDT relay rated for 10 A resistive loads.
- Jumper‑selectable supply voltage: 5 V, 12 V, or 24 V DC.
- TTL‑compatible control input (5–24 V logic).
- LED indicator displays relay activation status.
- Screw‑clamp terminals for secure power and load connections.
- Compact 56 × 29 × 17 mm PCB with mounting holes.
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 5 V, 12 V, or 24 V DC (jumper‑selectable) |
| Control Input Range | 5 V–24 V logic (TTL‑compatible) |
| Relay Contact Rating | 10 A @ resistive load |
| Relay Type | SPDT (COM, NO, NC) |
| Minimum Supply Current | 250 mA |
| Indicator | Relay status LED |
| Connection | Screw‑clamp terminals (VIN, GND, COM, NO, NC) |
| PCB Dimensions | 56 mm × 29 mm × 17 mm |
PINOUT
Applications
- Home automation and smart lighting control.
- Garden and irrigation pump switching.
- Industrial machinery and motor control.
- Security and access control systems.
Package Contents
- 1x RM1V Relay Module 1 Channel 5 V/12 V/24 V.
