RM8U USB Controlled Relay Module 8-Channel

RM8U USB Controlled Relay Module 8-Channel

RM8U is an 8-channel USB-controlled relay module. It can be used to control electrical devices remotely from a PC over a USB port such as lamps, motors, and locks. RM8U features a wide operating voltage range (9-40V) and supports serial communication baud rate speeds starting from 2400 up to 115200 bps. RM8U module is well protected, filtered, and fully isolated.

Features

• Supports Windows XP, 7, 10, and 11.
• Supports 8 relay outputs.
• Wide operating voltage range: 9~40 DCV.
• Control: Serial communication.
• Driver: CH340.
• Supported baud rates: 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 76800, and 115200.
• Interface: USB type B connector.
• Simple control protocol: Just two-character commands.
• All outputs are optically isolated.
• Both normally open and normally close relay contacts are available.
• Reverse polarity protection.
• On-board DC power filter.
• Power LED indicator.
• Serial communication LED status.
• LED indicator for each relay.
• Mounting: Four (Ø 3.5mm) mounting holes for easy installation.
• Dimensions: 214 X 55 X 21mm.

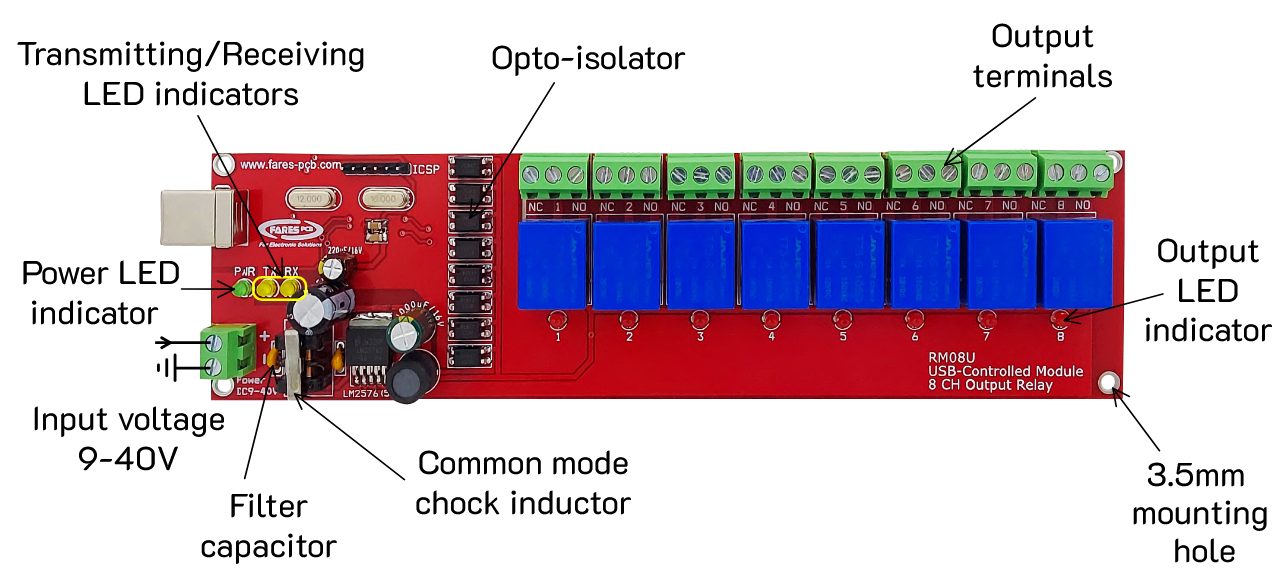

PINOUT

Specifications

Applications

• PC-based automation and test rigs for switching lamps, motors, solenoids and small actuators.
• Home and building control systems requiring isolated relay outputs driven from a computer.
• Remote switching for lab equipment, bench setups, and field prototypes.
• Integration with microcontroller systems via serial bridge for logging, timed switching or sequencing.
• Replacement or upgrade in control panels where USB control and optical isolation are required.

Package Contents

• 1x RM8U USB Controlled Relay Module 8-Channel.
