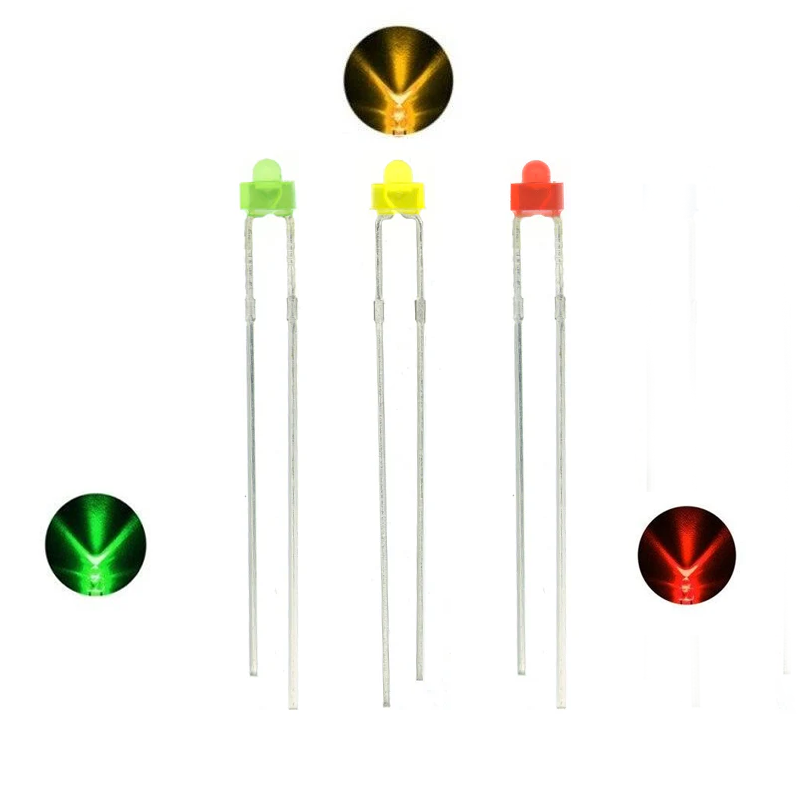

Rocket LED 1.8mm 2Pin
Rocket LED 1.8mm 2Pin available in Green, Red, and Yellow colors are small, high-brightness indicator LEDs designed with a transparent rocket-shaped lens that focuses light effectively for clear visual signaling. These LEDs operate typically at low forward voltages around 2.0-2.2V for red and yellow, and slightly higher for green, with a forward current of about 20mA. Available in vivid colors, they provide narrow viewing angles (around 25°–30°) for directional lighting and are commonly used in electronic indicators, control panels, hobby circuits, and decorative lighting. Their compact 1.8mm size and two-pin through-hole design make them easy to mount on circuit boards, suitable for various low-voltage applications requiring bright and precise illumination.
Features
- Rocket-shaped lens for focused and bright light output.
- Available in vivid green, red, and yellow colors.
- Low power consumption with a forward voltage typically between 1.8V to 2.2V.
- Forward current around 20mA for efficient illumination.
- Compact and small 1.8mm size fits tight spaces and fine electronic projects.
- Narrow viewing angle of approximately 25° to 30° for directional lighting.
- Two-pin through-hole mounting for easy and secure circuit board installation.
- Durable epoxy resin body ensuring robustness and longevity.
- Suitable for electronic indicators, signal lights, hobby electronics, display panels, and automotive lighting.
- Operates reliably in low-voltage circuits and maintains good performance under varying temperatures (-30°C to +85°C operating range).
Specifications
| Parameter | Green | Red | Yellow |
| LED Shape | Nipple / Rocket | Nipple / Rocket | Nipple / Rocket |
| LED Lens Color | Transparent | Transparent | Transparent |
| Diameter | 1.8mm | 1.8mm | 1.8mm |
| Number of Pins | 2 Pin (Anode & Cathode) | 2 Pin (Anode & Cathode) | 2 Pin (Anode & Cathode) |
| Forward Voltage (Vf) | ~2.0–2.2V | 1.8 – 2.2V | 2.0 – 2.2V |
| Forward Current (If) | 20mA | 20mA | 20mA |
| Wavelength | ~525-530nm | 620–630nm | 590nm |
| Luminous Intensity (mcd) | 800–1500 mcd | 800–1500 mcd | Not explicitly specified, generally ~700-1200 mcd |
| Viewing Angle | ~25°–30° | 25°–30° | 20°–30° |
| Polarity | Long Lead – Anode (+) | Long Lead – Anode (+) | Long Lead – Anode (+) |
| Operating Temperature | -30°C to +85°C | -30°C to +85°C | -40°C to +85°C |
| Storage Temperature | -40°C to +100°C | -40°C to +100°C | -40°C to +85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Material | Epoxy Resin Body | Epoxy Resin Body | Epoxy Resin Body |
Dimensions
Applications
- Electronic indicators and signal lights on devices.
- Status and power indication on printed circuit boards (PCBs).
- Display panels and control system indicators.
- DIY and hobby electronics projects requiring bright, focused LEDs.
- Decorative lighting and automotive lighting signals.
- Use in televisions, monitors, telephones, and computer equipment for status indication.
- Small device illumination where compact size and directional light are needed.
- Long-lasting, low power consumption indicators in low-voltage circuits.
Package Contents
- 1 x Rocket LED 1.8mm 2Pin
