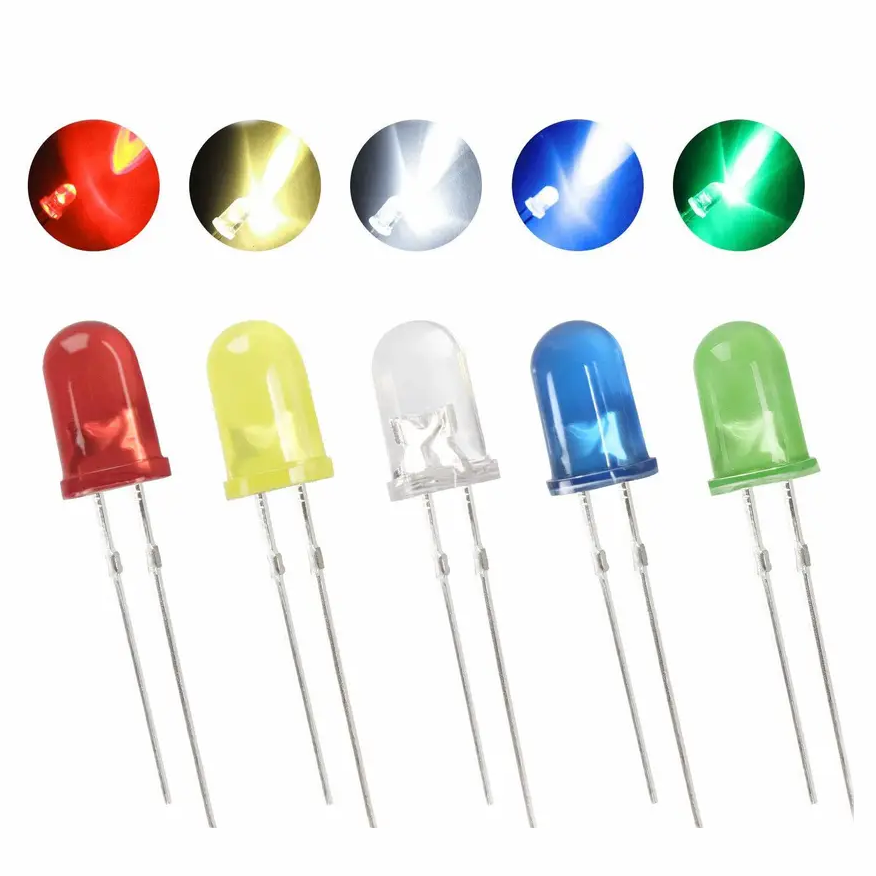

Round LED 3mm 2pin
The Round LED 3mm 2Pin series is available in Green, Red, White, Yellow, Blue, and Orange colors, offering bright, efficient, and reliable illumination for a wide range of electronic applications. These compact 3mm LEDs are perfect for indicator lights, signal displays, control panels, and DIY projects. Each LED delivers consistent brightness with low power consumption and long operational life, ensuring durability and performance. Their small round design allows easy mounting on PCBs and panels, making them ideal for both hobbyist and professional electronic circuits.
Features
- Available in multiple colors: Green, Red, White, Yellow, Blue, and Orange.
- Compact 3mm round package for easy PCB or panel mounting.
- Low power consumption with high luminous efficiency.
- Long operational life and stable performance.
- Wide viewing angle for clear visibility.
- Suitable for indicators, displays, and DIY electronic projects.
- Reliable operation with low heat generation.
- Forward voltage and brightness optimized for standard electronic circuits.
Specifications
| Specification | Green LED | Red LED | White LED | Yellow LED | Blue LED | Orange LED |
|---|---|---|---|---|---|---|
| Package Type | 3mm Round | 3mm Round | 3mm Round | 3mm Round | 3mm Round | 3mm Round |
| Forward Voltage (Vf) | 2.0 – 2.4V | 1.8 – 2.2V | 3.0 – 3.4V | 2.0 – 2.2V | 3.0 – 3.4V | 2.0 – 2.2V |
| Forward Current (If) | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA (Typical) |
| Wavelength / Color Temp. | 520–530nm | 620–630nm | 6000–6500K | 585–595nm | 460–470nm | 600–610nm |
| Viewing Angle | 25°–30° | 25°–30° | 25°–30° | 25°–30° | 25°–30° | 25°–30° |
| Luminous Intensity (mcd) | 1000–2000 mcd | 800–1500 mcd | 2000–3000 mcd | 900–1600 mcd | 1500–2500 mcd | 1000–1700 mcd |
| Polarity | Long lead – Anode (+) | Long lead – Anode (+) | Long lead – Anode (+) | Long lead – Anode (+) | Long lead – Anode (+) | Long lead – Anode (+) |
| Operating Temperature | -30°C to +85°C | -30°C to +85°C | -30°C to +85°C | -30°C to +85°C | -30°C to +85°C | -30°C to +85°C |
| Storage Temperature | -40°C to +100°C | -40°C to +100°C | -40°C to +100°C | -40°C to +100°C | -40°C to +100°C | -40°C to +100°C |
| Dimensions | 3mm Diameter, 2Pin | 3mm Diameter, 2Pin | 3mm Diameter, 2Pin | 3mm Diameter, 2Pin | 3mm Diameter, 2Pin | 3mm Diameter, 2Pin |
Dimensions
Applications
Package Contents
- 1 x Round LED 3mm 2pin
