RS16 Plum Blossom Rotary Selector Switch 1 Pole 8 Position 15mm
Elevate your electronic projects with the RS16 Plum Blossom Rotary Selector Switch. This high-performance, panel-mountable switch features a 1-pole, 8-position configuration, allowing for precise control over multiple settings. Its 15mm shaft is making integration seamless. The unique plum blossom design not only adds a touch of elegance but also ensures ergonomic operation. Built to last, the RS16 boasts robust construction, low contact resistance, and high insulation resistance, making it a reliable choice for both professional and hobbyist applications.
Features
- Versatile Configuration: 1 pole with 8 positions for flexible circuit selection.
- Compact Design: 15MM profile for easy integration into space-constrained designs.
- Efficient Performance: Low contact resistance (≤ 50mΩ) ensures optimal signal integrity.
- Enhanced Safety: High insulation resistance (≥ 100MΩ at 500VDC) for reliable operation.
- Durable Construction: Withstand voltage of 500V AC for 1 minute, built for longevity.
- Wide Temperature Range: Operates from -10°C to 60°C, suitable for various environments.
Specifications
| Category | Parameter | Value |
|---|---|---|
| Electrical | Maximum Rated Current | 0.3A at 60VDC |
| Contact Resistance | ≤ 50mΩ | |
| Insulation Resistance | ≥ 100MΩ at 500VDC | |
| Dielectric Strength | 500V AC for 1 minute | |
| Mechanical | Configuration | 1 pole, 8 positions |
| Shaft Length | 15 mm | |
| Mounting Type | Panel Mount & PCB Mount | |
| Environmental | Operating Temperature | -10°C to 60°C |
Applications
- Audio Systems: Ideal for selecting inputs or adjusting settings in mixers, amplifiers, and other audio equipment.
- Industrial Controls: Perfect for mode selection in machinery and automation systems.
- Test Equipment: Use in oscilloscopes, signal generators, and other instruments for function switching.
- Consumer Electronics: Enhance user interfaces in devices like radios, synthesizers, and more.
- DIY Projects: A great addition to custom electronic builds requiring multi-position switching.
Package Content

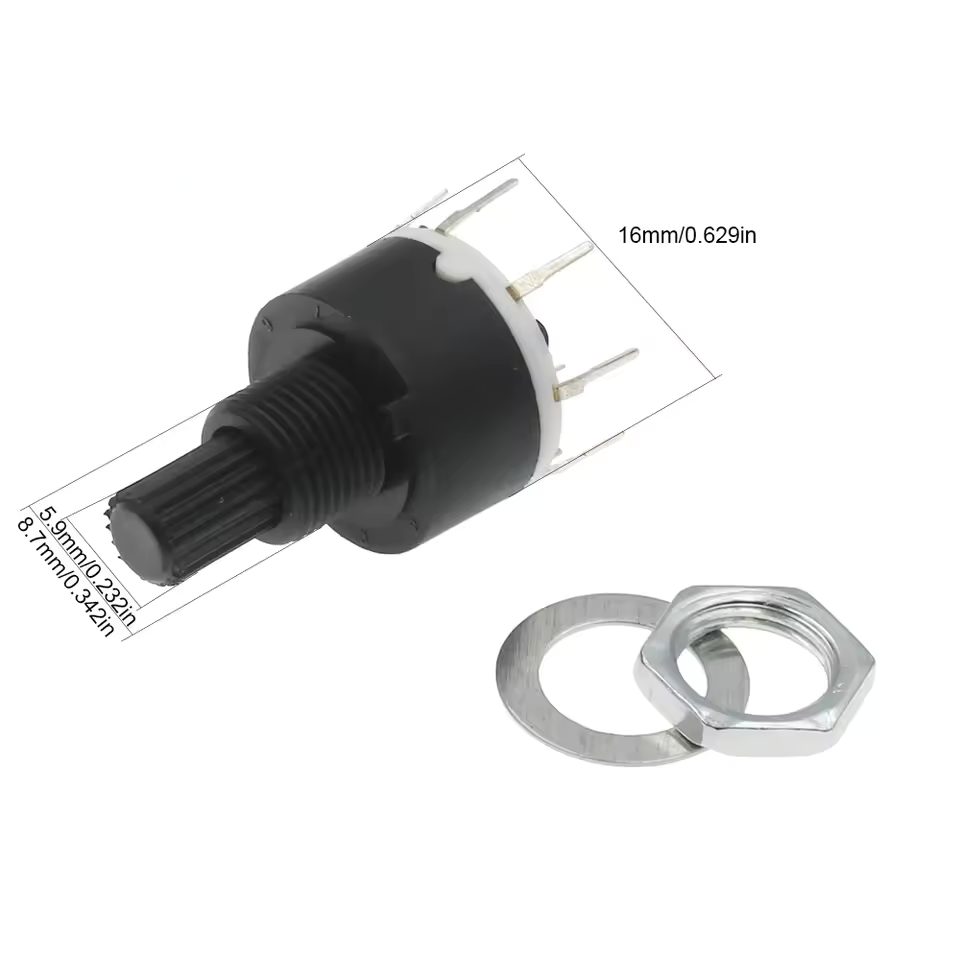

- 1 x RS16 Plum Blossom Rotary Selector Switch 1 Pole 8 Position 15MM
- 2 x Metal Nuts (Shown In The Images)
