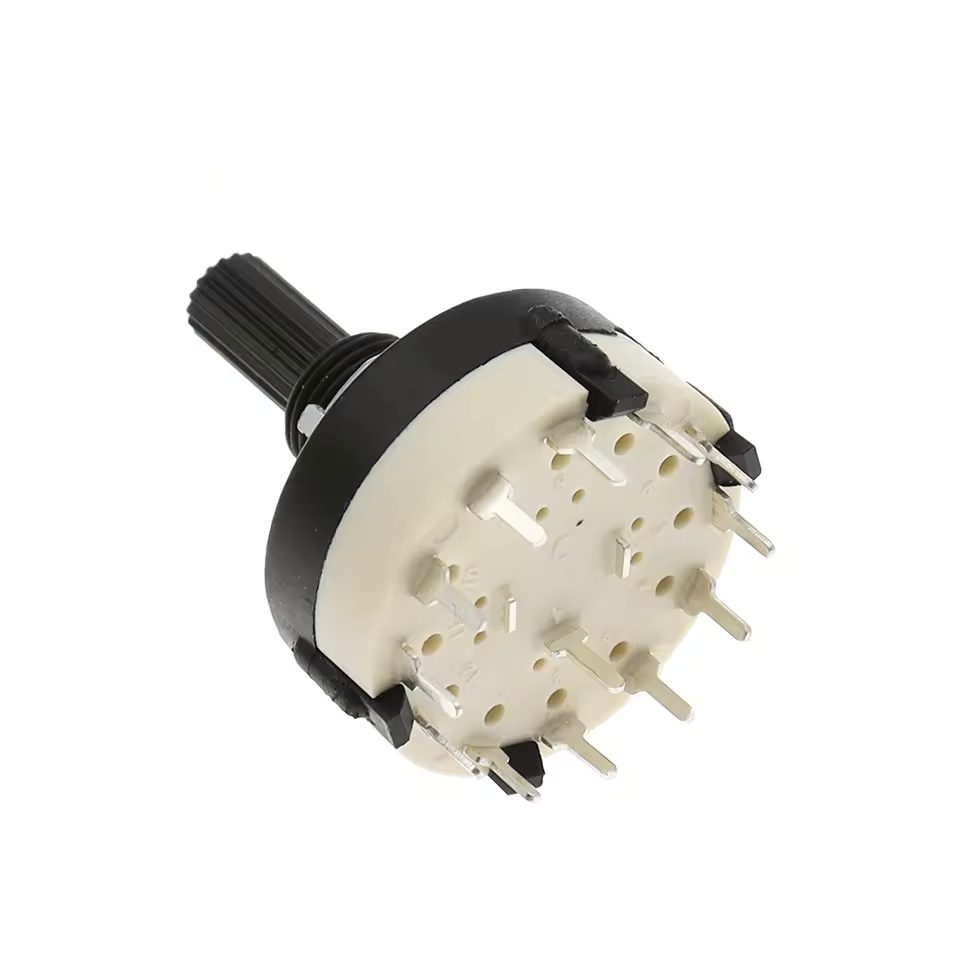

RS26 Plum Blossom Rotary Selector Switch 1 Pole 12 Position 20mm
The RS26 Plum Blossom Rotary Selector Switch is a high-quality, versatile component designed for precise control in electronic circuits. Featuring 1 pole and 12 selectable positions, this switch offers versatility and reliability for various projects. Its durable construction, including a 20mm plum blossom shaft, ensures reliable performance in various applications, from audio equipment to industrial controls. Ideal for both hobbyists and professionals, this switch is a must-have for any project requiring multi-position selection.
Features
- 1-Pole, 12-Position Design: Enables selection between 12 different positions.
- 20mm Plum Blossom Shaft: Provides a secure and ergonomic grip for easy operation.
- Durable Construction: Made from high-quality plastic and metal materials for long-lasting performance.
- Versatile Mounting Options: Compatible with panel mounting or PCB integration, accommodating various installation requirements.
- Smooth Rotational Operation: Features a precise step angle for tactile feedback and accurate position selection.
Specifications
| Parameter | Value |
|---|---|
| Model | RS26 |
| Type | Rotary Selector Switch |
| Poles | 1 |
| Positions | 12 |
| Max. Rated Power | 0.3A 60VDC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ at 500VDC |
| Withstand Voltage | 500V AC for 1 minute |
| Operating Temperature | -10°C to 60°C |
| Soldering Conditions | 230±5°C for 3±0.5s |
Applications
- Audio Equipment: Ideal for channel selection, volume control, and other audio adjustments.
- Industrial Controls: Suitable for machinery and equipment requiring multi-position settings.
- Home Appliances: Can be used in devices like fans, heaters, and lighting systems for speed or mode selection.
- Instrumentation: Perfect for test and measurement devices needing precise control over multiple inputs or outputs.
- DIY Electronics Projects: A great component for hobbyists building custom circuits or prototypes.
Package Content
- 1 x RS26 Plum Blossom Rotary Selector Switch 1 Pole 12 Position 20 mm
- 3 x Metal Nuts (Shown In The Images)
