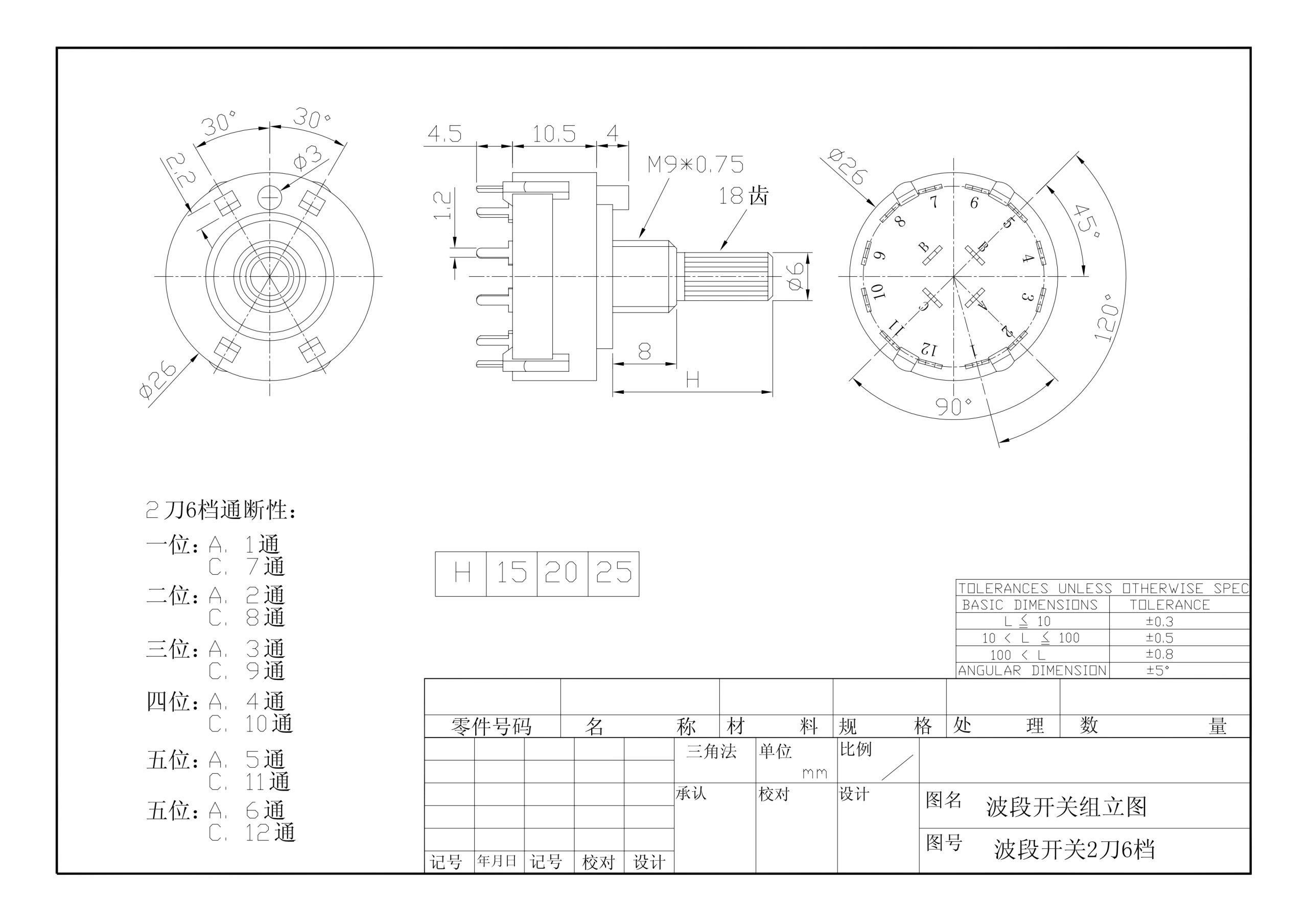

RS26 Plum Blossom Rotary Selector Switch 2 Pole 12 Position 20mm
The RS26 Plum Blossom Rotary Selector Switch is a versatile and reliable component designed for precise control in a variety of electronic applications. Featuring a 2-pole, 12-position configuration. The unique Plum Blossom design not only enhances the aesthetic appeal but also provides an ergonomic grip for easy operation. Built with durability in mind, the RS26 ensures long-lasting performance in both professional and consumer devices.
Features
- 2-Pole, 12-Position Design: Enables selection between 12 different positions across two poles for versatile circuit control.
- 20mm Plum Blossom Shaft: Provides a secure and ergonomic grip for easy operation.
- Durable Construction: Made from high-quality plastic and metal materials for long-lasting performance.
- Versatile Mounting Options: Compatible with panel mounting or PCB integration, accommodating various installation requirements.
- Smooth Rotational Operation: Features a precise step angle for tactile feedback and accurate position selection.
Specifications
| Parameter | Value |
|---|---|
| Type | Rotary Selector Switch |
| Number of Poles | 2 |
| Number of Positions | 12 |
| Contact Rating | 0.3A at 60VDC |
| Contact Resistance | 50mΩ max |
| Insulation Resistance | 100MΩ min at 500VDC |
| Dielectric Strength | 500V AC for 1 minute |
| Operating Temperature | -10°C to 60°C |
| Mechanical Life | 10,000 cycles |
| Electrical Life | 5,000 cycles |
| Terminal Type | Solder terminals |
| Mounting Type | Panel Mount & PCB Mount |
Applications
- Audio Equipment: Ideal for channel selection, volume control, and other audio adjustments.
- Industrial Controls: Suitable for machinery and equipment requiring multi-position settings.
- Home Appliances: Can be used in devices like fans, heaters, and lighting systems for speed or mode selection.
- Instrumentation: Perfect for test and measurement devices needing precise control over multiple inputs or outputs.
- DIY Electronics Projects: A great component for hobbyists building custom circuits or prototypes.
Package Content
- 1 x RS26 Plum Blossom Rotary Selector Switch 2 Pole 12 Position 20MM

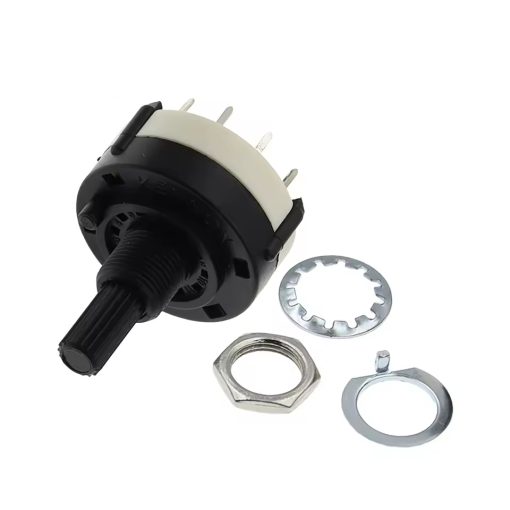

- 3 x Metal Nuts (Shown In The Images)
