RS26 Plum Blossom Rotary Selector Switch 3 Pole 12 Position 20MM
The RS26 Plum Blossom Rotary Selector Switch is a high-quality, multi-pole rotary switch designed for precise control in various electronic applications. This specific model features a 3-pole, 12-position configuration (3P12T), enabling the simultaneous management of three independent circuits, each with 12 selectable positions. The switch incorporates a 20mm plum blossom shaft that ensures secure knob attachment and reliable operation. Its robust construction and versatile mounting options make it suitable for both professional and industrial environments.
Features
- 3 Poles with 12 Selectable Positions (3P12T): Allows control of three separate circuits, each with 12 distinct positions, providing flexibility in complex circuit designs.
- Plum Blossom Shaft Design: The splined shaft enhances grip strength, ensuring precise and reliable operation.
- Durable Construction: Made from high-quality metal and plastic materials for long-lasting performance in demanding applications.
- Smooth Rotational Operation: Features a precise step angle for tactile feedback and accurate position selection.
- Versatile Mounting Options: Compatible with panel mounting or PCB integration, accommodating various installation requirements.
Specifications
| Specification | Value |
|---|---|
| Type | Rotary Selector Switch |
| Model | RS26 |
| Configuration | 3 Pole, 12 Position |
| Contact Rating | 0.3A at 60VDC |
| Contact Resistance | 50mΩ max |
| Insulation Resistance | 100MΩ min at 500VDC |
| Dielectric Strength | 500V AC for 1 minute |
| Operating Temperature | -10°C to 60°C |
Applications
- Audio and Video Equipment: Used in mixers, amplifiers, and other audio devices for channel or mode selection.
- Industrial Automation: Employed in control panels for machinery and process control systems.
- Test and Measurement Instruments: Facilitates selection of different test configurations or measurement modes.
- Communication Systems: Supports switching between multiple channels or settings in radios and transceivers.
- Custom Electronic Projects: Ideal for DIY projects requiring precise multi-circuit control.
Package Content
- 1 x RS26 Plum Blossom Rotary Selector Switch 3 Pole 12 Position 20mm

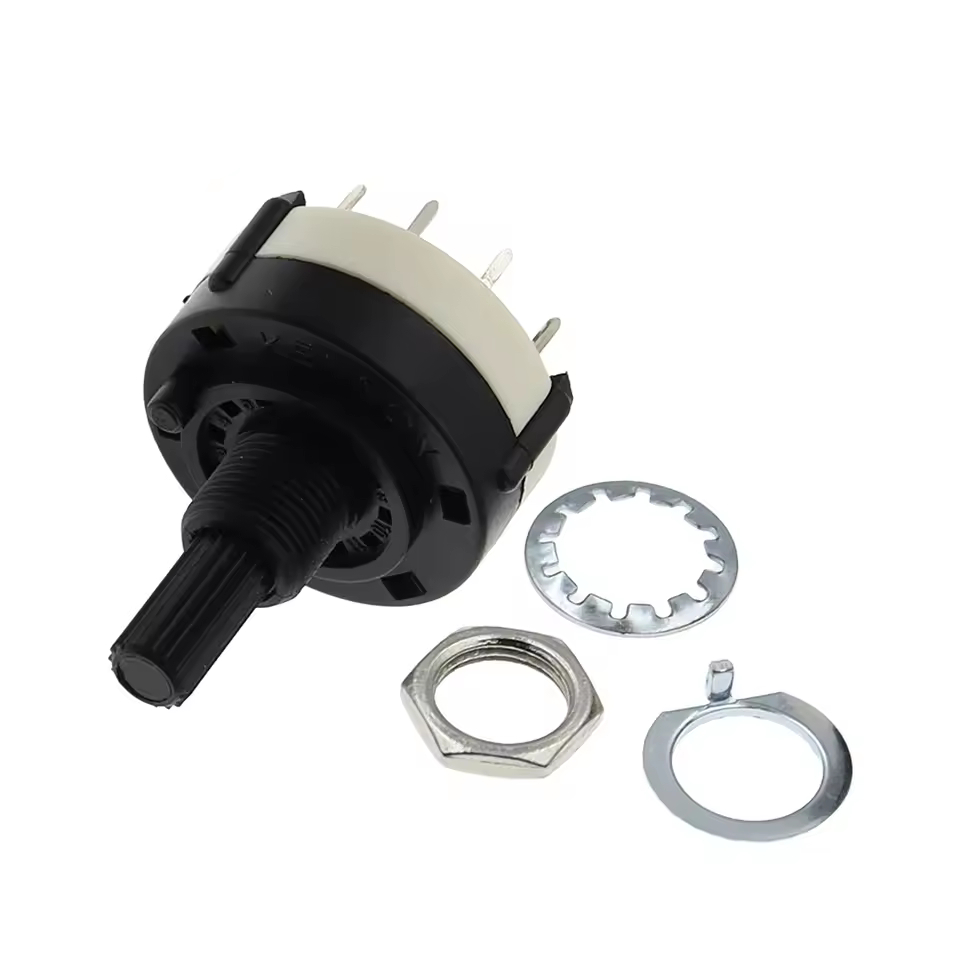

- 3 x Metal Nuts (Shown In The Images)
