RS26 Plum Blossom Rotary Selector Switch 4 Pole 12 Position 20mm
The RS26 Plum Blossom Rotary Selector Switch is a versatile and reliable solution for applications requiring multiple circuit configurations. Featuring 4 poles and 12 positions (4P12T), this switch enables complex switching tasks in a compact form factor. Constructed from durable metal and plastic, it ensures long-lasting performance. The 20mm handle length facilitates precise and user-friendly operation. Ideal for both professional and hobbyist projects, this switch is a valuable addition to any electronic component inventory.
Features
- Multi-Pole Configuration: 4 poles and 12 positions allow for extensive circuit switching options.
- Ergonomic Design: 20mm shaft length for comfortable operation.
- Versatile Mounting Options: Compatible with panel mounting or PCB integration, accommodating various installation requirements.
Specifications
| Specification | Value |
|---|---|
| Model | RS26 |
| Type | Rotary Selector Switch |
| Number of Poles | 4 |
| Number of Positions | 12 |
| Contact Rating | 0.3A at 60VDC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ at 500VDC |
| Dielectric Strength | 500V AC for 1 minute |
| Mounting Type | Panel Mount & PCB Mount |
| Actuator Type | Plum blossom Shaft |
| Material | Plastic housing with metal contacts |
| Detent Angle | 30° |
| Mechanical Life | 10,000 operations |
| Electrical Life | 5,000 operations at full load |
| Operating Temperature | -10°C to 60°C |
Applications
- Audio Equipment: Ideal for channel selection, volume control, and other audio adjustments.
- Industrial Controls: Suitable for machinery and equipment requiring multi-position settings.
- Home Appliances: Can be used in devices like fans, heaters, and lighting systems for speed or mode selection.
- Instrumentation: Perfect for test and measurement devices needing precise control over multiple inputs or outputs.
- DIY Electronics Projects: A great component for hobbyists building custom circuits or prototypes.
Package Content
- 1 x RS26 Plum Blossom Rotary Selector Switch 4 Pole 12 Position 20MM

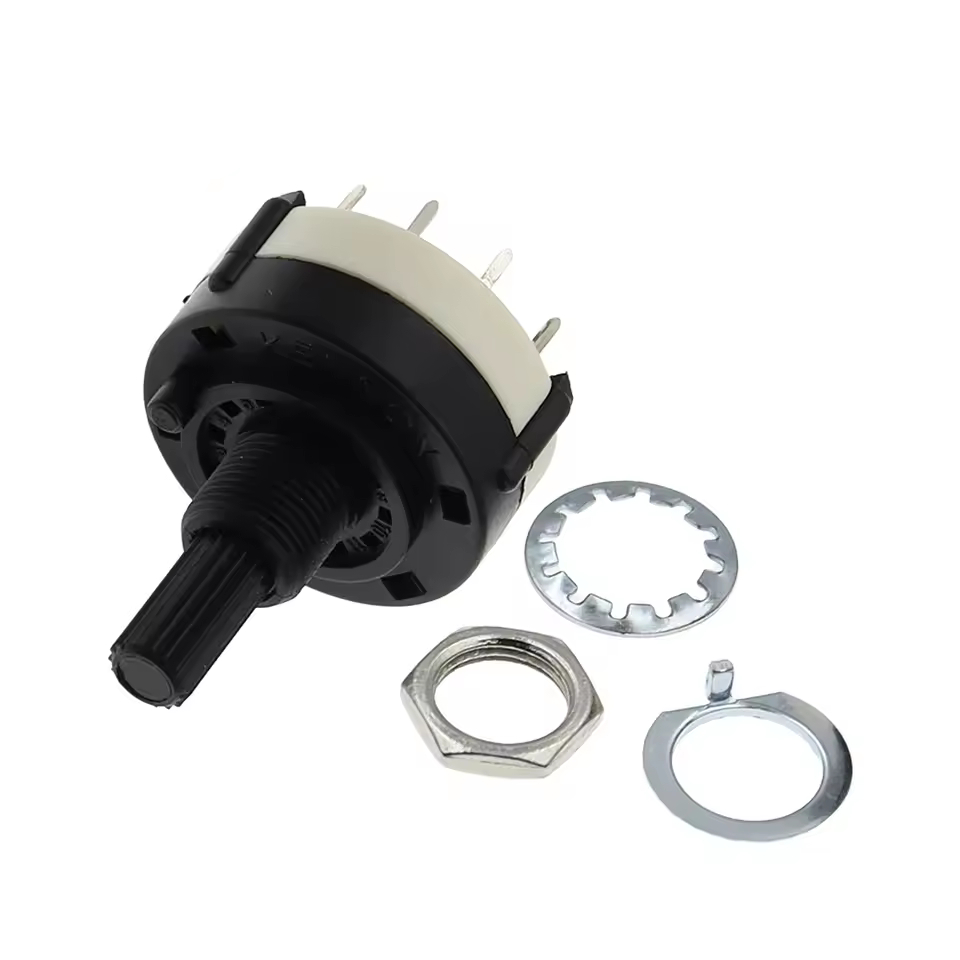

- 3 x Metal Nuts (Shown In The Images)
