RS606 Bridge Rectifier 6A 800V

RS606 Bridge Rectifier 6A 800V

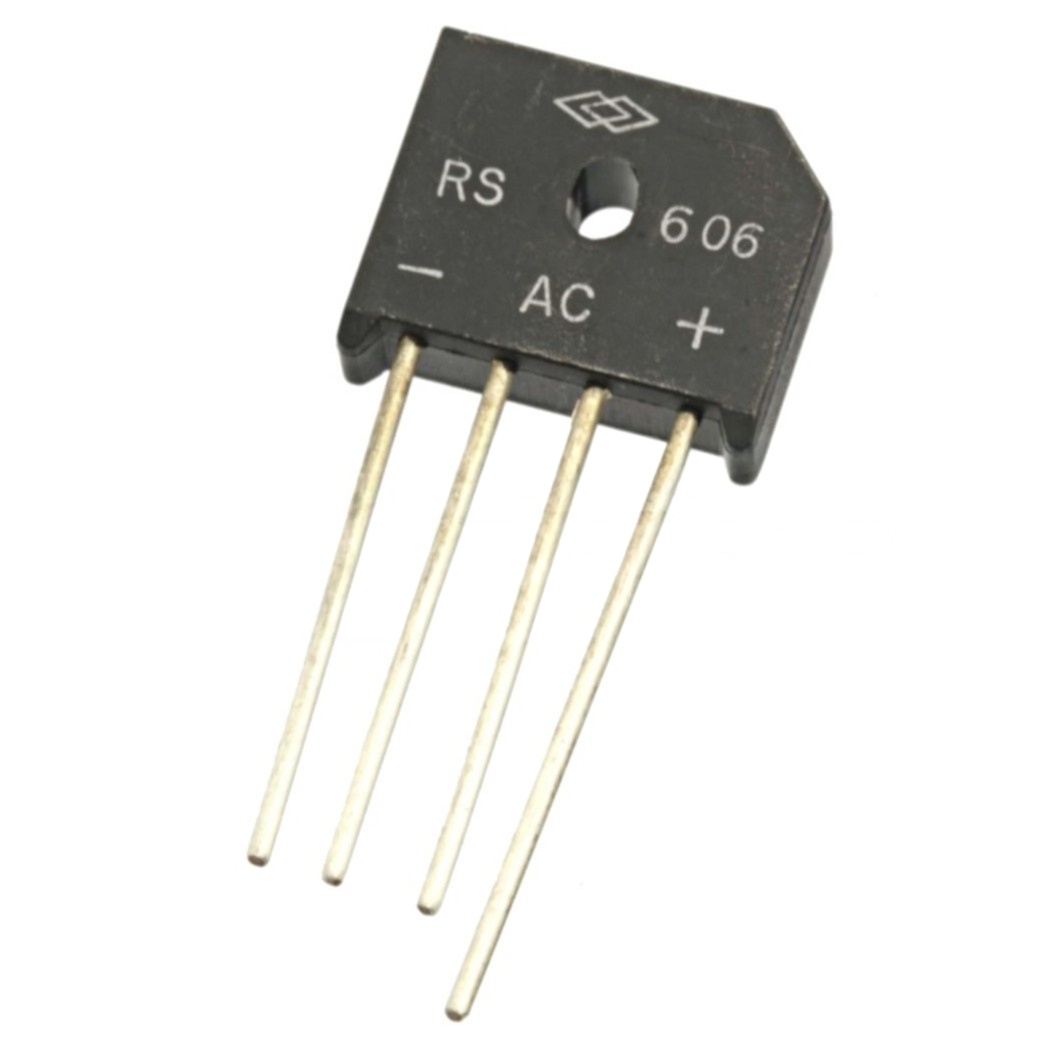

The RS606 is a compact, high-reliability 6.0A bridge rectifier rated for 800V peak reverse voltage. Housed in an RS-6 molded-plastic case, it converts alternating current to direct current for moderate-power circuits while offering low forward voltage drop and robust surge capability. Its design prioritizes PCB mounting and thermal stability, making it suitable where a small form factor and dependable rectification are needed.

Internally, each diode element is engineered to support a 6A continuous average forward current (at the specified thermal conditions) and withstand non-repetitive peak surge currents up to 250A (8.3 ms single half-sine). The device maintains low leakage at room temperature and has controlled forward-voltage characteristics to limit power loss. Junction-to-case thermal resistance is low, aiding heat transfer to the PCB or heatsink.

Electrical parameters and mechanical dimensions are tightly specified to ensure predictable performance across temperature extremes (operating junction temperature −55°C to +125°C). The RS606’s molded terminals are solderable per MIL-STD guidelines and the package carries UL recognition with a 94V-0 flammability rating. Overall, the RS606 offers a balanced combination of current capacity, voltage rating, and mechanical ruggedness for reliable rectification in power-supply designs. It is widely used across industrial electronics sectors.

Features:

• Ideal for Printed Circuit Board.
• Surge Overload Rating of 250A Peak.
• Low Forward Voltage Drop.
• Easily cleaned with Freon, Alcohol, Chloroethene and similar solvents.
• The plastic material carries UL recognition 94V-0.

Specifications:

Applications:

• Power Supplies.
• Battery Chargers.
• DC Motor Controllers.
• Industrial Control Equipment.
• AC-to-DC Adapters.
• LED/Lighting Power Modules.

Package Contents:

• 1x Bridge Rectifier RS606 6A 800V

Datasheet
