S-Video Connector DIN-4P for PCB

S-Video Connector DIN-4P for PCB

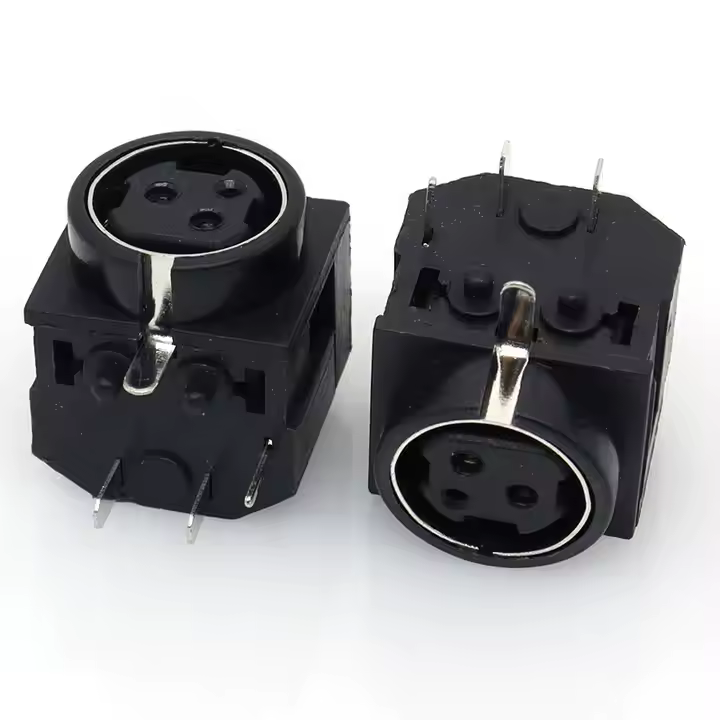

The S-Video Connector DIN-4P for PCB is a 4-pin mini-DIN female connector designed for mounting on printed circuit boards (PCBs). It is specifically used for S-Video connections, which separate the video signal into luminance (Y) and chrominance (C) components, resulting in higher video quality compared to composite video. This connector is commonly used in older electronic devices such as DVD players, VCRs, and computer systems to connect to televisions or monitors that support S-Video.

Features:

• PCB Mount Design Allows for easy integration into electronic devices, facilitating assembly and replacement.
• 4-Pin Mini-DIN Connector Specifically designed for S-Video, ensuring compatibility with standard S-Video cables.
• Female Connector Type Compatible with male S-Video plugs, aligning with typical connection requirements.
• Durable Construction Made of plastic and metal for longevity and reliability, suitable for both consumer and industrial applications.

Specifications:

• Connector Type: Female 4-pin mini-DIN
• Dimensions: 16mm x 14mm
• Pin Count: 4 Pins
• Mounting Type: PCB mount, designed for through-hole or surface-mount integration
• Rated current /voltage: 1A 30VDC
• Insulation resistance: ≥100MΩ

Applications:

• DVD players
• VCRs
• other video devices.

Package Include:

• 1 x S-Video Connector DIN-4P for PCB.
