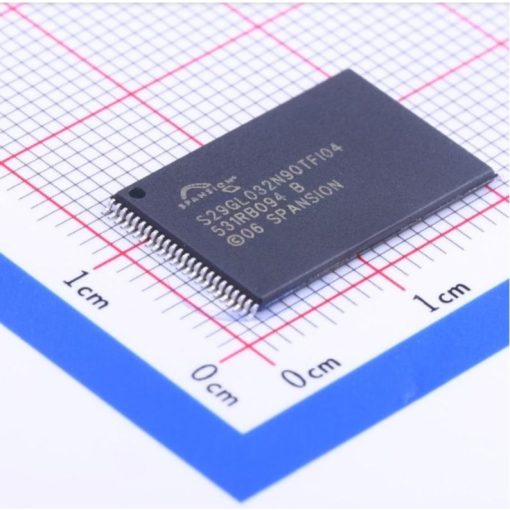

S29GL032N90TFI04 SMD IC TSOP48
The S29GL032N90TFI04 SMD IC TSOP48 is a high-performance non-volatile NOR Flash memory integrated circuit designed for reliable code and data storage in embedded electronic systems. This memory device provides a total capacity of 32Mbit, organized as 4M × 8-bit or 2M × 16-bit, enabling flexible integration with a wide range of microcontrollers and digital systems.
Built using advanced MirrorBit® technology, the device delivers high endurance, reliable data retention, and efficient power consumption. It supports fast 90ns random access time, enabling rapid firmware execution and quick data retrieval in performance-critical applications.
Features:
- 32Mbit non-volatile NOR Flash memory storage capacity.
- Memory organization of 4M × 8bit or 2M × 16bit.
- Fast 90ns access time for high-speed data read operations.
- Single supply voltage operation from 2.7V to 3.6V.
- Parallel interface compatible with common microcontrollers and processors.
- Flexible sector architecture for efficient memory management.
Specifications:
| Parameter | Value |
|---|---|
| Memory Size | 32Mbit |
| Memory Organization | 4Mx8/2Mx16 |
| Interface Type | Parallel |
| Supply Voltage | 2.7V-3.6V |
| Access Time | 90ns |
| Page Access Time | 25ns |
| Operating Temperature | -40°C-85°C |
| Standby Current | 1μA |
| Active Read Current | 25mA |
| Program/Erase Current | 50mA |
| Erase Cycles | 100000 |
| Data Retention | 20years |
| Package Type | TSOP-48 |

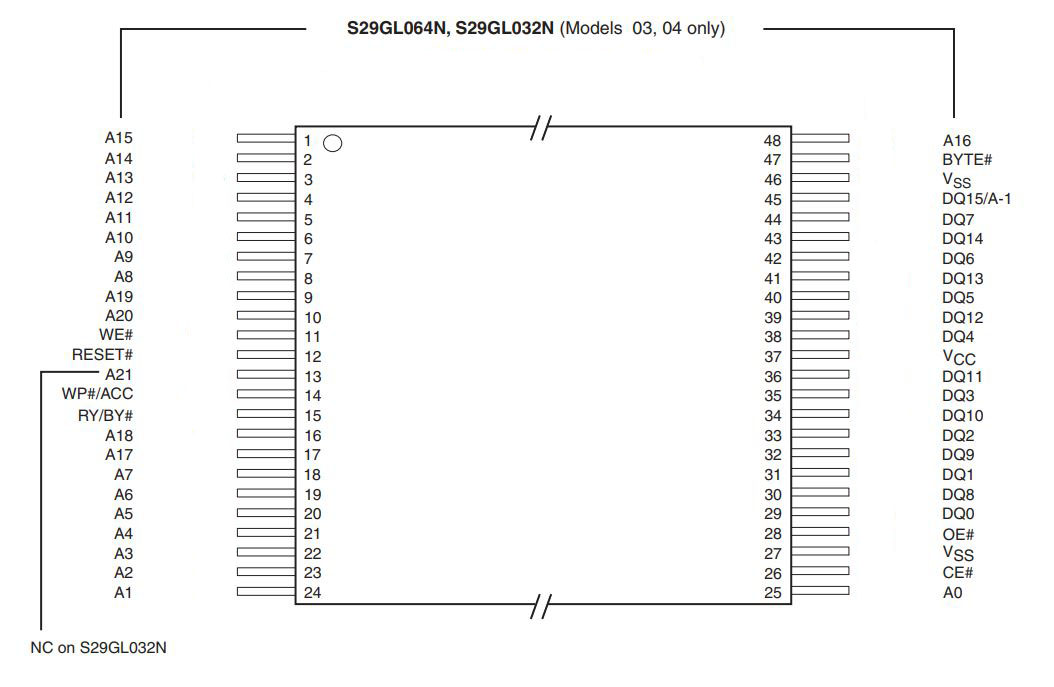

Pin Configuration:

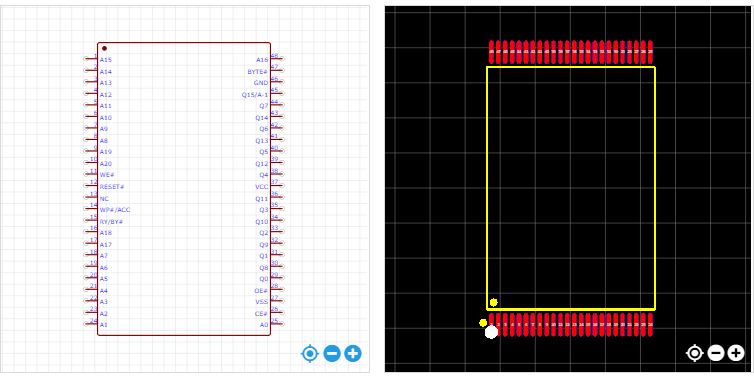

Footprint:
Applications:
- Embedded firmware storage in microcontroller systems.
- Industrial automation and control equipment.
- Networking devices and communication systems.
- Automotive electronic control modules.
- Consumer electronics and digital appliances.
- Data logging and configuration storage in embedded designs.
Package Include:
1x S29GL032N90TFI04 SMD IC TSOP48.
