S29GL064N90TFI04 SMD IC TSOP48
The S29GL064N90TFI04 SMD IC TSOP48 is a high-density non-volatile NOR Flash memory integrated circuit designed for embedded systems that require reliable firmware and data storage. The device offers 64Mbit of memory capacity, organized as 8M × 8-bit or 4M × 16-bit, allowing flexible integration with a wide range of microcontrollers, processors, and digital systems.
Built on advanced MirrorBit® NOR Flash technology, the memory provides high endurance, long data retention, and efficient power consumption. With a 90ns access time, the device enables fast code execution and quick data retrieval, making it suitable for applications requiring high-speed parallel memory interfaces.
Features:
- 64Mbit non-volatile NOR Flash memory storage.
- Memory organization of 8M × 8bit or 4M × 16bit.
- Fast 90ns access time for high-speed read operations.
- Parallel interface for direct microcontroller and processor integration.
- Operating supply voltage range from 2.7V to 3.6V.
- Advanced sector protection and security features.
Specifications:
| Parameter | Value |
|---|---|
| Memory Size | 64Mbit |
| Memory Organization | 8Mx8/4Mx16 |
| Interface Type | Parallel |
| Supply Voltage | 2.7V-3.6V |
| Access Time | 90ns |
| Page Access Time | 25ns |
| Operating Temperature | -40°C-85°C |
| Standby Current | 1μA |
| Active Read Current | 25mA |
| Program/Erase Current | 50mA |
| Erase Cycles | 100000 |
| Data Retention | 20years |
| Package Type | TSOP-48 |

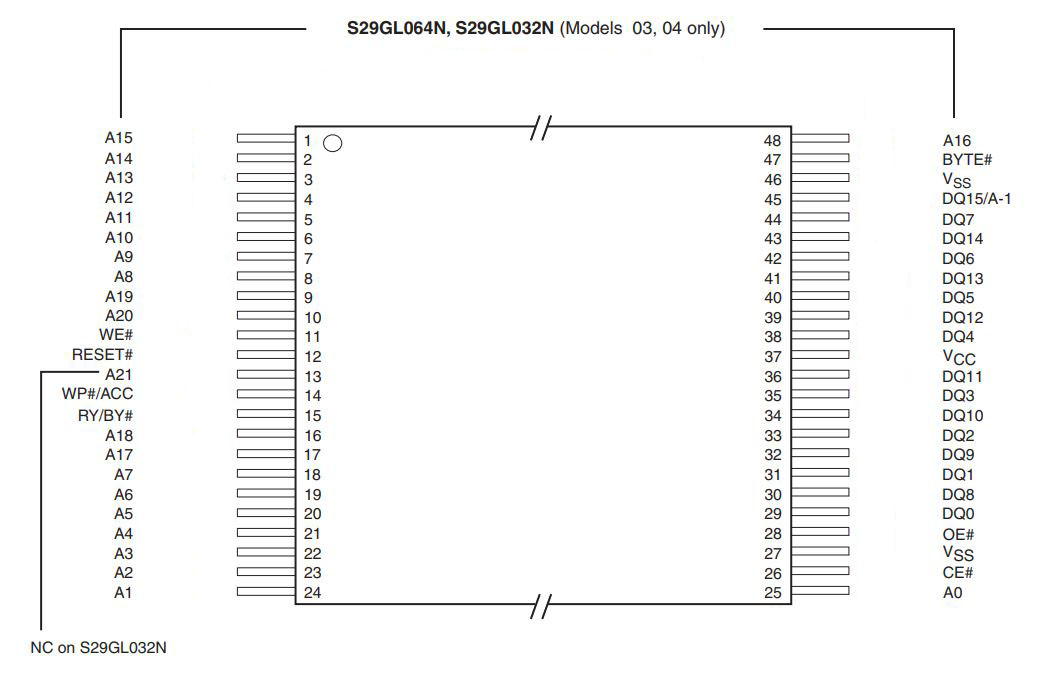

Pin Configuration:

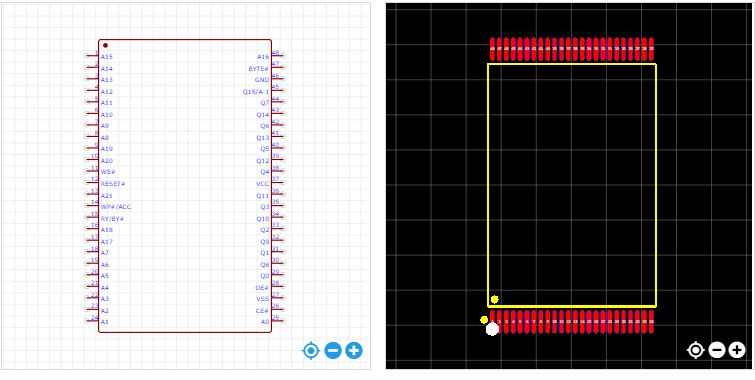

Footprint:
Applications:
- Boot code and firmware storage in embedded microcontrollers.
- Parameter and data storage in industrial automation systems.
- Non-volatile memory for automotive electronics and telematics.
- Secure code execution in consumer devices like printers and set-top boxes.
- Data logging in networking hardware and communication equipment.
Package Include:
1x S29GL064N90TFI04 NOR Flash Memory IC TSOP-48.
