Home›Connectors & Terminals›JST Connector›S4B-XH-A-1 JST XH Data Terminal Angle Male 4 Pin Connector Header 2.5mm
S4B-XH-A-1 JST XH
Add your review

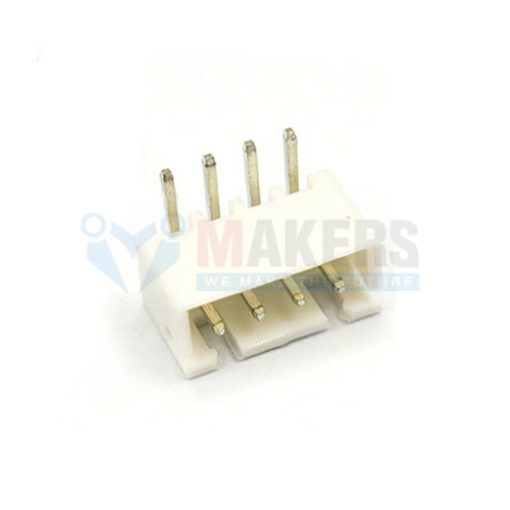

S4B-XH-A-1 JST XH Data Terminal Angle Male 4 Pin Connector Header 2.5mm

The S4B-XH-A-1 is a 4-position, 2.5mm pitch, through-hole, top-entry connector header from JST XH series, designed for reliable wire-to-board connections in compact, high-density applications.

0.85 EGP

Quantity
Price
<2000
0.85 EGP
2000+
0.68 EGP
× S4B-XH-A-1 JST XH Data Terminal Angle Male 4 Pin Connector Header 2.5mm
Buy Now
Availability: In Stock
SKU:6326712758430
Categories:
S4B-XH-A-1 JST XH Data Terminal Angle Male 4 Pin Connector Header 2.5mm

The S4B‑XH‑A‑1 is a right‑angle, 4‑circuit through‑hole header from the JST XH family. It features an open‑frame nylon housing and single‑beam phosphor‑bronze contacts plated with tin for reliable signal and low‑power connections. With a compact assembled height of 9.8 mm, it’s designed for space‑constrained PCBs in consumer and industrial electronics .

Features
  • Open‑frame, right‑angle housing for minimal board footprint.
  • 2.5 mm center‑to‑center pin pitch compatible with XH series mating connectors.
  • Single‑beam tin‑plated contacts providing consistent low-resistance connections (≤ 10 mΩ initial).
  • Rated 3 A continuous current and 250 VAC/DC voltage (AWG #22).
  • Operating temperature range –25 °C to +85 °C with insulation resistance ≥ 1 000 MΩ.
Specifications
Parameter Value
Number of Positions 4
Pitch 2.5mm
Current Rating 3A AC/DC (AWG #22)
Voltage Rating 250V AC/DC
Operating Temperature -25°C to +85°C
Contact Resistance Initial: 10mΩ max.
After tests: 20mΩ max.
Insulation Resistance 1,000MΩ min.
Withstanding Voltage 1,000VAC for 1 minute
Applicable Wire Range AWG #30 to #22
Insulation O.D. 1.1mm to 1.9mm
PC Board Thickness 0.8mm to 1.6mm
Material Posts: Copper alloy, tin-plated
Housing: PA 66, natural (white)

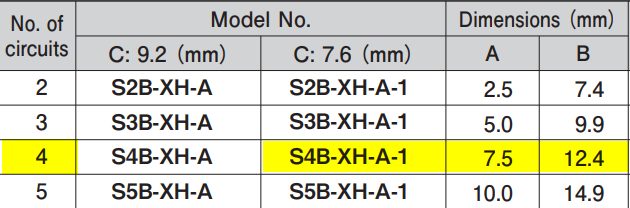

Dimensions

Applications
  • Consumer Electronics: Powers devices such as TVs, audio equipment, and household appliances.
  • Industrial Equipment: Used in control systems and machinery for reliable connectivity.
  • Automotive Electronics: Suitable for in-vehicle wiring and sensor applications.
  • Medical Devices: Ideal for compact diagnostic and monitoring equipment.
  • General Wire-to-Board Needs: Perfect for any scenario requiring dependable, space-efficient connections.
Datasheet
