S6B-XH-A-1 JST XH Data Terminal Angle Male 6 Pin Connector Header 2.5mm

S6B-XH-A-1 JST XH Data Terminal Angle Male 6 Pin Connector Header 2.5mm

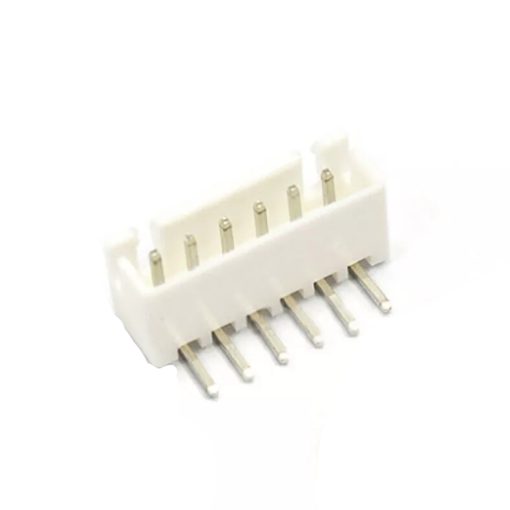

The S6B-XH-A-1 JST XH Data Terminal Angle Male 6 Pin Connector Header 2.5mm is a high-quality, side-entry through-hole header engineered for wire-to-board connectivity. Part of the renowned JST XH series, this connector boasts a 2.5mm pitch, making it suitable for high-density PCB layouts where space is at a premium. Its shrouded design ensures secure mating, while the tin-plated copper alloy posts provide excellent electrical conductivity and durability. With a current rating of 3A AC/DC (using AWG #22) and a voltage rating of 250V AC/DC, the S6B-XH-A-1 delivers consistent performance across a variety of applications.

Features

• Side-entry design: Enables low-profile mounting on PCBs.
• 2.5mm pitch: Supports high-density circuit board layouts.
• Shrouded header: Ensures secure and reliable mating with corresponding housings.
• Through-hole mounting: Provides a robust mechanical connection to the PCB.
• Tin-plated copper alloy posts: Offers excellent conductivity and corrosion resistance.
• Natural (white) housing: Constructed from durable PA 66 material.

Specifications

Applications

• Used in devices like TVs, audio equipment, and appliances.
• Suitable for control systems and machinery.
• Ideal for in-vehicle wiring and sensors.
• Employed in compact diagnostic and monitoring equipment.
• Perfect for any application requiring reliable, space-saving connections.

Package Contents

• 1x S6B-XH-A-1 JST XH Data Terminal Angle Male 6 Pin Connector Header 2.5mm.

Datasheet

• JST XH Header.
