S9014 NPN TO-92 Bipolar Transistors – BJT

0.75 EGP

Buy Now
Availability: In Stock
SKU:3496300067251

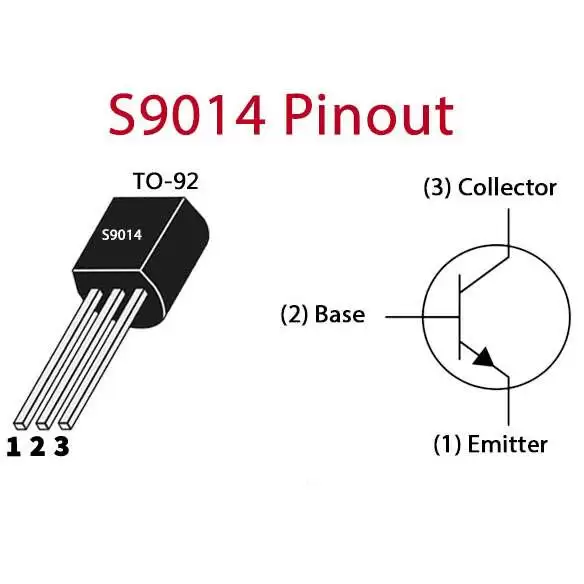

Pin No. Pin Name Description
1 Emitter Current Drains out through emitter, normally connected to ground
2 Base Controls the biasing of transistor, Used to turn ON or OFF the transistor
3 Collector Current flows in through collector, normally connected to load

Features

  • Pre-Amplifier, Low Level, Low Noise NPN Transistor
  • Current Gain (hFE), 60 to 1000 (good linearity)
  • Continuous Collector current (IC) is 100mA
  • Collector-Emitter voltage (VCEO) is 45 V
  • Collector-Base voltage (VCB0) is 50V
  • Emitter Base Voltage (VBE0) is 5V
  • Transition Frequency 150MHz
  • Available in To-92 Package

Note: Complete Technical Details can be found at the datasheet given at the end of this page.

Where to Use S9014 Transistors?

The S9014 is a low signal and low noise NPN transistor with a good hfe value of upto 1000 of high linearity this makes this transistor an ideal choice for designing Audio Frequency (AF) amplifiers or pre-amplifiers. This NPN transistor also has its counter PNP transistor (SS9015) which can be used to design class B amplifier in push-pull configuration. It also has good collector dissipation (power dissipation) of 0.4W to driver speakers of decent rating.

The transistor has a very low collector current of 100mA and hence it is not advised for switching or driving circuits. I have personally found these transistors being used in wireless security cameras and small game consoles where audio pre-amplification is required.

Applications

  • AF Pre-amplifiers
  • Used as Class B amplifiers
  • Low noise stage audio equipments
  • Push-Pull Circuits

S9014 Transistor Datasheet
