Saft LS14250 Lithium Battery with Pins 1/2 AA 3.6V 1200 mAh

Saft LS14250 Lithium Battery with Pins 1/2 AA 3.6V 1200 mAh

​The Saft LS14250 Lithium Battery with Pins 1/2 AA 3.6V 1200 mAh is a compact 3.6V 1/2 AA lithium-thionyl chloride (Li-SOCl₂) battery with a nominal capacity of 1.2Ah (1200mAh), designed for applications requiring reliable, long-term power.

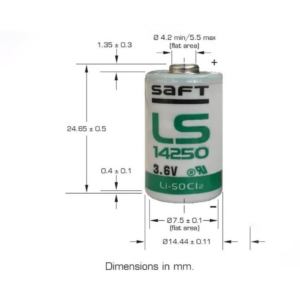

Measuring approximately 14.5mm in diameter and 25.2mm in height, it is suitable for devices with limited space. The battery operates effectively across a wide temperature range, from -60°C to +85°C, making it ideal for use in extreme environments.

Its low self-discharge rate ensures a shelf life of over 10 years when stored at room temperature. The LS14250 is commonly employed in applications such as memory backup systems, real-time clocks, industrial automation equipment, and utility meters.

Features:

• Stainless steel containers.
• Un-fused individual cells.
• Non-flammable electrolyte.
• Compliant with IEC 86-4 safety standard and EN 50020 intrinsic safety standard.
• Underwriters Laboratories (UL) Component Recognition.
• High operating voltage, stable during most of the application lifetime.
• Some of the highest nominal capacities on the market today.
• Excellent reliability over the extended operating life.
• Non-Rechargeable.
• Operating Temperature Range: -60°C/+85°C (-76°F/+185°F).
• Excellent resistance to humid environments.
• Low magnetic signature.
• Good resistance to passivation.

Specifications:

Application:

• Utility Metering.
• Internet of Things.
• Tracking systems.
• Alarms and security.
• Connected sensors.
• Medical devices

Package Contents:

• 1 X  Saft LS14250 Lithium Battery with Pins 1/2 AA 3.6V 1200 mAh

Note:

• Please keep out of sight and reach of children. Do not recharge, short circuit, crush, disassemble, heat above 100ºC (212ºF) or incinerate.

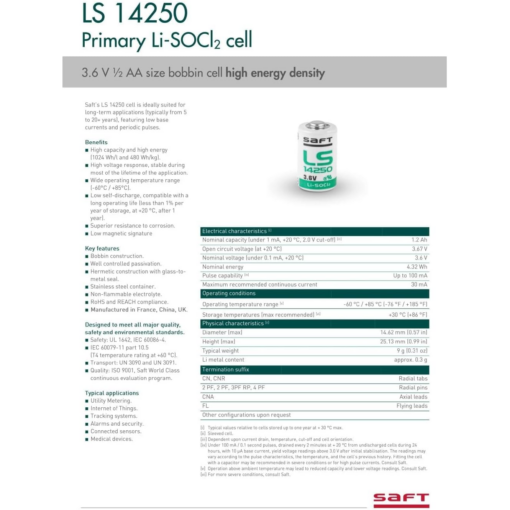

Datasheet:

• Saft LS14250 Lithium Battery
