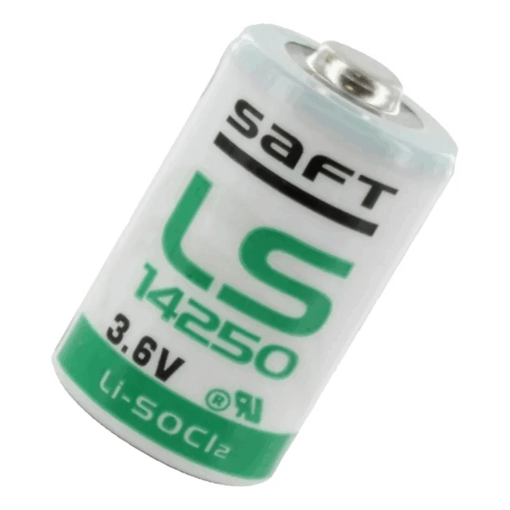

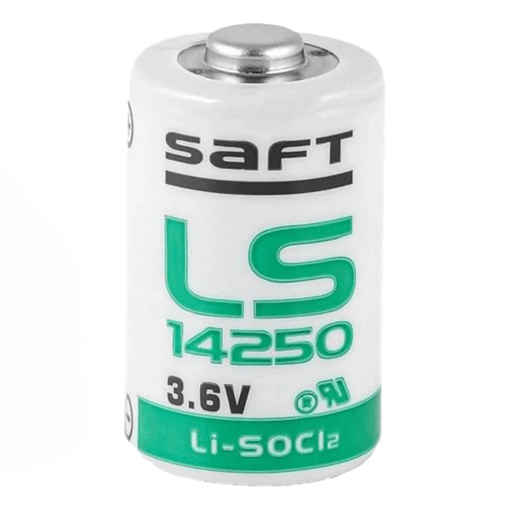

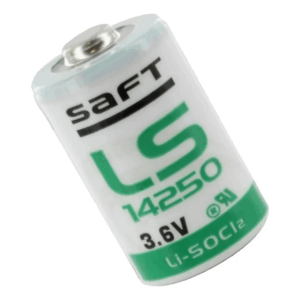

Saft LS14250 Lithium Battery 1/2 AA 3.6V 1200mA
The Saft LS14250 Lithium Battery 1/2 AA 3.6V 1200mA is a high-performance 1/2 AA lithium-thionyl chloride (Li-SOCl₂) battery designed for long-lasting and reliable power in demanding applications. With a nominal voltage of 3.6V and a capacity of 1200mAh, it delivers consistent energy output, making it ideal for memory backup systems, utility metering, alarms, tracking devices, and various industrial applications.
This compact and lightweight battery offers exceptional energy density, extended shelf life, and excellent performance across a wide temperature range from -60°C to +85°C. Engineered for long-term use, the Saft LS14250 is well-regarded for its low self-discharge rate and high reliability, even in extreme conditions. Trusted by professionals worldwide, it is a go-to solution for devices requiring dependable and maintenance-free power over many years.
Features:
- High Energy Density Compact 1/2 AA size with 1200mAh capacity offers excellent power-to-size ratio.
- Stable Operating Voltage Nominal voltage of 3.6V ensures consistent performance.
- Long Shelf Life Low self-discharge rate (less than 1% per year at +20°C) allows for storage up to 10+ years.
- Wide Temperature Range Operates reliably from -60°C to +85°C.
- High Reliability Proven lithium-thionyl chloride (Li-SOCl₂) chemistry provides steady performance in harsh environments.
- Non-Rechargeable Primary battery for long-term use without recharging.
- Hermetically Sealed Stainless steel container for enhanced safety and leak resistance.
- Ideal for Low-Drain Devices Suited for memory backup, utility meters, alarm systems, beacons, and tracking systems.
Specifications:
| Parameter | Value |
|---|---|
| Brand: | Saft |
| Model: | LS-14250 |
| Battery Type: | Lithium Battery |
| Battery Chemistry: | Lithium-thionyl chloride (Li-SOCl₂) |
| Battery Size: | 1/2AA |
| Number of Cells: | 1Cell |
| Rechargeable: | Non-Rechargeable |
| Nominal Voltage: | 3.6V |
| Battery Capacity: | 1200mAh |
| Maximum Continuous Current: | 30mA |
| Maximum Pulse Discharge Current: | 100mA |
| Diameter: | 14.5mm |
| Height: | 25mm |
| Weight: | 9g |
| Operating Temperature Range: | -60°C to +85°C |
| Self-Discharge Rate: | ~1% per year at 20°C |
Applications:
- Utility Meters.
- Memory Backup.
- Security and Alarm Systems.
- Tracking Devices.
- Industrial Instruments.
- Emergency Location Transmitters (ELTs) and Beacons.
- IoT Devices and Remote Sensors.
- Automotive Electronics.
- Medical Devices.
- Military and Aerospace Applications.
Package Contents:
- 1x Saft LS14250 Lithium Battery 1/2 AA 3.6V 1200mA
