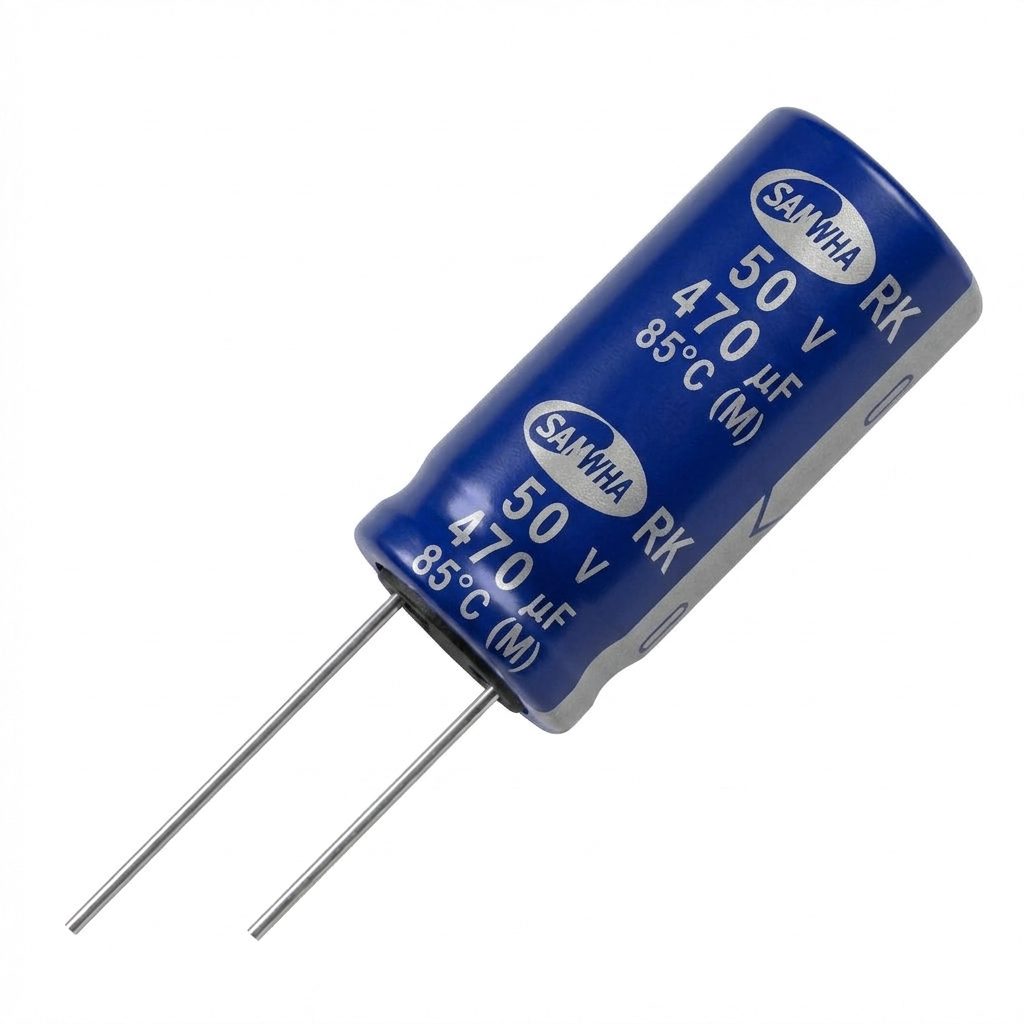

SAMWHA Capacitor 470uF 50V 10x20mm
This is a standard, high-CV (Capacitance-Voltage) Capacitor that offers a wide operating temperature range and robust environmental compliance. These capacitors are engineered to be solvent-proof for voltages up to 100V and feature an insulating sleeve for safety and durability.
✅Features
- High CV Value
- Wide Temperature Range
- RoHS Compliant
📜📚Specifications
| Capacitance | 470µF |
|---|---|
| Rated Voltage | 50V |
| Operating Temperature Range | -55°C to +105°C |
| Capacitance Tolerance | ±20% |
| Size (D x L) | 10 x 20 mm |
| Lead Spacing | 5.0 mm ± 0.5 |
| Lead Wire Diameter | 0.6 mm ± 0.05 |
💻Applications
- Power Supply Filtering
- Audio Equipment
- Industrial Electronics
- Automotive Electronics
🎁Package Content
- 1 x SAMWHA Capacitor 470uF 50V 10x20mm
