Sanwa DCM60R Digital Clamp Meter

Sanwa DCM60R Digital Clamp Meter

The Sanwa DCM60R is a compact, true‑RMS AC clamp meter engineered for low‑voltage electrical diagnostics in CAT III 300 V/CAT II 600 V environments. Its Δ‑Σ sensing method and true‑RMS circuitry deliver precise current measurements across 199.9 A and 600 A ranges, while its autoranging AC voltage function spans 199.9 V to 600 V with 1999‑count resolution.

A large, easy‑to‑read LCD supports data‑hold, over‑range “OL” indication, and a continuity buzzer for sub‑100 Ω checks. Sampling twice per second, the DCM60R provides stable readings and signals battery‑low at 2.2 V. Designed for extended field use, it draws just 5 mW and runs for about 250 hours on two AAA batteries. The slim, ergonomic body incorporates a 25 mm jaw opening to suit most conductors, and a protective case stores leads and the meter conveniently.

Safety features include double/reinforced insulation, barrier guards, and compliance with IEC 61010‑1, ‑2‑030, ‑2‑032, ‑2‑033, and ‑10‑31 standards. Supplied with test leads (TL‑21a), a carrying case (C‑DCM60L), and instruction manual, the DCM60R offers portable, reliable current and voltage diagnostics for maintenance technicians and electricians in industrial and commercial settings.

Features:

• True‑RMS Δ‑Σ AC sensing for accurate current measurement
• Autorange AC current (199.9/600 A) and voltage (199.9/600 V) modes
• 1999‑count LCD with data‑hold and over‑range “OL” indication
• Continuity buzzer sounds below 100 Ω
• Low‑battery warning at approx. 2.2 V
• Long battery life (250 hours on two AAA cells)

Specifications:

Applications:

• AC current measurement in electrical lines
• Testing appliances and power‑supply facilities in low‑voltage (CAT III) environments

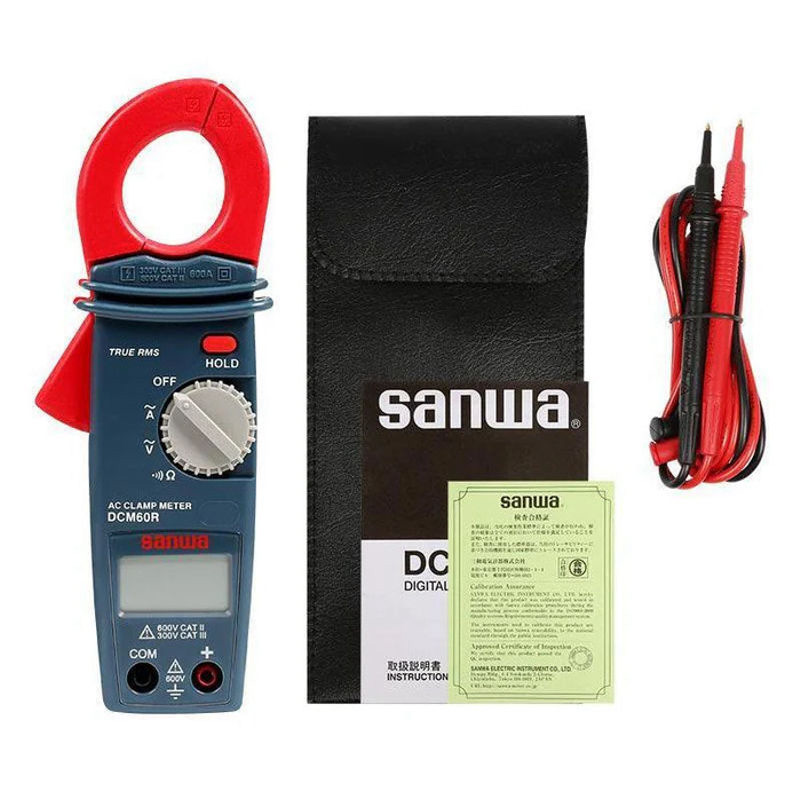

Package Contents:

• 1x Test lead (TL‑21a)
• 1x Carrying case (C‑DCM60L)
• 1x Instruction manual

Sanwa DCM60R Documents:

• Instruction Manual
• Datasheet
