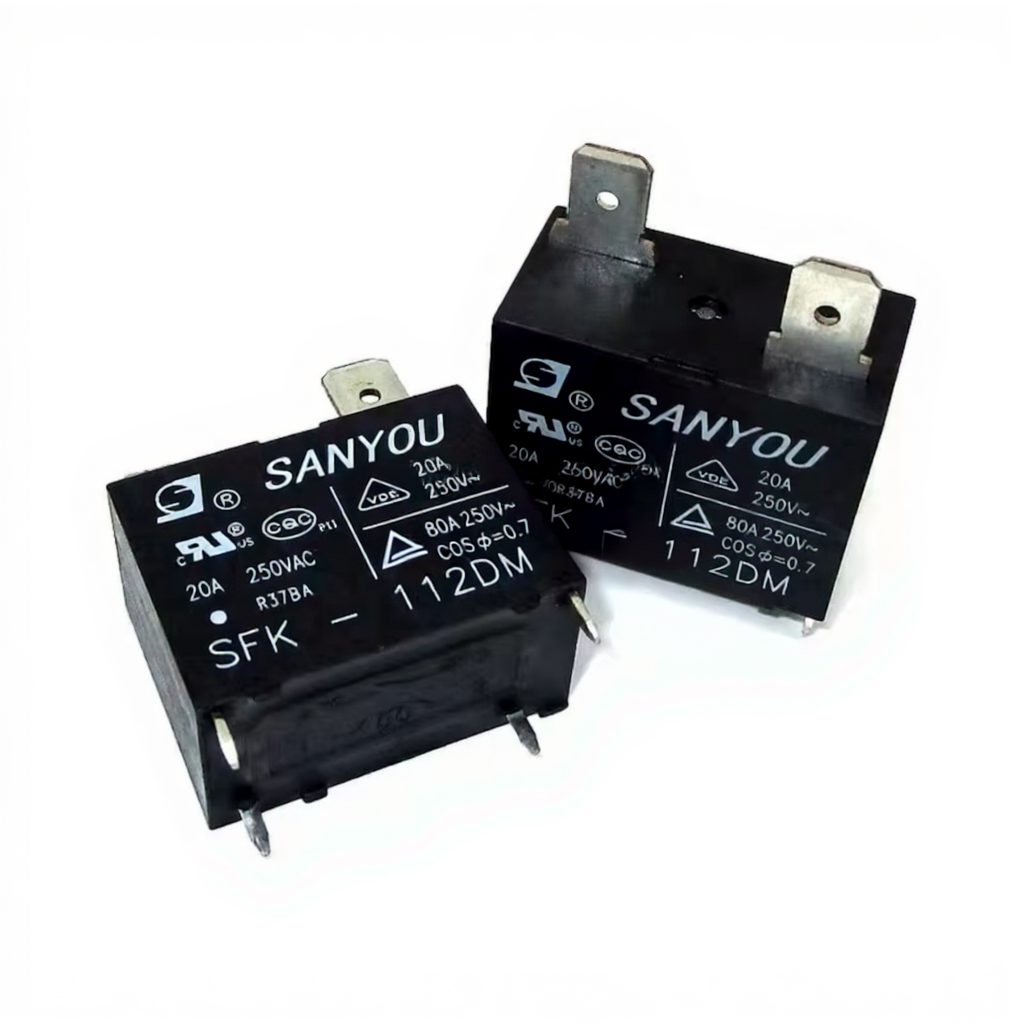

SANYOUC SFK-112DM Air Conditioner Power Relay 12VDC 20A 4Pins
The SFK-112DM is a single-pole, normally open (Form A) electromagnetic relay designed for reliable switching of AC loads. It is commonly used in applications requiring interface between low-power control circuits and higher-power devices such as motors, heaters, or lighting. The relay offers a compact design with PCB mounting, making it suitable for embedded control systems, power strips, and appliance control boards.
With a focus on durability and electrical isolation, this relay provides safe and efficient switching for resistive and inductive loads. It features a silver alloy contact for low resistance and stable performance, and is available in several coil voltage options to match various control voltages. The relay is widely used in automation, HVAC, industrial equipment, and home appliances due to its robust construction and compliance with international standards.
Features:
- Single pole, normally open (1 Form A).
- Silver alloy contacts for reliable switching.
- Compact PCB-mount design.
- Suitable for motor and resistive/inductive loads.
- International safety certifications (UL/C-UL, VDE, CQC).
- Low power consumption coil.
- High mechanical and electrical life.
Specifications:
| Parameter | Value |
|---|---|
| Contact Arrangement: | 1 form A |
| Contact Material: | Silver alloy |
| Max Contact Resistance: | 50mΩ |
| Max Switching Voltage: | 250VAC |
| Max Switching Current: | 20A |
| Max Switching Power: | 5,000VA |
| Coil Operating Power: | 0.9W |
| Mechanical Life: | 10,000,000 Operations (min, at 120cpm) |
| Electrical Life: | 100,000 Operations (min, at 20cpm) |
Pinout:
Pinout:
| Pin | Function |
|---|---|
| 1 | Coil (-) |
| 2 | Coil (+) |
| 3 | Common (Power In) |
| 4 | Normally Open (Power Out) |

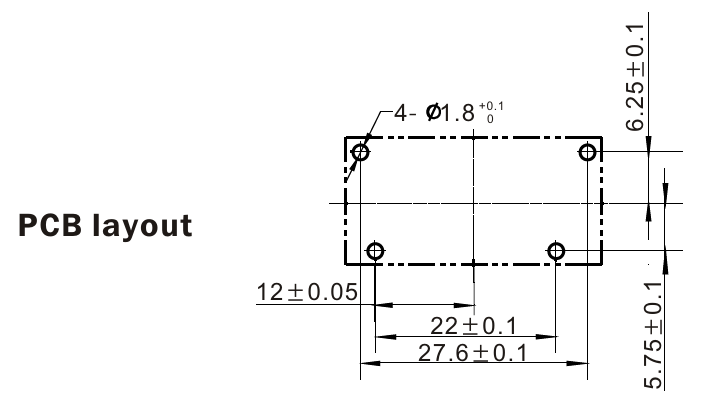

Footprint:
Applications:
- Air conditioner compressor and fan control.
- Automotive high-current switching circuits.
- HVAC system automation.
- Industrial machinery control.
- Relay-based electronic automation.
Packages:
- 1x SANYOUC SFK-112DM Air Conditioner Power Relay 12VDC 20A 4Pins.
