SB10150CT Schottky Barrier Rectifier 10A 150V TO-220AB
The C3259 is a robust NPN power transistor designed for demanding power electronics applications. It combines a high collector-emitter voltage rating, substantial collector current capability and fast switching characteristics to support switching power supplies, motor drivers, audio output stages and other high-voltage, high-power circuits. The device is supplied in a TO-220 package with a metal tab (collector) for easy heatsinking and effective thermal management. Its construction provides low saturation voltage and stable performance under high load and temperature, with protective design margins suitable for industrial use.
Features:
- Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
- Exceeds environmental standards of MIL-S-19500/228.
- Low power loss, high efficiency.
- Low forward voltage, high current capability.
- High surge capacity.
- For use in low voltage, high frequency inverters free wheeling , and polarity protection applications.
- Pb free product are available : 99% Sn above can meet Rohs environment substance directive request.
Specifications:
| Parameter | Value | Unit |
|---|---|---|
| Part Number: | SB10150CT | — |
| Device Type: | Dual Schottky barrier rectifier | — |

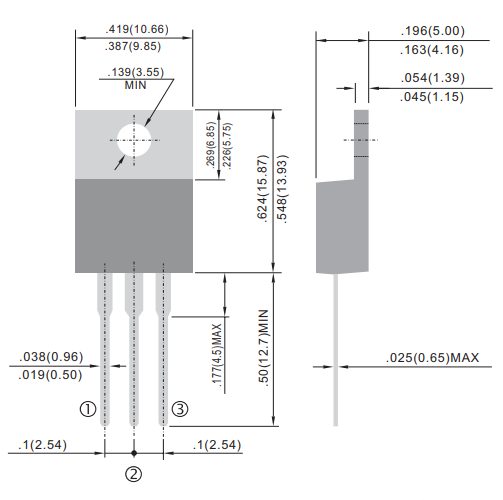

| Package: | TO-220AB (through-hole) | — |
| Average Forward Current (total/device): | 10 | A |
| Peak Repetitive Reverse Voltage: | 150 | V |
| DC Blocking Voltage: | 150 | V |
| RMS Reverse Voltage: | 105 | V |
| Peak Forward Surge Current (8.3 ms): | 150 | A |
| Forward Voltage (per leg 5A): | ~0.92 | V |
| Peak Reverse Current @ 25°C: | ~0.5 | mA |
| Peak Reverse Current @ 100°C: | ~50 | mA |
| Thermal Resistance: | 3.0 | °C/W |
| Storage Temperature: | –50 to +125 | °C |
Pinout:
| Pin Number | Name | Description |
|---|---|---|
| 1 | Anode 1 | Anode of the first diode |
| 2 | Cathode (Common) | Common cathode connection for both diodes / connected to the metal tab |
| 3 | Anode 2 | Anode of the second diode |
Applications
- Switching mode power supplies (SMPS).
- Inverters and UPS systems.
- Free-wheeling and polarity protection diodes.
- High current rectification in power converters.
- DC power systems.
- Motor drive and industrial power electronics.
Packages:
- 1x SB10150CT Schottky Barrier Rectifier 10A 150V TO-220AB.
