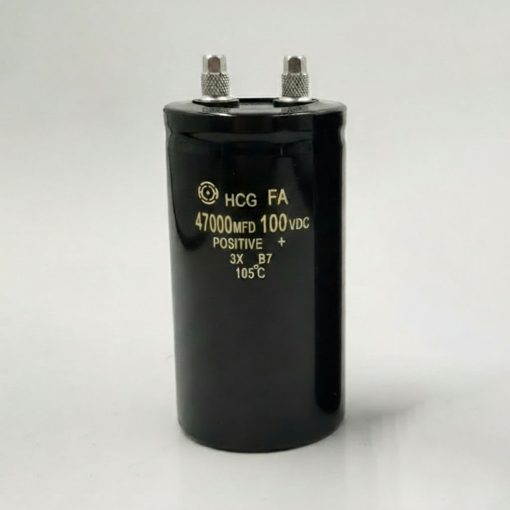

Screw Terminal Aluminum Electrolytic Capacitor 47000uF 100V
The screw-terminal aluminum electrolytic capacitor rated at 47,000 µF and 100 V is engineered to act as a large-capacity energy reservoir in high-power DC systems, where substantial charge storage and smoothing of bus-voltage fluctuations are required. With its considerable capacitance and the 100 V rating, it enables stable operation of conversion circuits, buffering transients and supporting heavy loads with dependable performance.
Housed in a robust metal can and provided with screw-type terminals, this component is intended for heavy-duty installations where secure mechanical and electrical connections are vital. Internally, the aluminum foil and electrolyte system are optimized for low impedance and high ripple current capability, making it suitable for continuous duty under stress and in environments with frequent load changes or switching activity.
In use, this 47,000 µF / 100 V screw-terminal capacitor finds a place in major power electronics systems: large inverters, intermediate DC-link banks, industrial power supplies or energy modules where both large energy density and moderate high voltage are necessary. Its construction supports longevity and reliable performance even under demanding conditions, making it a fundamental part of high-energy-buffer designs.
Features:
- Screw-terminal connection for firm mechanical mounting and secure high-current electrical interface.
- Very large capacitance of 47,000 µF at 100 V DC for substantial energy-storage capability.
- Low impedance design with high ripple-current handling capability for demanding use.
- Rugged metal can construction with screw terminals, suited for industrial and high-stress applications.
- Long-lifetime variants (many rated for thousands of hours at 85 °C) for continuous duty.
Specifications:
| Parameter | Value |
|---|---|
| Capacitance: | 47,000 µF |
| Rated Voltage: | 100 VDC |
| Capacitance Tolerance: | ± 20% (typical for this class) |
| Load Life / Endurance: | e.g., 12,000 hours at +85 °C for one model |
| Typical ESR / Max ESR: | e.g., ~5 mΩ in one variant |
| Operating Temperature Range: | –40 °C to +85 °C (many models) |
Applications:
- DC-link capacitors in inverter and power-conversion systems.
- Energy-buffering modules in industrial power supplies.
- Large-scale smoothing/filtering in high-power supply banks.
- Heavy-duty drives and large-scale power-electronics modules.
Package Contents:
- 1x Screw Terminal Aluminum Electrolytic Capacitor 47000uF 100V
