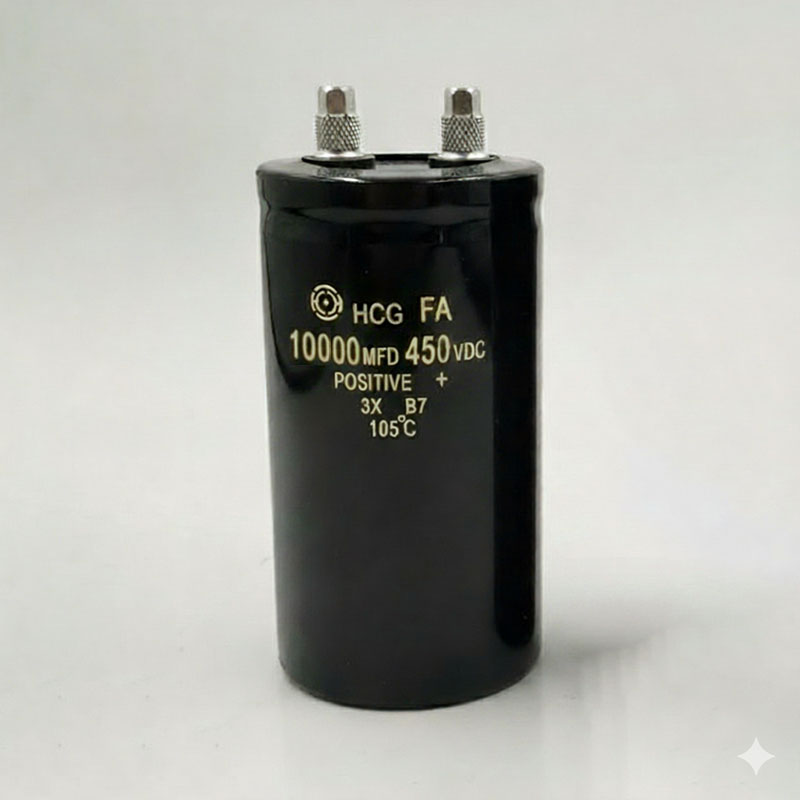

Screw Terminal Aluminum Electrolytic Capacitor 10000uF 450V
High-capacitance 10,000 µF, 450 V screw-terminal aluminum electrolytic capacitor for heavy-duty power-electronics and DC-link energy-buffer applications.
2,300.00 EGP
Buy NowScrew Terminal Aluminum Electrolytic Capacitor 10000uF 450V
This 10,000 µF, 450 V screw-terminal aluminum electrolytic capacitor is engineered to perform in high-energy DC systems, supplying a substantial reservoir of charge to smooth out fluctuations and support large transient currents. Its high capacitance and elevated voltage rating combine to deliver robust voltage stability and buffer capacity in demanding power-electronics applications.
Encased in a sturdy cylindrical metal can and equipped with secure screw-type terminals, the component is designed for heavy-duty installation where strong mechanical and electrical connections are critical. Internally, the winding of aluminum foil, dielectric oxide layer and electrolyte are optimized for low impedance and high ripple current handling, making this capacitor suitable for rigorous continuous-use scenarios.
Ideal for industrial-level power supplies, large inverter DC-links, frequency convertors or energy‐storage modules, this capacitor supports systems where both high voltage and high capacitance are required simultaneously. Its construction permits long operational life under challenging conditions, withstanding heavy load cycles and ensuring system reliability under sustained stress.
Features:
- Screw-terminal connection ensures strong mechanical and electrical mounting.
- High capacitance of 10,000 µF at 450 V DC for significant energy storage.
- Low impedance design with capability for high ripple current operation.
- Rugged metal can construction for industrial and demanding environments.
- Long life-rated design optimized for continuous duty under elevated temperatures and loads.
Specifications:
| Parameter | Value |
|---|---|
| Capacitance: | 10,000 µF |
| Rated voltage: | 450 VDC |
| Operating temperature: | –40 °C to +105 °C (depending on variant) |
| Load life: | 2,000 hours at +85 °C (example from Nichicon) |
| Typical ESR / Max ESR: | ~16–22 mΩ, per one manufacturer spec |
| Capacitance tolerance: | ±20% (typical for screw-terminal large caps) |
Applications:
- DC-link capacitors in inverter systems.
- Energy-buffering in industrial power supplies.
- Frequency converter smoothing in traction or renewable systems.
- Large-scale power conversion & energy-storage modules.
Package Contents:
- 1x Screw Terminal Aluminum Electrolytic Capacitor 10000uF 450V
