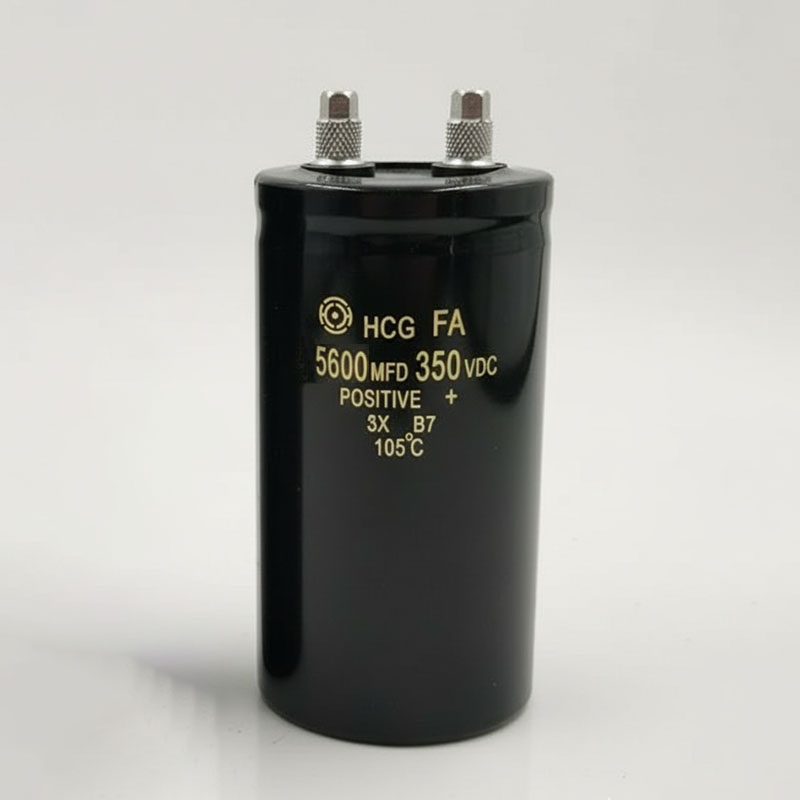

Screw Terminal Aluminum Electrolytic Capacitor 5600uF 350V
The screw-terminal aluminum electrolytic capacitor rated at 5600 µF and 350 V stands as a robust energy-storage element engineered for demanding industrial and power-electronics environments. Its large capacitance combined with a high voltage rating enables it to smooth and sustain DC bus voltages under heavy load and transient conditions, providing a stable buffer against voltage sags and spikes.
Within its rugged metal can and screw-type terminals the element houses a wound aluminum foil dielectric and electrolyte system, built to handle significant ripple currents and deliver dependable performance over extended periods. Designed for high-current, high-voltage circuits it offers extremely low impedance relative to smaller capacitors, enabling efficient energy delivery when the system demands it.
This capacitor is ideal for use where reliability, long life and high energy density are required — for example in inverter DC-link stages, power conversion modules or heavy-duty industrial drives. Its screw-terminal format ensures a secure mechanical and electrical connection, and its construction is optimized to withstand elevated temperatures and demanding duty cycles.
Features:
- Screw-terminal connection for secure, reliable high-current mounting.
- Large 5600 µF capacitance at 350 V rating providing substantial energy storage headroom.
- Low equivalent series resistance (ESR) suitable for high ripple current operation.
- Built to withstand elevated temperatures and long operational lifetimes in industrial duty.
- Rugged metal can construction designed for harsh environments and heavy-duty applications.
Specifications:
| Parameter | Value |
|---|---|
| Capacitance: | 5600 µF |
| Rated voltage: | 350 VDC |
| Capacitance tolerance: | ±20% (or –10%/+50% depending on model) |
| Operating temperature: | e.g. –40 °C to +105 °C |
| Maximum surge voltage: | ~400 V (manufacturer dependent) |
| Typical ESR: | ~12–14 mΩ (depending on size) |
| Ripple current: | manufacturer example ~22.7 A |
| Lifetime (load life): | e.g. 6000 hours at 105 °C (depending on variant) |
Applications:
- DC-link capacitors in inverters.
- Power supply smoothing in industrial drives.
- Energy backup in UPS and uninterruptible systems.
- Filtering and buffering in renewable-energy converters.
Package Contents:
- 1x Screw Terminal Aluminum Electrolytic Capacitor 5600uF 350V
