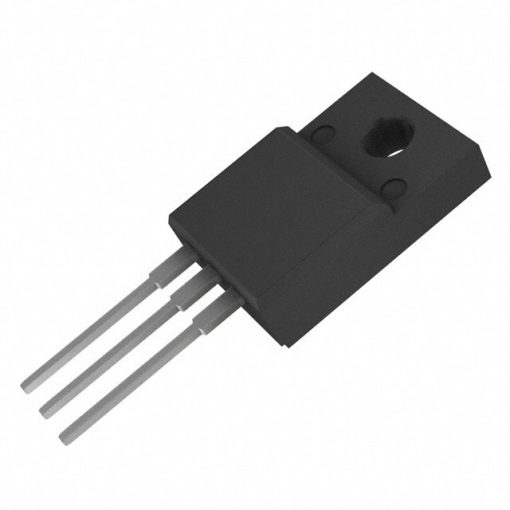

SDURF2060CT ITO-220AB Fast Recovery / High Efficiency Diode
The SDURF2060CT Ultrafast Rectifier (ITO-220AB) offers 600V reverse voltage, 20A current, and ultra-fast switching. Ideal for SMPS, UPS, and motor control, it features low leakage, high surge capacity, and Pb-free design.
25.00 EGP
Buy NowSDURF2060CT ITO-220AB Fast Recovery / High Efficiency Diode
The SDURF2060CT is a high-efficiency ultrafast rectifier designed for demanding applications requiring fast switching and high current capability. Encased in the robust ITO-220AB package, this Pb-free Diode offers reliable performance in a variety of power management circuits. With a peak repetitive reverse voltage of 600V and an average rectified forward current of 20A per device, it is ideal for modern electronic designs.
Features
- Ultra-fast switching for efficient operation
- High current capability up to 20A per device
- Low reverse leakage current for enhanced reliability
- High surge current capability with 100A peak
- Pb-free
Specifications
| Characteristics | Symbol | Condition | Max | Units |
|---|---|---|---|---|
| Peak Repetitive Reverse Voltage | VRRM | – | 600 | V |
| Working Peak Reverse Voltage | VRWM | – | 600 | V |
| DC Blocking Voltage | VR | – | 600 | V |
| Average Rectified Forward Current | IF(AV) | 50% duty cycle @ Tc=100°C, rectangular wave form | 10 (Per Leg) / 20 (Per Device) | A |
| Peak One Cycle Non-Repetitive Surge Current (Per Leg) | IFSM | 8.3ms, Half Sine pulse | 100 | A |
Electrical Characteristics
| Characteristics | Symbol | Condition | Typ | Max | Units |
|---|---|---|---|---|---|
| Forward Voltage Drop (Per Leg)* | VF1 | @10A, Pulse, TJ = 25°C | 1.33 | 2.2 | V |
| Forward Voltage Drop (Per Leg)* | VF2 | @10A, Pulse, TJ = 125°C | 1.27 | 2.0 | V |
| Reverse Current (Per Leg)* | IR1 | @VR = rated VR, TJ = 25°C | 0.3 | 10 | µA |
| Reverse Current (Per Leg)* | IR2 | @VR = rated VR, TJ = 125°C | 84 | 500 | µA |
| Reverse Recovery Time (Per Leg) | trr | IF=500mA, IR=1A, and Irm=250mA | 42 | 50 | ns |
Applications
- Antiparallel diode for high-frequency switching devices
- Anti-saturation diode
- Free-wheeling diode in converters and motor control circuits
- Rectifiers in switch mode power supplies (SMPS)
- Inductive heating and melting
- Uninterruptible power supplies (UPS)
- Ultrasonic cleaners and welders

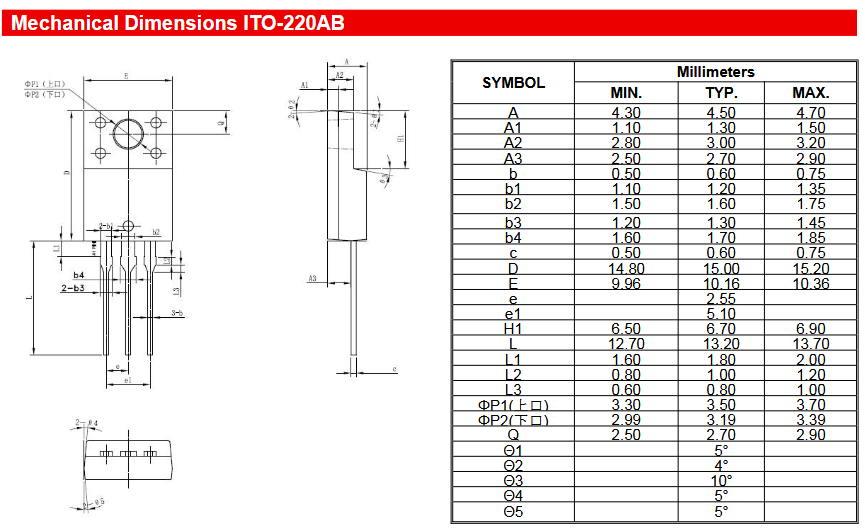

DataSheet
| Weight | 1 g |
|---|
