SEMIKRON SKKT 570/16E Thyristor Module 1.6KV 156A
High-power SEMIPACK 5 SKKT 570/16 E thyristor module offering 1 600 V blocking voltage and 570 A average current in an isolated, high-reliability design.
10,000.00 EGP
Buy NowSEMIKRON SKKT 570/16E Thyristor Module 1.6KV 156A
The SEMIKRON SKKT 570/16 E is a robust, high-power thyristor module designed for demanding industrial control applications. Packaged in the compact SEMIPACK® 5 format, it integrates dual thyristor chips on an aluminium nitride ceramic-insulated metal baseplate, ensuring excellent thermal conductivity and electrical isolation.
Each thyristor features a precious-metal pressure contact system for superior long-term reliability and an amplifying gate structure that delivers precise, low-noise triggering and repeatable switching performance. With a compact footprint and low thermal resistance from junction to case, the module offers efficient heat transfer to heatsinks, simplifying system design and reducing cooling requirements. Rated for a repetitive peak reverse voltage of 1 600 V and average on-state currents up to 570 A (at Tc = 85 °C), it supports a wide range of AC and DC motor drives, soft starters, and power conversion systems.
The module’s mechanical design includes standardized M6 and M10 mounting interfaces for straightforward heatsink attachment, while its UL recognition underscores compliance with stringent safety standards. Built to withstand high surge currents and voltage transients, the SKKT 570/16 E provides a durable, high-performance solution for modern power electronics.
Features:
- Heat transfer through aluminium nitride ceramic-isolated metal baseplate.
- Precious-metal pressure contacts for high reliability.
- Thyristor with amplifying gate for precise triggering.
Specifications:
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM): | 1 600 V |
| RMS On-State Current (ITRMS): | 1 000 A |
| Average On-State Current (IT(AV), Tc = 85 °C): | 570 A |
| Surge Current (ITSM, Tj = 25 °C, 10 ms): | 19 000 A |
| Critical Rate of Rise of Off-State Voltage (dv/dt)cr: | 1 000 V/µs |
| Thermal Resistance Junction-to-Case (per module, DC): | 0.034 K/W |
| Isolation Voltage (Visol, 50 Hz, 1 min): | 3 000 V |
| Operating Junction Temperature (Tj): | –40 … 135 °C |
| Module Weight: | 1 400 g |
| Mounting Torque (M6): | 4.25 … 5.75 Nm |
| Mounting Torque (M10): | 10.2 … 13.8 Nm |

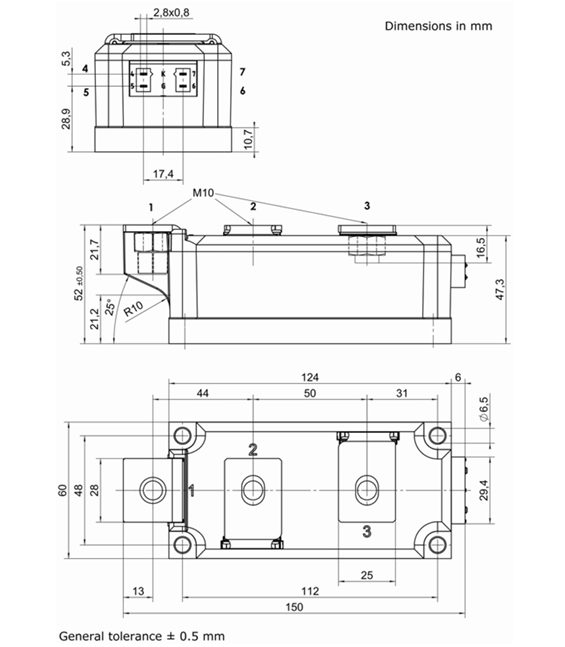

Dimensions of thyristor modules SKKT 500/16E:
Applications:
- AC motor softstarters
- Input converters for AC inverter drives
- DC motor control (e.g. machine tools)
- Temperature control (e.g. ovens, chemical processes)
- Professional light dimming (studios, theaters)
Package Contents:
- 1x SEMIKRON SKKT 570/16E Thyristor Module 1.6KV 156A
Datasheet
