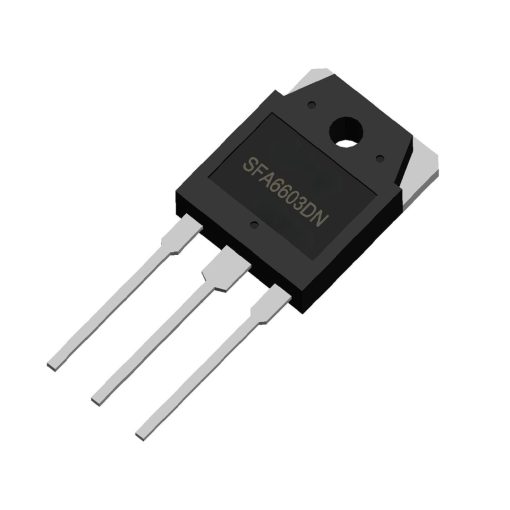

SFA6603DN 66A 300V Fast Recovery Diode TO-3P
The SFA6603DN 66A 300V Fast Recovery Diode TO-3P is a high-performance dual ultrafast recovery diode designed for demanding power electronics applications. This device integrates two diodes in a common cathode configuration, enabling compact and efficient circuit design for high-current systems.
Features:
- Ultrafast recovery diode with soft recovery characteristics.
- Dual diode configuration with common cathode structure.
- High current capability up to 66A.
- Reverse voltage rating up to 300V.
Specifications:
| Parameter | Value |
|---|---|
| Maximum Repetitive Peak Reverse Voltage | 300V |
| Maximum DC Blocking Voltage | 300V |
| Average Rectified Forward Current | 66A |
| Peak Forward Surge Current | 300A |
| Maximum Forward Voltage | 1.4V |
| Reverse Recovery Time | 55ns |
| Operating Junction Temperature | -65°C to +150°C |

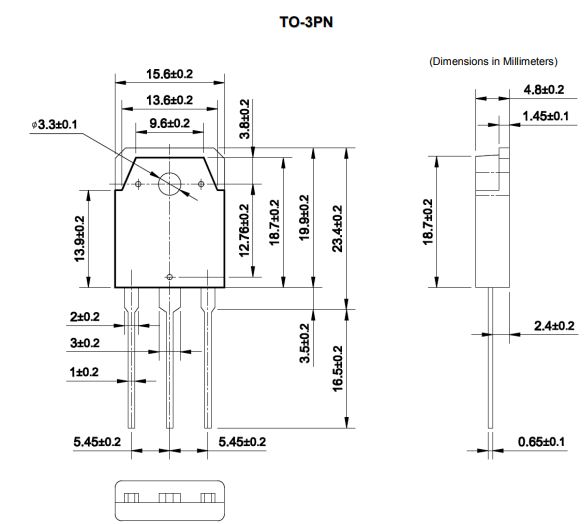

| Package | TO-3P |
| Diode Configuration | Dual common cathode |

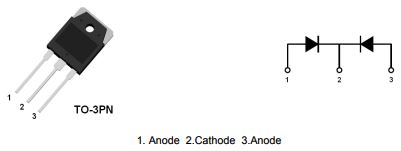

Pin Configuration:
Applications:
- Switching Mode Power Supplies (SMPS).
- Output rectification in power converters.
- Motor freewheeling and drive circuits.
- Industrial welding equipment.
- Power switching and inverter systems.
- High-frequency rectification applications.
Package Include:
1x SFA6603-DN 66A 300V Fast Recovery Diode TO-3P.
