SGT60N60FD2 Field Stop IGBT Transistor 600V 60A TO-247
The SGT60N60FD2 is a 600V, 60A Field Stop Insulated Gate Bipolar Transistor (IGBT) packaged in a TO-247 housing. It is designed to offer enhanced efficiency and performance in power conversion and control applications. This transistor utilizes Field Stop technology, which improves switching characteristics and minimizes conduction losses, making it ideal for applications like induction heating, UPS systems, and power factor correction (PFC) circuits.
Built with robust materials, the SGT60N60FD2 features an advanced gate control for efficient switching, and its high current rating of 60A at 600V makes it suitable for medium to high-power systems. It also incorporates a fast recovery diode to ensure quick turn-off times, reducing switching losses. This device is engineered to perform at high levels, even at elevated temperatures, ensuring reliability and longevity in demanding conditions.
The SGT60N60FD2 offers low conduction losses, fast switching capabilities, and high efficiency, which significantly reduces energy consumption. The combination of these factors makes it a reliable choice for industries requiring high-performance, cost-effective power control components. This IGBT transistor is a key element in applications that demand optimal power conversion efficiency and system longevity.
Features:
- 600V, 60A current handling capability.
- Field Stop IGBT technology for reduced switching losses.
- Fast switching speeds for efficient operation.
- Low conduction loss for improved energy efficiency.
- Built-in fast recovery diode for enhanced performance.
- High input impedance for stable control.
- Designed for medium and high-power applications.
- Robust TO-247 package for easy mounting.
- Operates in a wide temperature range.
- Ideal for power electronics, UPS, and industrial motor control.
Specifications:
| Property | Description |
|---|---|
| Product Type: | IGBT Transistor |
| Voltage Rating: | 600V |
| Current Rating: | 60A |
| Power Dissipation: | 321W |
| Package Type: | TO-247 |
| Gate-Emitter Voltage: | ±20V |
| Collector-Emitter Saturation Voltage (VCE(sat)): | 2.2V at 60A |
| Gate Charge (Qg): | 179nC |
| Switching Loss: | 5.49mJ |
| Operating Temperature Range: | -55°C to +175°C |
| Junction to Case Thermal Resistance: | 0.39°C/W |

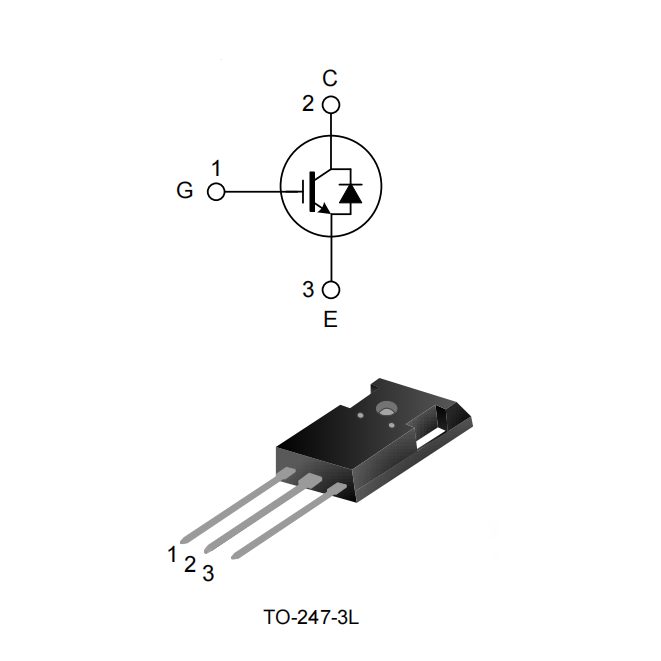

Mechanical Drawing:
Applications:
- Power Conversion Systems.
- Uninterruptible Power Supply (UPS).
- Power Factor Correction (PFC) Circuits.
- Induction Heating.
- Motor Control.
- Inverters.
- Industrial Power Supply.
Package Contents:
- 1x SGT60N60FD2 Field Stop IGBT Transistor 600V 60A TO-247
