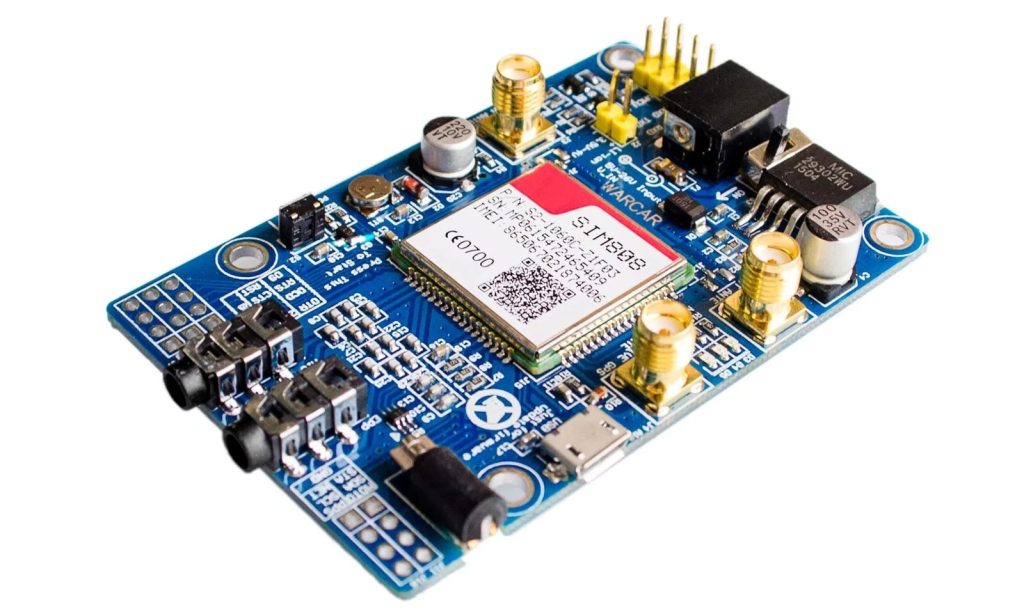

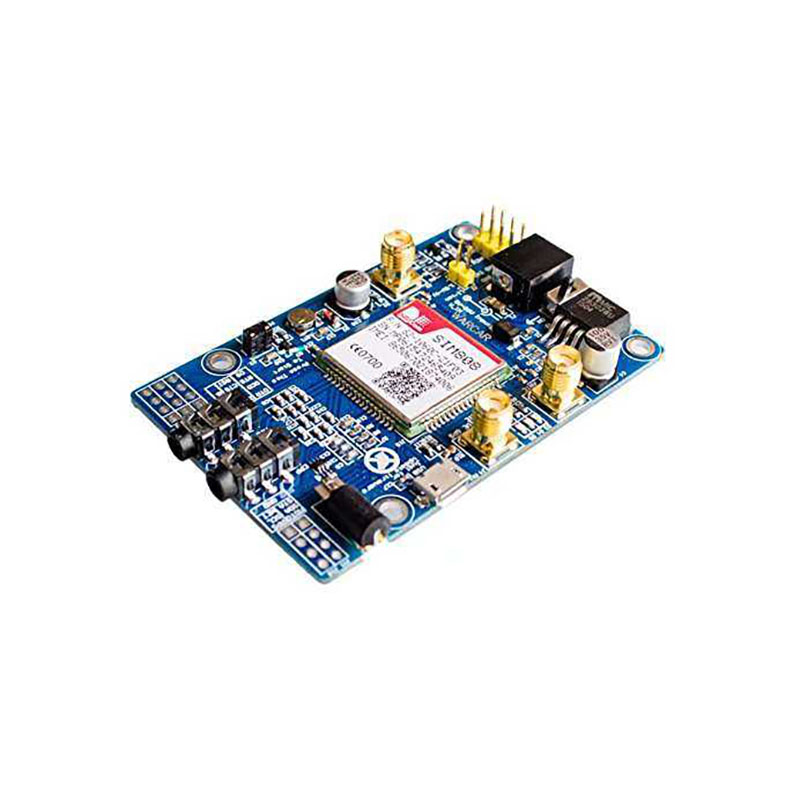

SIM808 GPS-GSM-GPRS Module
The SIM808 is a compact, surface-mount communications module that integrates a GSM/GPRS modem and a GNSS receiver into a single SMT package. It was designed to let product designers add cellular voice/data and satellite positioning without integrating multiple separate chips, saving board area and reducing development time.
The unit exposes industry-standard interfaces (UART/USB/GPIO/ADC/PCM and antenna pads) and is controlled with standard AT commands. Onboard firmware supports data protocols and networking stacks so the host can send/receive SMS, voice and packet data (GPRS) while the GNSS engine supplies position data in standard NMEA formats.
Emphasizing ease of integration, the SIM808 combines power-management modes and an embedded feature set (AT control model, TCP/IP stack support and accessory interfaces) so it can be embedded into battery-powered trackers, vehicle telematics, and other location-aware devices with minimal external components.
Features:
- Integrated GSM/GPRS modem and GNSS (GPS) receiver in a single SMT module.
- Quad-band cellular support and GPRS data capability.
- Controlled via standard AT command set (3GPP + SIMCOM enhancements).
- Embedded TCP/IP, FTP/HTTP and SSL stacks (for data services).
- Multiple interfaces: UART, USB, GPIO, ADC, PCM, SIM interface and antenna pads.
- Low-power design with sleep modes for battery applications.
- Optional Bluetooth and other firmware-dependent features.
Specifications:
| Parameter | Value |
|---|---|
| Cellular bands: | Quad-band 850 / 900 / 1800 / 1900 MHz. |
| GPRS: | Multi-slot class 12/10; mobile station class B; max ~85.6 kbps. |
| Supply voltage: | 3.4 – 4.4 V (recommended ~4.0 V). |
| Dimensions: | 24 × 24 × 2.6 mm. |
| Weight: | ~3.3 g. |
| Operating temperature: | −40 °C to +85 °C. |
| GNSS receiver: | 22 tracking / 66 acquisition channels, L1 C/A. |
| GNSS sensitivity: | Tracking: −165 dBm; Cold start: −148 dBm. |
| GNSS TTFF: | Cold: ~32 s; Warm: ~3 s; Hot: <1 s. |
| GNSS accuracy: | Horizontal < 2.5 m (CEP). |
| Interfaces: | 68 SMT pads incl. analog audio, PCM (opt), SPI (opt), USB, UART, SIM, GPIO, ADC, antenna pads. |
| Certifications: | CE, FCC (and related regional certificates). |
Applications:
- Vehicle tracking and telematics.
- Asset & logistics tracking.
- Personal tracking (wearables/pet trackers).
- Remote monitoring and telemetry systems.
- IoT data acquisition and wireless sensors.
- Security & alarm communication.

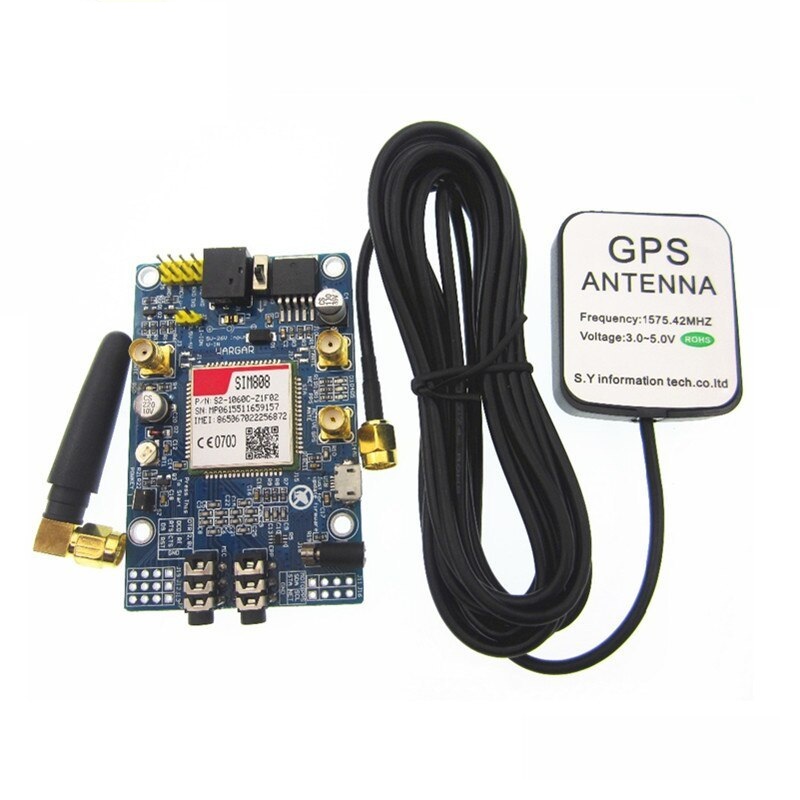

Package Contents:
- 1× SIM808 module.
- 1× GSM (cellular) antenna.
- 1× GPS antenna.
