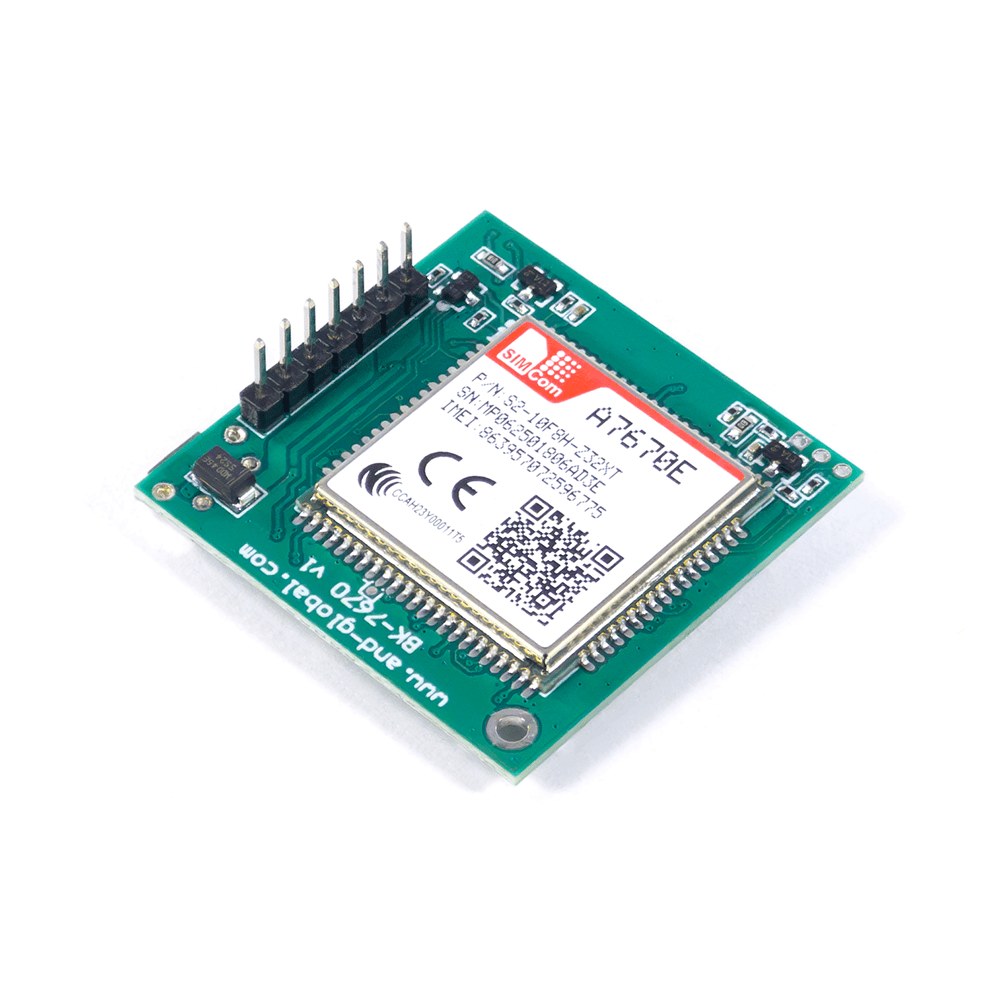

SIMCOM A7670E LTE Development Board with Antenna
The SIMCOM A7670E is a powerful and compact LTE module. It is an ideal solution for developing IoT applications that require reliable and fast cellular connectivity. This development board is designed to be compatible with popular microcontrollers like Arduino and Raspberry Pi, making it a versatile choice for both hobbyists and professional developers. The board simplifies the process of integrating cellular communication into your projects, allowing for seamless data transfer, voice capabilities, and more.
Features
- Reliable Connectivity.
- Broad Network Compatibility.
- Voice and Data Capabilities.
- Low Power Consumption.
- Wide Operating Temperature.
- Rich Peripheral Interfaces.
Specifications
| Feature | Details |
|---|---|
| Development Board | |
| LTE Module | SIMCOM A7670E |
| Wireless Communication Modes | LTE-FDD, GSM, GPRS, EDGE |
| LTE Category | LTE Cat-1 |
| LTE Data Rates | Up to 10Mbps (Downlink), 5Mbps (Uplink) |
| Frequency Bands | LTE-FDD: B1, B3, B5, B7, B8, B20 |
| GSM/GPRS/EDGE: 900/1800 MHz | |
| VoLTE Support | Yes, Voice over LTE supported |
| Supply Voltage | 3.4V to 4.2V (Recommended: 3.8V) |
| Dimensions (Module) | 37 x 37 x 6 mm |
| Operating Temperature | -40°C to +85°C |
| Interfaces | UART, I2C, USB 2.0, GPIO, ADC, PCM |
| Antenna Connector | IPEX |
| Dimensions (Antenna) | 58 mm x 67 mm x 0.2 mm |
| Included LTE Antenna | |
| Antenna Type | Full Band LTE FPC Antenna |
| Antenna Frequency Range | 698-960 MHz / 1710-2690 MHz |
Applications
- Smart Metering
- Asset Tracking
- Wearable Devices
- Industrial IoT
- Smart City Applications
- Remote Monitoring and Control
Package Content
- 1 x SIMCOM A7670E LTE Development Board
- 1 x Full Band LTE FPC Antenna
