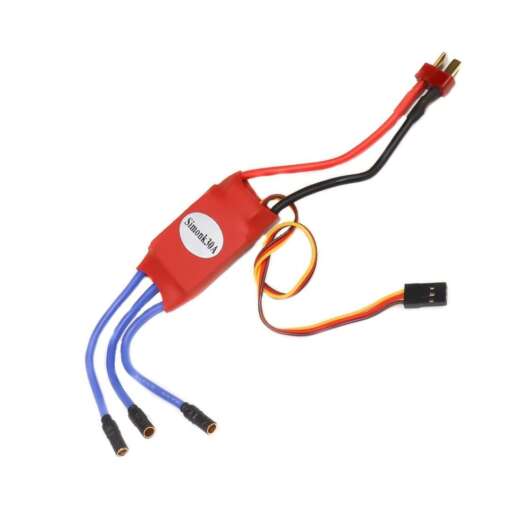

Simonk ESC (Speed Controller for Brushless Motor) 30A with T-Type Connector + Motor Connectors

Simonk 30A BLDC ESC Electronic Speed Controller is specifically made for quadcopters and multi-rotors. Which provides faster and better motor speed control giving better flight performance compared to other available ESCs.

Simonk 30A BLDC ESC Electronic Speed Controller can drive motors that consume current up to 30A. It works on 2-3S LiPo batteries. This electronic speed controller offers a battery eliminator circuit (BEC) that provides 5V and 2A to the receiver so we don’t need an extra receiver battery.

This version of the ESC also includes backward-polarity protection and protection on the 5V receiver line, this means that if you accidentally attach a battery backward it won’t destroy your motor controller and other BEC won’t affect the ESC.

If you are wandering to build a drone and don’t know what will be the best ESC for you then worry no more, we have got your back. At Robu, we have everything for you to get started with your drone project.

Connections:

ESC CONNECTORS:

• Battery Side – Male Deans ( T ) Connector.

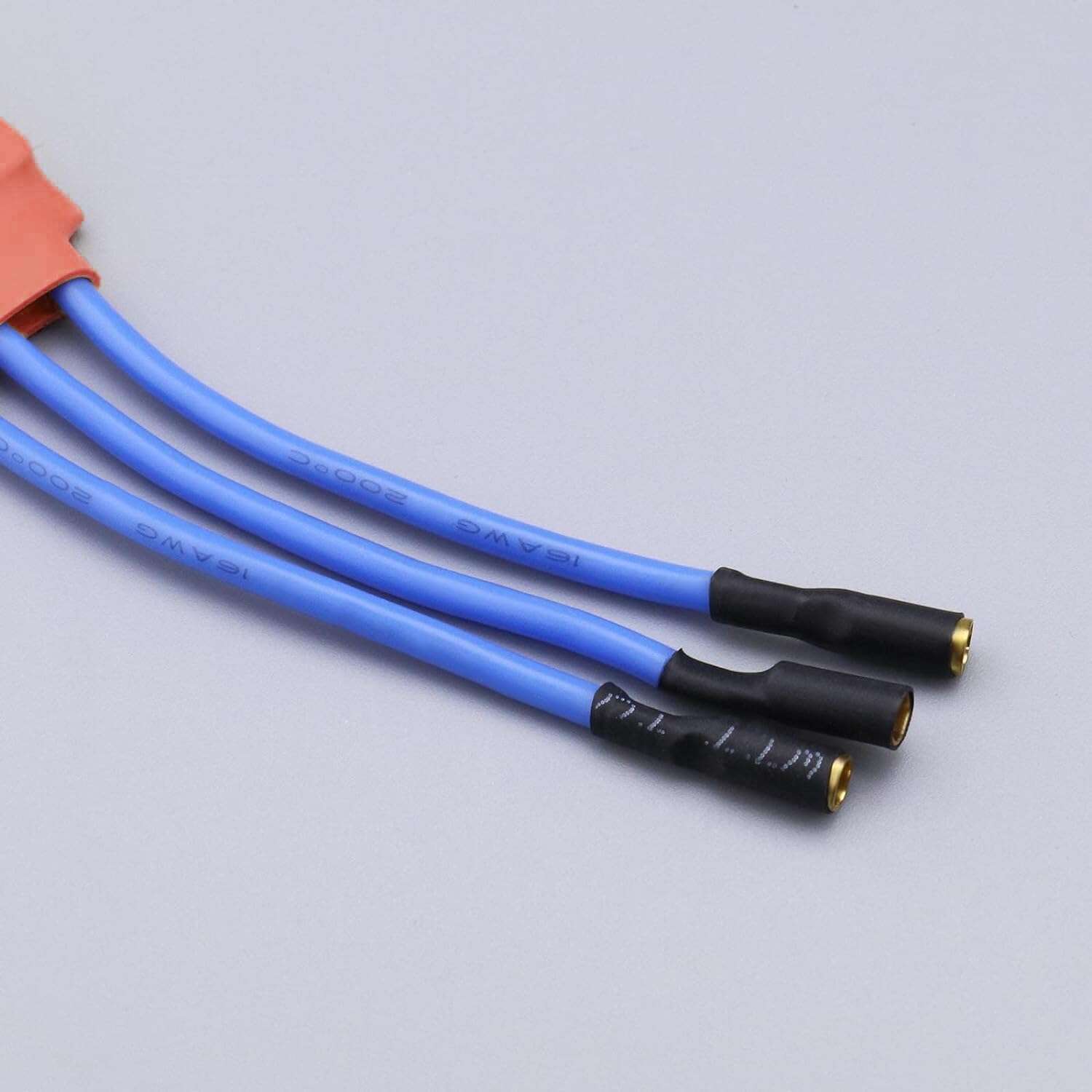

• Motor Side – Female 3.5mm Gold Connector.

CONNECTIONS:

• Power: Red – 7.4V to 16.8V
  Black – GND
• Servo: Yellow – Throttle Input
  Red – 5V, 2Amp Out
  Brown – GND
• BLDC Motor: 3 Blue Wires – BLDC ESC Connections

Warning:

When we connect BLDC ESC directly to the remote control receiver; never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control; it may result in full throttle applied to the motor and it will rotate at full speed.

SAFE POWER FUNCTION OF THE SIMONK 30A ESC MOTORS

• High-quality MOSFETs for BLDC motor drive.
• The throttle calibration function of the Simonk ESC motor helps you to adapt to different remote throttle travel differences and improve throttle response smoothly.
• It provides low voltage protection as well as reverse polarity protection.
• It provides protection on the 5v lines.
• High-performance heat sink for better thermal management.

Features:

• Current Rating: 30A, suitable for driving motors that consume up to 30A of current.
• Voltage: Compatible with 2S-3S LiPo batteries (7.4V to 11.1V).
• BEC Output: Provides 5V and 2A to power the flight controller and other onboard modules.
• Firmware: Flashed with SimonK firmware for improved motor speed control and performance.
• Protection Features: Includes low-voltage protection, over-heat protection, and throttle signal loss protection.
• Connections: Features bullet connectors for easy and quick installation.
• Compatibility: Works well with A2212 brushless motors (1000kv, 1400kv, 2200kv).
• Applications: Ideal for use in quadcopters, multi-rotor drones, and RC planes.

Specifications:
