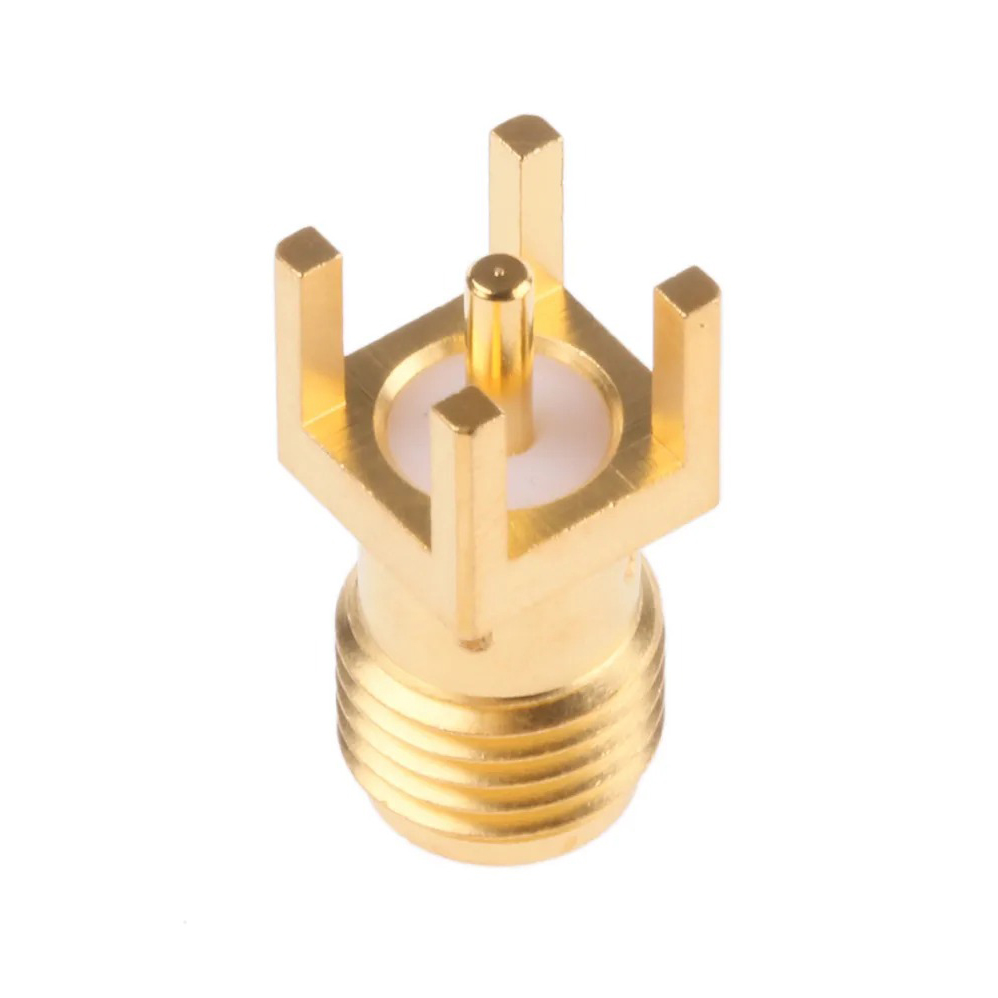

SMA Straight PCB Mount, Jack, Gold, 50Ω, Through Hole
This connector jack provides a reliable connection point for SMA (Sub Miniature version A) coaxial cables on printed circuit boards (PCBs). This component has a centre contact made of gold-plated copper material, which is highly conductive and corrosion-resistant, so it ensures a strong and long-lasting connection. Thanks to the jack’s low impedance of 50Ω (ohms), there’s minimal resistance to energy flow, ensuring you get speedy signal transmission. You’ll find this type of component commonly used in communication devices.
Specifications:
| Attribute | Value |
| Gender | Female |
| Coaxial Connector Type | SMA Connector |
| Mounting Type | PCB Mount |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Size | Subminiature |
| Operating Frequency | 18GHz |
| Body Plating | Gold |
| Series | SMA |
| Contact Material | Copper |
| Contact Plating | Gold |
Drawing
Applications
- Radio frequency (RF) communication devices
- Satellite antennae
