SMA KY3 Straight Crimp Female Jack Connector for Cable RG58/RG142/LMR195 50 Ohm (Full Copper)

SMA KY3 Straight Crimp Female Jack Connector

The SMA KY3 Straight Crimp Female Jack Connector is a high-performance RF connector engineered for seamless integration with RG58, RG142, and LMR195 coaxial cables. Featuring a robust brass body with gold plating, this connector ensures excellent electrical conductivity and resistance to corrosion. Its PTFE dielectric provides superior insulation, making it ideal for high-frequency applications up to 18 GHz. The crimp attachment method allows for quick and secure installation, catering to professionals and hobbyists in need of reliable RF connections for wireless communication, antenna systems, and test equipment.

Features

• High-Quality Construction: Brass body with gold plating for enhanced conductivity and corrosion resistance.
• PTFE Dielectric: Ensures optimal signal integrity at high frequencies.
• Crimp Attachment: Facilitates secure and efficient cable termination.
• Cable Compatibility: Designed for RG58, RG142, and LMR195 coaxial cables.
• 50 Ohm Impedance: Matches standard RF system requirements.
• Straight Configuration: Simplifies integration in linear cable assemblies.
• Female Jack Connector: Provides a secure, threaded connection for RF applications.

Specifications

Applications

• Wireless Communication Systems: Ensures reliable signal transmission in WiFi, 4G LTE, and other wireless networks.
• RF Antennas and Modules: Provides secure connections for antenna assemblies in telecommunications and broadcasting.
• Test and Measurement Equipment: Supports precise signal testing in laboratory and field environments.
• GPS Systems: Facilitates accurate signal transfer in navigation and positioning systems.
• Microwave Systems: Enables high-frequency performance in microwave communication setups.
• Military and Aerospace Applications: Meets stringent requirements for durability and performance in harsh environments.

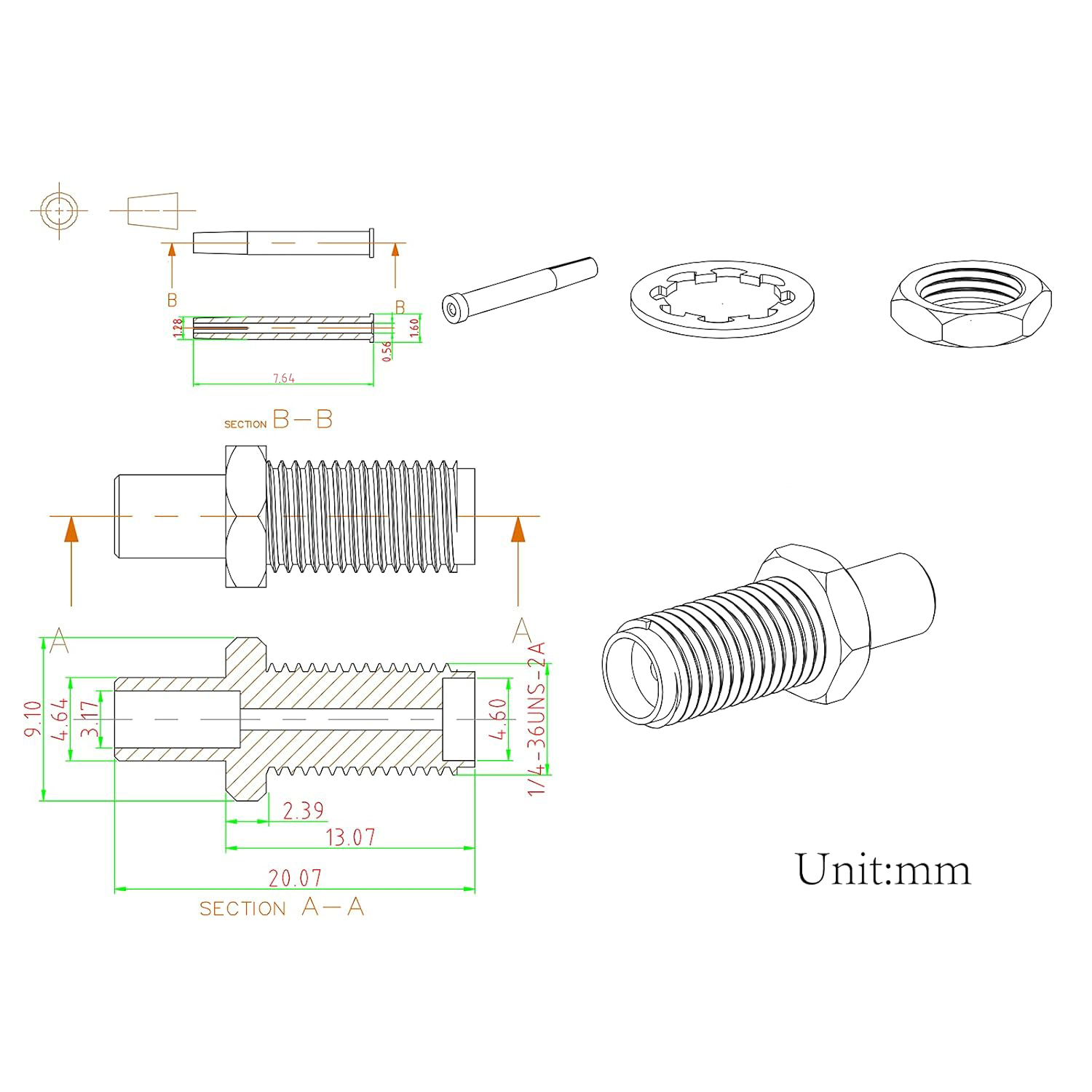

Drawing
