Sold out

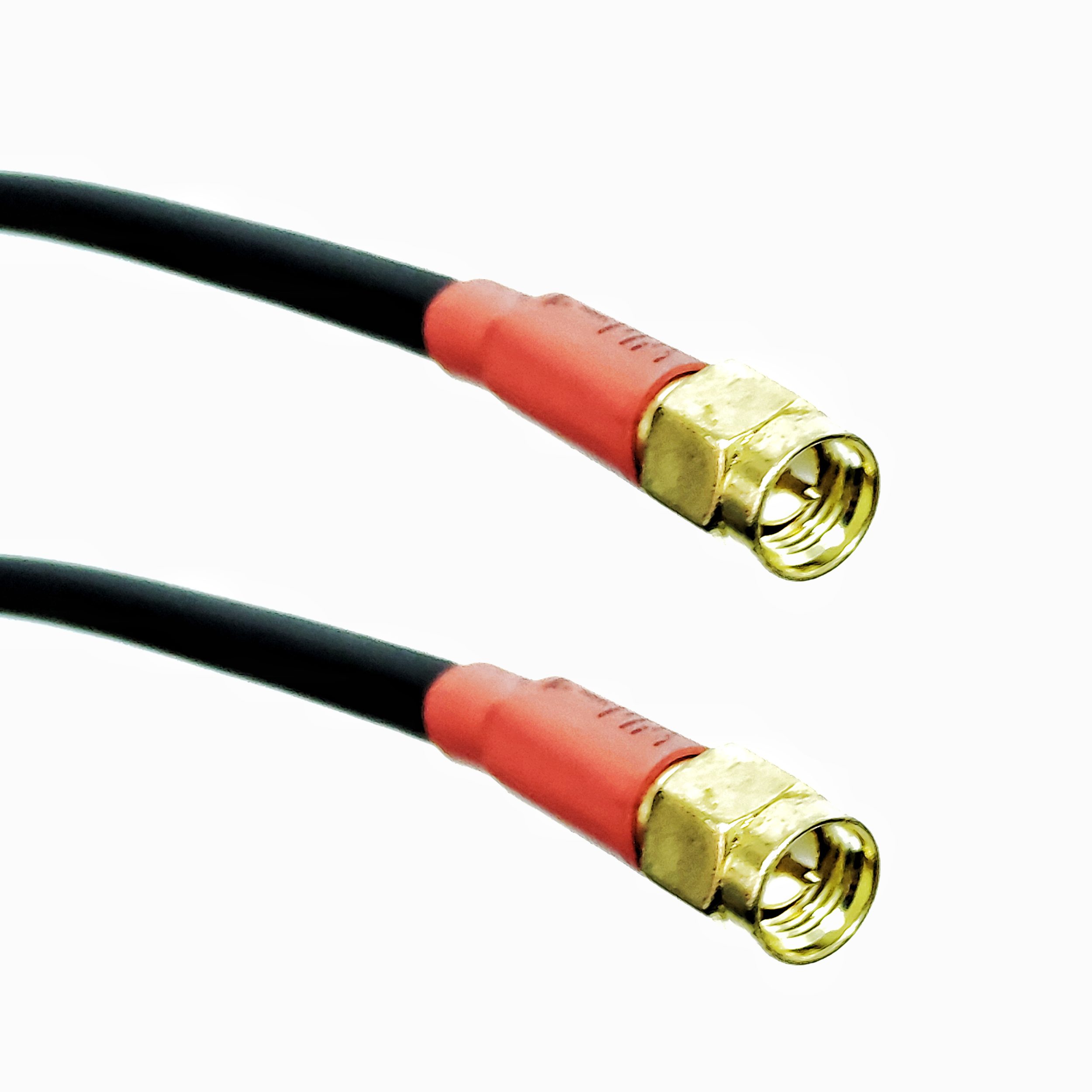

SMA Male to SMA Male Extension Cable 18cm
150.00 EGP
Specification
- RF coaxial pigtail jumper or antenna extension cable
- Connectors: 1 x SMA plug > 1 x SMA plug
- Impedance: 50 Ohm
- Cable Attenuation: 0.59 dB per meter @ 2.4 GHz / 0.93 dB per meter @ 5.7 GHz
- Cable Diameter: 4.7 mm
- Cable colour: Black
- SMA Plugs covered with Red Heatshrink
- Insulation Material: PVC
- Length incl. connectors (L): ca. 18cm
| Style | Flexible and RG-series |
| Connector 1 | SMA |
| Connector 1 gender | Male |
| Connector 1 Orientation | Straight |
| Connector 2 | SMA |
| Connector 2 gender | Male |
| Connector 2 Orientation | Straight |
| Cable Type | RG174 |
| Frequency | 6 GHz |
System requirements
- Device with two free SMA connectors
Applications
- GSM system, GPS navigation system, wireless communication system, Antennas, car radio.
- Test equipment microwave components, data transmission, LAN system, satellite transmission, aviation equipment,etc.
