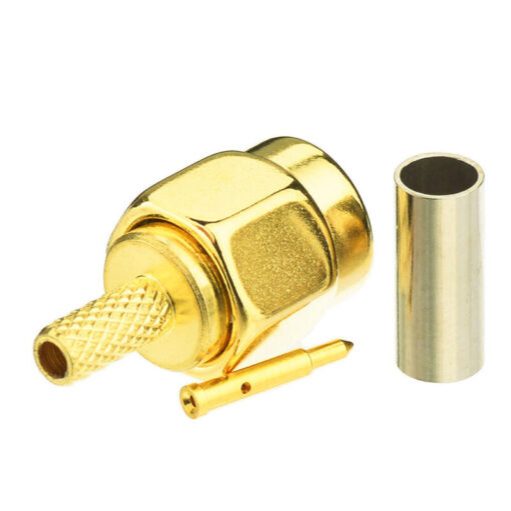

SMA Straight Crimp Male Plug Connector J1.5 for Cable RG174/RG316/LMR100A 50 Ohm (Full Copper)

SMA Straight Crimp Male Plug Connector J1.5

The SMA Straight Crimp Male Plug Connector J1.5 is a high-performance RF connector designed for seamless integration with RG174, RG316, and LMR100A coaxial cables. Constructed from copper with gold plating, this connector ensures excellent electrical conductivity and corrosion resistance. Its straight crimp design facilitates easy and secure installation, making it an ideal choice for a wide range of RF applications, including telecommunications and wireless systems. The connector adheres to industry standards, providing reliable performance in high-frequency environments.

Features

• Material: Copper with gold plating for enhanced conductivity and durability
• Design: Straight crimp for straightforward and secure assembly
• Compatibility: Supports RG174, RG316, LMR100A, and similar coaxial cables
• Impedance: 50 Ohm, ensuring optimal signal integrity
• Frequency Range: DC to 6 GHz, suitable for high-frequency applications
• Coupling Mechanism: Threaded for reliable and robust connections
• Temperature Range: Operates effectively from -55°C to +165°C
• Mechanical Life: Minimum 500 mating cycles for long-term reliability

Specifications

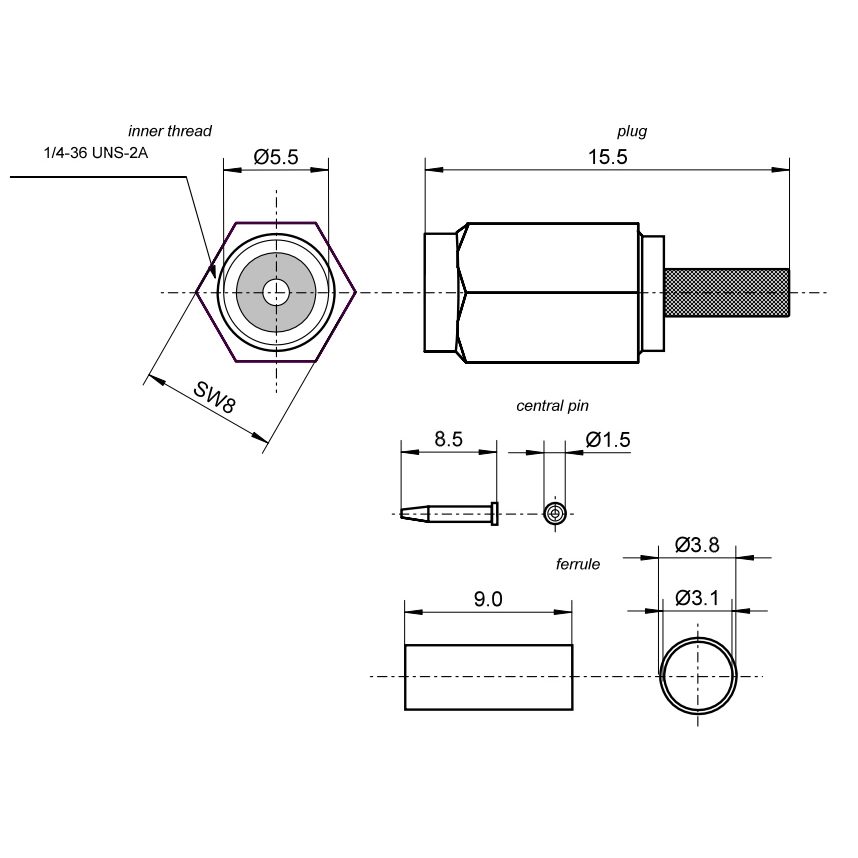

Mechanical Drawing

Applications

• RF and Microwave Systems: Ensures reliable signal transmission in high-frequency circuits.
• Antennas: Commonly used in mobile telephone antennas, WiFi antenna systems, and radio astronomy.
• Wireless Communication Devices: Supports connectivity in devices like routers, access points, and cellular equipment.
• Test and Measurement Equipment: Ideal for precise measurements in laboratory and field settings.
• GPS Systems: Provides stable connections for GPS receivers and modules.
• Radar Systems: Used in radar applications requiring high-frequency performance.
• Software-Defined Radio (SDR): Compatible with USB SDR dongles for radio frequency applications.
