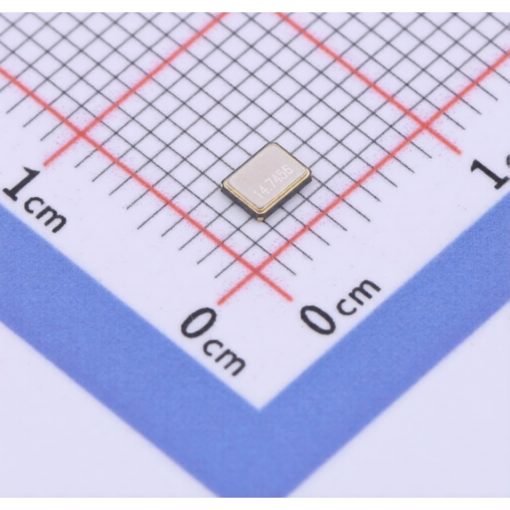

SMD Crystal Oscillator 14.7456MHz 4Pin
The SMD Crystal Oscillator 14.7456MHz 4Pin is a compact and high-precision clock source designed for digital circuits requiring stable and reliable timing signals. This oscillator integrates a crystal resonator and oscillator circuit into a single surface-mount package, providing a consistent frequency output without the need for external components. It is suitable for use in communication equipment, embedded systems, and various digital electronics where timing accuracy is critical.
Features:
- Stable 14.7456MHz fixed frequency output.
- Integrated crystal oscillator circuit for easy implementation.
- Compact SMD 4-pin package for space-saving PCB design.
- High frequency stability and reliability.
- Low power consumption and efficient operation.
Specifications:
| Parameter | Value |
|---|---|
| Nominal Frequency | 14.7456MHz |
| Frequency Tolerance (at 25°C) | ±10ppm |
| Frequency Stability | ±20ppm |
| Load Capacitance | 20pF |
| Equivalent Series Resistance (ESR) | 60Ω |
| Drive Level | 100µW |
| Shunt Capacitance | 5pF |
| Operating Temperature Range | -40°C to 85°C |
| Storage Temperature Range | -55°C to 125°C |
| Aging (First Year at 25°C) | ±3ppm |
| Insulation Resistance | 500MΩ |
| Package Type | 3225-4P |

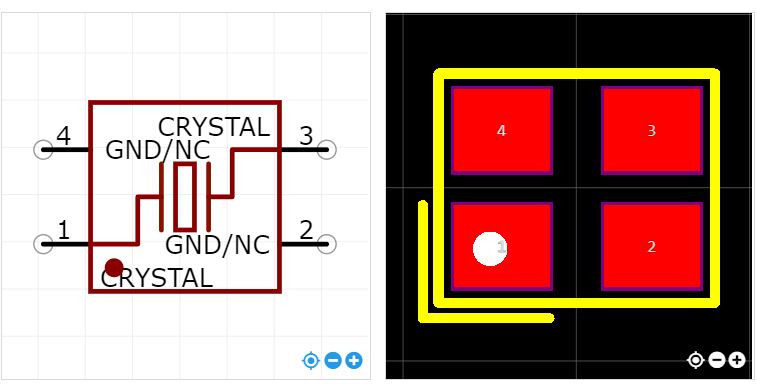

Foot print:
Applications:
- Clock source for microcontrollers and processors.
- Timing in UART and serial communication interfaces.
- Frequency reference in wireless modules.
- Oscillator circuits in consumer electronics.
- Industrial control systems requiring stable timing.
- Automotive electronics for sensor synchronization.
Package Include:
1x SMD Crystal Oscillator 14.7456MHz 4Pin
