SMD Fuse Fast Blow 250V 20A WT-2410-20A
The SMD Fuse Fast Blow 250V 20A WT2410-20A is a surface-mount, fast-acting fuse designed to provide reliable overcurrent protection in electronic circuits. This fuse features a current rating of 20A and a voltage rating of 250V, making it ideal for high-current applications where rapid disconnection is required to prevent damage to sensitive components
Features:
- Very fast-acting
- Small size
- Wide range of current rating available
- Wide operating temperature range
- Low temperature rating
- RoHS compliant and Halogen Free
Specifications:
| PARAMETER | VALUE |
|---|---|
| Current Rating | 20A |
| Voltage Rating | 250VAC/DC |
| Response Time | Fast-Acting |
| Breaking Capacity | 200A at 250VAC |
| Operating Temperature | -55°C to 125°C |
| Body Material | Ceramic Tube |
| End Cap Material | Silver |
|

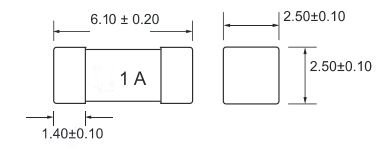

Package Size |
2410 |
Applications:
- LED lighting.
- LCD backlight inverter.
- PC server .
- Wireless base station.
- Digital camera.
- Notebook PC.
- Portable Devices.
- Cooling fan system.
- White goods.
- Industrial equipment.
Documents:
| Document Type | Link |
|---|---|
| Datasheet | WT-2410-20A |
| Certifications | RoHS |
