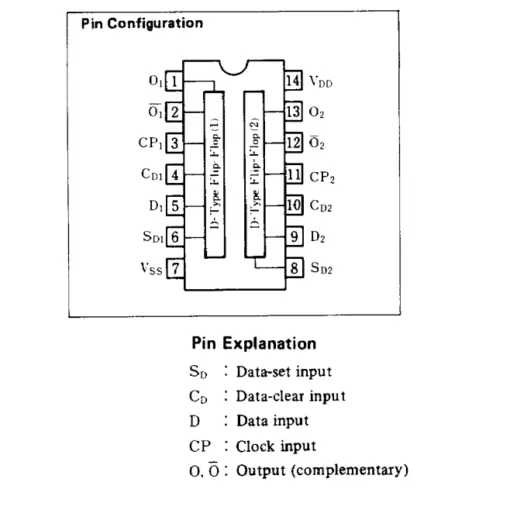

MN4013B Specifications
| Logic IC Type | D FLIP-FLOP |
| Sub Category | FF/Latches |
| JESD-30 Code | R-PDIP-T14 |
| Number of Functions | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Prop. Delay@Nom-Sup | 405.0 ns |
| Surface Mount | NO |
| Technology | CMOS |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Trigger Type | POSITIVE EDGE |
