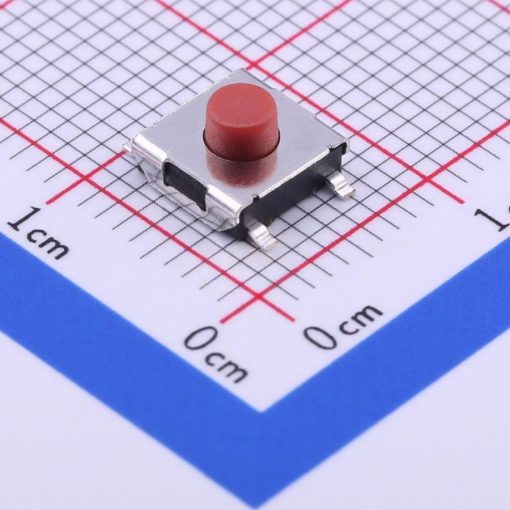

TS-E004 SMD Tactile Switch 4 Pin 6.2×6.2×4.3 mm
The TS-E004 SMD Tactile Switch 4 Pin 6.2×6.2×4.3 mm is a single-pole, single-throw (SPST) momentary pushbutton designed for surface-mount assembly. It features a durable red actuator, four gull‑wing terminals for reliable PCB soldering, and provides crisp tactile feedback. Engineered for both consumer and industrial electronics, it ensures consistent performance under repeated actuation up to 50 000 cycles.
Features
- Compact 6.2 × 6.2 ×4.3 mm SMD footprint for high-density PCB layouts.
- SPST normally‑open contact configuration with four gull‑wing pins.
- Rated 50 mA at 12 V DC for low‑power signal switching.
- Insulation resistance ≥ 100 MΩ at 500 V DC.
- Withstand voltage AC 250 V, 50 Hz for 1 minute.
- Contact resistance ≤ 100 mΩ after 1.5–2× operating force test.
- Total travel 0.3 ± 0.1 mm with operating force 250 ± 30 gf.
- Contact strength 5 N for 5 s in any direction without performance degradation.
- Mechanical life of 50 000 cycles at 30–50 cycles/min.
- Operating temperature range –25 °C to +70 °C.
Specifications
| Parameter | Value |
|---|---|
| Package Dimensions | 6.2 mm × 6.2 mm × 4.3 mm |
| Contact Configuration | SPST (1 NO), 4‑pin gull‑wing |
| Contact Rating | 50 mA @ 12 V DC |
| Insulation Resistance | ≥ 100 MΩ @ 500 V DC |
| Withstand Voltage | AC 250 V, 50 Hz, 1 min |
| Contact Resistance | ≤ 100 mΩ |
| Total Travel | 0.3 ± 0.1 mm |
| Operating Force | 250 ± 30 gf |
| Contact Strength | 5 N for 5 s |
| Mechanical Life | 50 000 cycles (30–50 cpm) |
| Operating Temperature Range | –25 °C to +70 °C |
Dimensions
Footprint
Applications
- User input buttons on handheld and portable devices.
- Control panels in consumer electronics and appliances.
- Test equipment and instrumentation front‑panels.
- Automotive dashboards and remote controls.
- Wearable gadgets or IoT devices requiring low-profile switches.
