SMD USB Female Connectors KH-TYPE-C-6Pin
The SMD USB Female Connector KH-TYPE-C-6Pin is a high-performance USB Type-C connector designed for seamless data and power transmission in modern electronic devices. This 6-pin female connector is rated for 5V DC and 2A, making it ideal for charging and data transfer applications in smartphones, laptops, tablets, and other portable electronic devices.
Features:
- 6-pin design for Type-C USB connections.
- 5V DC voltage rating, 2A current rating.
- Durable design with 10,000 mating cycles.
- Low contact resistance: 50mΩ max per pin.
Specifications:
| Parameter | Value |
|---|---|
| Current Rating: | 2A |
| Voltage Rating: | 5V DC |
| Mating Force: | 0.5~2.0kgf |
| Un-mating Force: | 0.6~2.0kgf |
| Contact Resistance: | 50mΩ max/pin |
| Insulation Resistance: | 100MΩ min |
| Withstand Voltage: | 100V AC for 1 min |

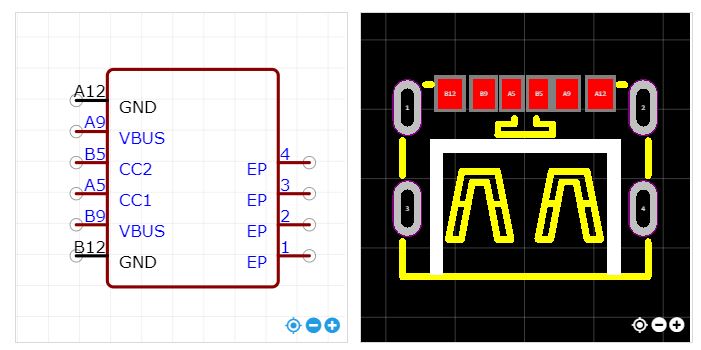

Pin Configuration & Foot Print:
Applications:
- USB Type-C connections for data and power transfer.
- Ideal for smartphones, laptops, and tablets.
- USB hubs, docking stations, and chargers.
- High-speed data transfer devices.
Package Contents:
- 1x SMD USB Female Connectors KH-TYPE-C-6Pin
