| Product Attribute | Attribute Value |
| Product Category: | Logic Gates |
| Product: | Single-Function Gate |
| Logic Function: | OR |
| Logic Family: | LS |
| Number of Gates: | 4 Gate |
| Number of Input Lines: | 8 Input |
| Number of Output Lines: | 4 Output |
| High Level Output Current: | – 0.4 mA |
| Low Level Output Current: | 8 mA |
| Propagation Delay Time: | 14 ns |
| Supply Voltage – Max: | 5.25 V |
| Supply Voltage – Min: | 4.75 V |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Mounting Style: | SMD/SMT |

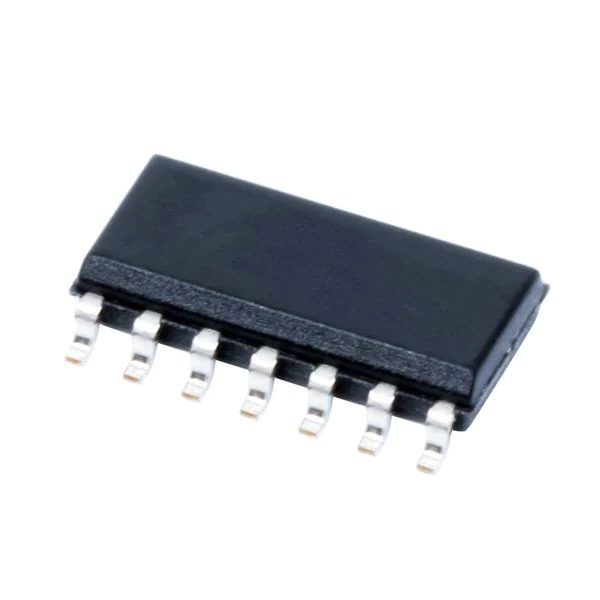

| Package/Case: | SOIC-14 |
| Number of Pins: | 14 |
SN74LS32DR Datasheet
